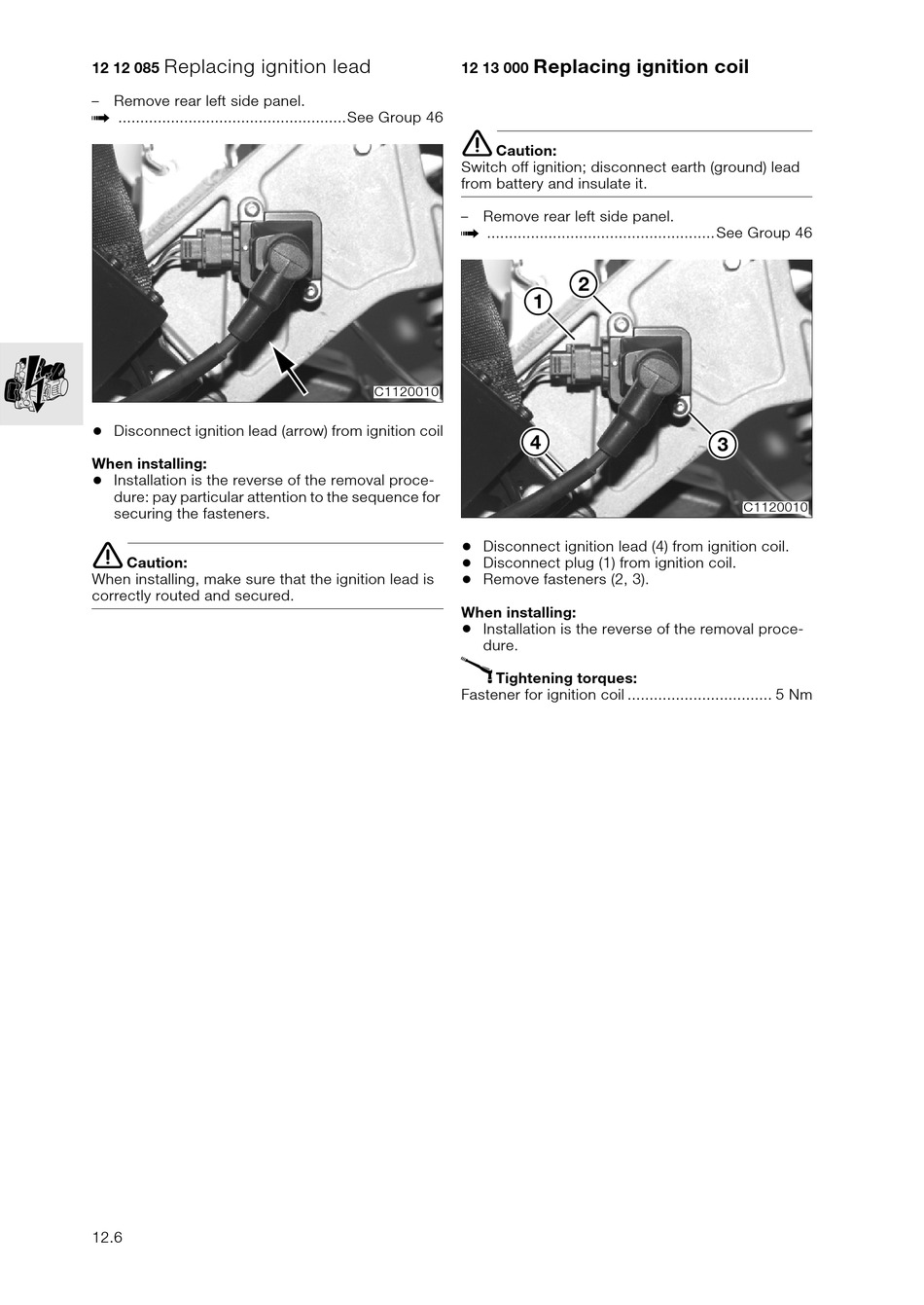

Replacing ignition lead

12 12 085
– Remove rear left side panel.
....................................................See Group 46
a
•
Disconnect ignition lead (arrow) from ignition coil
When installing:
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the sequence for
securing the fasteners.
e
Caution:
When installing, make sure that the ignition lead is
correctly routed and secured.
12.6

Replacing ignition coil

12 13 000
e
Caution:
Switch off ignition; disconnect earth (ground) lead
from battery and insulate it.
– Remove rear left side panel.
....................................................See Group 46
a
1
C1120010
4
•
Disconnect ignition lead (4) from ignition coil.
•
Disconnect plug (1) from ignition coil.
•
Remove fasteners (2, 3).
When installing:
•
Installation is the reverse of the removal proce-
dure.
X
Tightening torques:
Fastener for ignition coil ................................. 5 Nm
2
3
C1120010
