Preparations

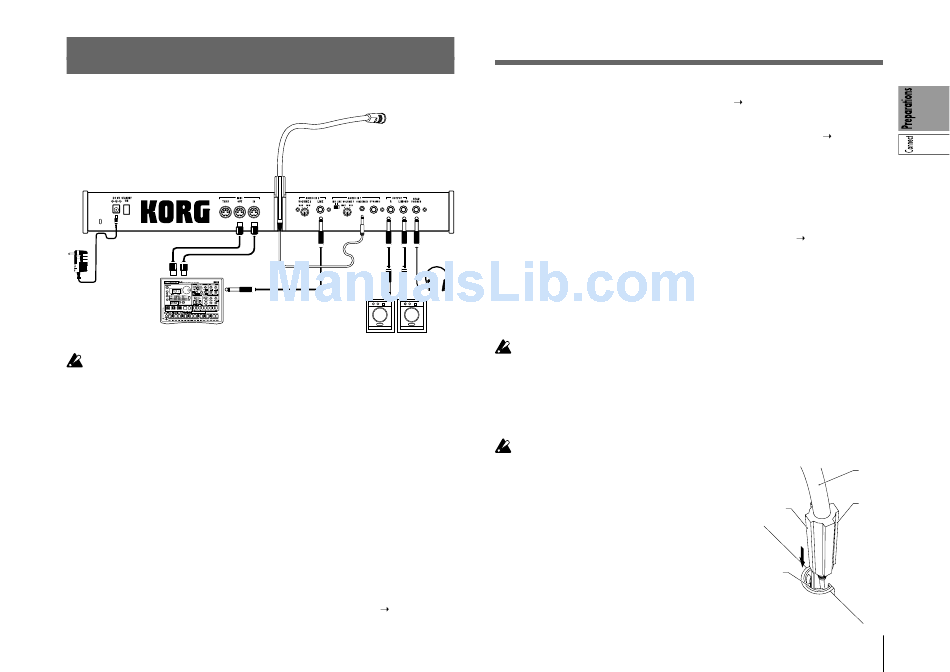

The diagram below shows basic connections for the microKORG. Make substitu-
tions as appropriate for your equipment.
MIDI OUT
MIDI IN
E M - 1
AC adapter (included)
Connect to an AC outlet
TAP
1 2 3 4 5 7 8 9 10 11 12 13 14 15 16
MIDI keyboard, tone generator module, rhythm machine etc.
Be sure to turn off the power of all devices before making connections. Failing
to take this precaution may cause your speaker system to be damaged, or may
cause malfunctions.

Connections from the audio outputs

Connect the microKORG's OUTPUT L/MONO and R jacks to the input jacks of
your mixer or powered monitor system.
In order to take full advantage of the potential of the microKORG, we recommend
that you use stereo outputs.
If you are making monaural connections, use the L/MONO jack.

Connections to the audio inputs

If you want to use the microKORG as a vocoder, connect a mic or other audio
source to AUDIO IN 1, and use that audio source as the modulator ( p.10). If you

Connections

want to use an external sequencer, rhythm machine, or audio source as the carrier
of the vocoder, connect that device to AUDIO IN 2 ( p.34).
If you want to process the waveform of a synthesizer or sampler, connect a mic or
Included mic
the output jack of your external device to the AUDIO IN 1 and 2 jacks ( p.21).

Connections to MIDI equipment/computers

The keyboard, and controllers etc. of the microKORG can be used to control an
external MIDI tone generator. Conversely, another MIDI keyboard or sequencer can
control the tone generator of the microKORG to produce sound. ( p.48)
Phones

Connecting the included mic

A mic for use with the vocoder is included with the microKORG. Here's how to
attach the included mic to the microKORG.
Powered monitors, etc.
Do not apply excessive force to the neck of the mic, or repeatedly bend it back
and forth any more than necessary. Doing so may cause malfunctions such as
breakage of the internal wiring.
Grasp the base of the included mic, align the protrusion of the mic with the slit
1
of the mic holder, and push it into the holder.
Do not use excessive force.
When removing the included mic, grasp it by the base and pull it out.
Turn the rear panel AUDIO IN VOLUME 1 knob
2
to the MIN position, and set the MIC/LINE switch
to the MIC position.
Connect the plug of the included mic to the
3
AUDIO IN 1 CONDENSER jack.
Neck
Mic base
Protrusion
Slit
