Remote Controls Check - Gilera GP 800 i.e. Service Station Manual

GP 800 i.e.
-Initial charge voltage equal to 0.3 ÷ 0.5 for Nominal capacity
- Charge time:
10 to 12 h recommended
Minimum 6 h
Maximum 24 h
3) Constant current battery charge mode
- Charge current equal to 1/10 of the battery rated capacity
- Charge time: Maximum 5 h

Remote controls check

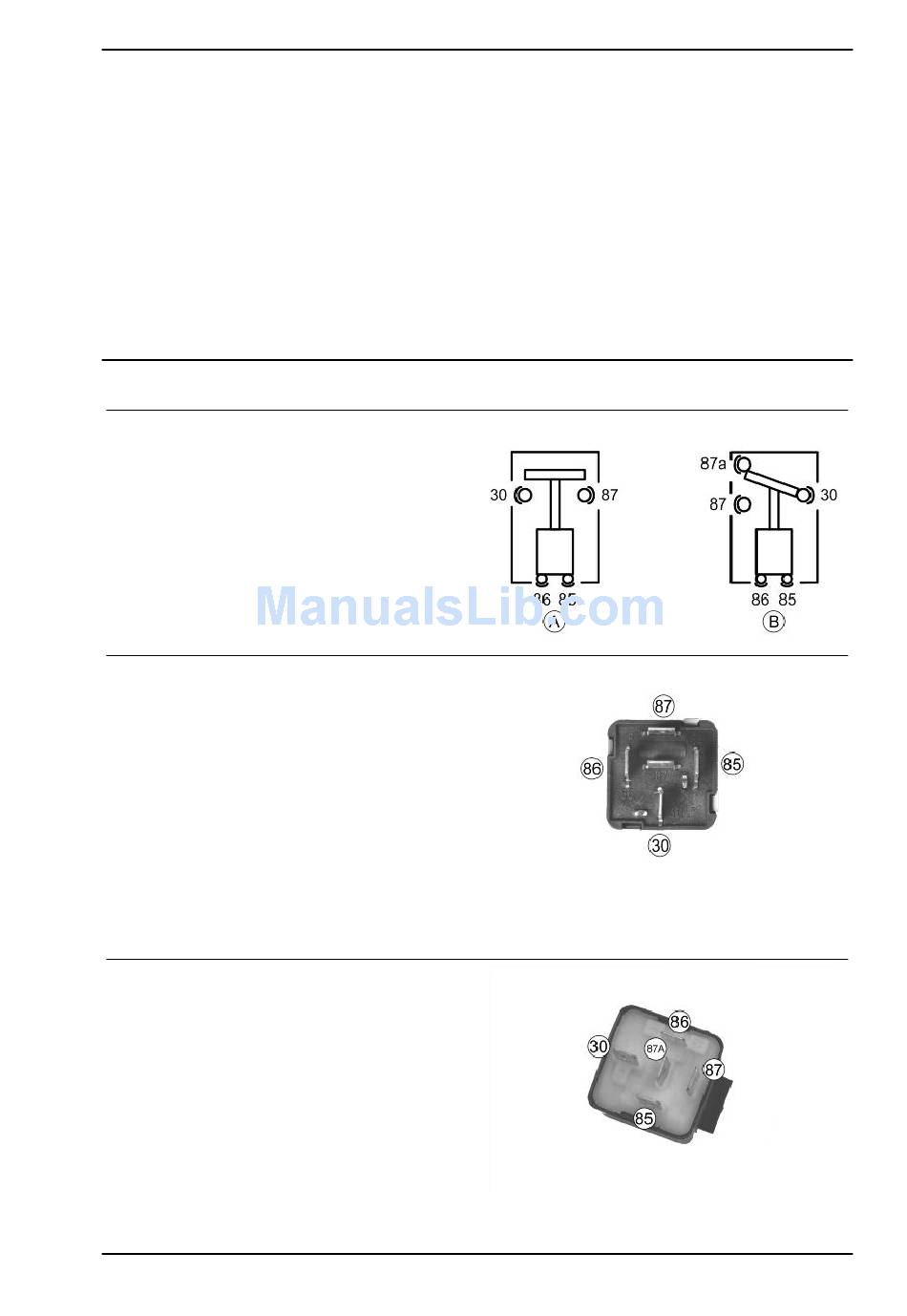

There are two types of remote controls in the elec-
trical system, those operating as "circuit breakers"
«A», and those operating as a "switches" «B».
CHECKING REMOTE CONTROLS «A» OPER-
ATING AS CIRCUIT BREAKERS
1) Check that, given regular conditions, there is no
continuity between terminals 30 and 87.
2) Apply 12V voltage to power terminals 85 and 86
of the remote control.
3) With the remote control powered, check that
there is continuity between terminals 30 and 87.
4) If these conditions are not fulfilled, the remote
control is damaged and must be replaced.
CHECKING REMOTE CONTROLS «B» OPER-
ATING AS SWITCHES
1) Check that, given regular conditions, there is no
continuity between terminals 30 and 87 but that
there is continuity between terminals 30 and 87a.
2) Apply 12V voltage to power terminals 85 and 86
of the remote control.
3) With the remote control powered, check that
there is continuity between terminals 30 and 87.
Electrical system
ELE SYS - 49
