Set-Up Guide

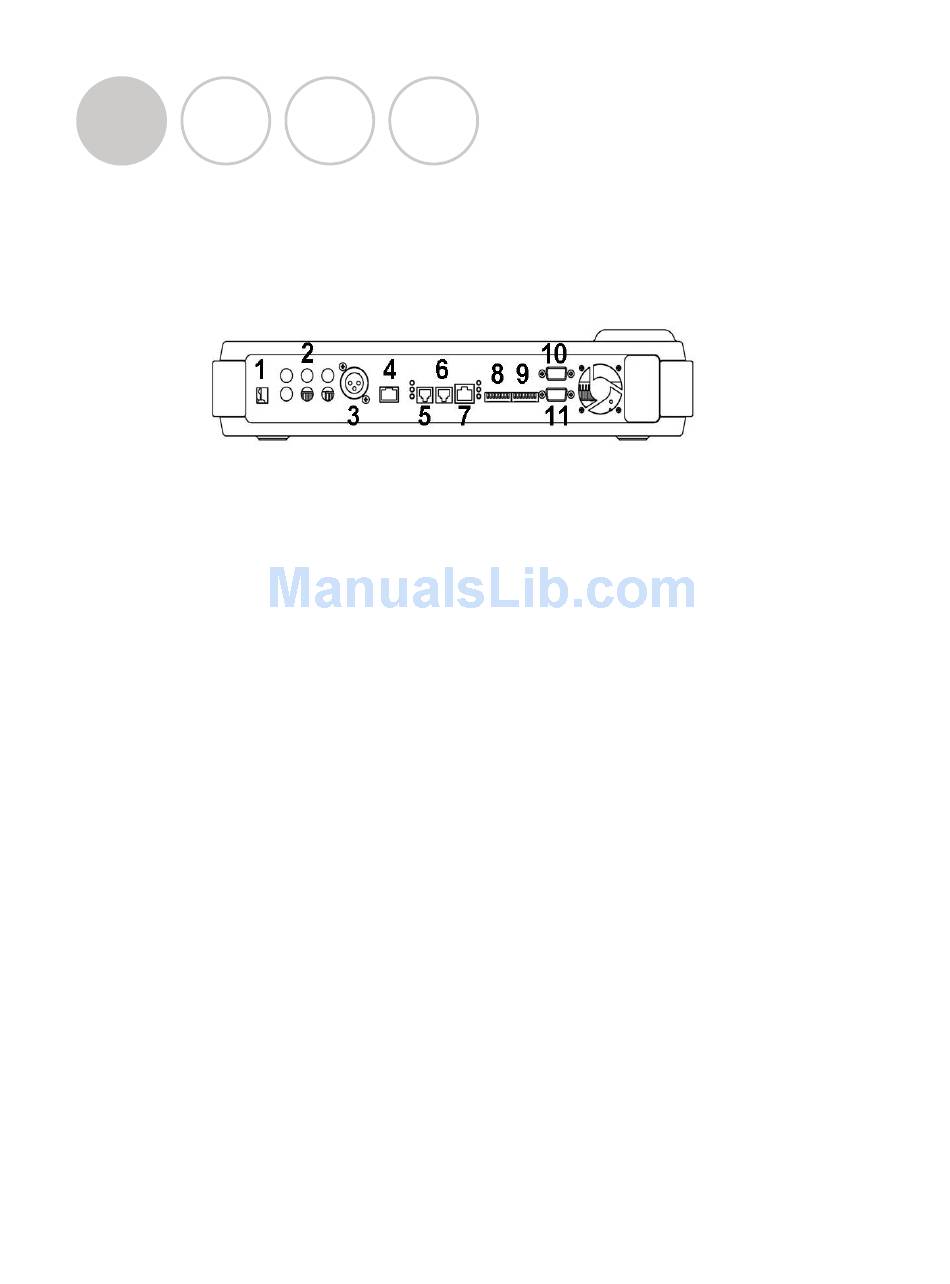

Fusion Back Panel

1. Power
2. 6 RCA Plugs
•
•
•
•
•
•
3. Conference Out XLR (Microphone level)
4. Network RJ 45 (Revolabs use only)
5. Telephone Line-in RJ11
6. Telephone Set-in RJ11
7. Audio Control RJ45 (Revolabs use only)
8. Programming Port: LEFT DIP Switches 1-8 (refer to page 18)
9. Programming Port: RIGHT DIP Switches 1-8 (Revolabs Use Only)
10. DB9 (Revolabs use only)
11. IR Remote DB9
Page 6
AUX IN (for auxiliary input devices)
AUX OUT
RECORD OUT (for audio recording devices)
ROOM OUT
CONFERENCE IN
CONFERENCE OUT
