Note: Microphones must be fully charged
and paired to the Charger Base
prior to first use.
1
I I I I nstallation and Operation
nstallation and Operation
nstallation and Operation
nstallation and Operation
Guide
Guide
Guide
Guide
xTag
Wireless Microphone System
Models 02-DSKSYS-D, 04-DSKSYSEU-D
™
Revolabs, Inc.
Revolabs, Inc.
Revolabs, Inc.
Revolabs, Inc.
Advertisement
Table of Contents
Related Manuals for Revolabs xTag 02-DSKSYS-D
Summary of Contents for Revolabs xTag 02-DSKSYS-D

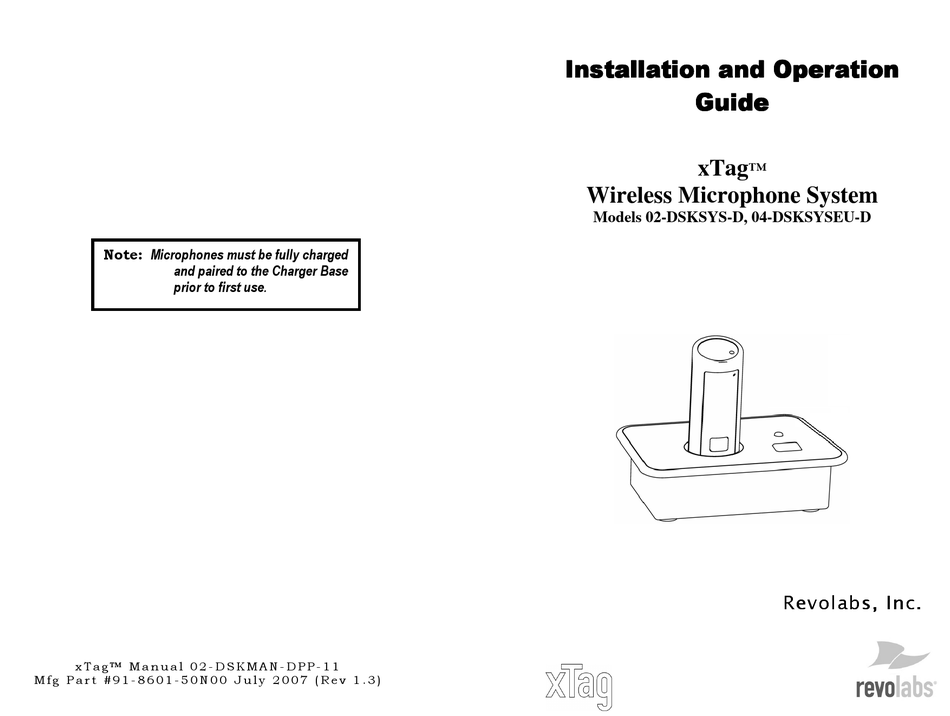

- Page 1 Operation nstallation and Operation Guide Guide Guide Guide xTag ™ Wireless Microphone System Models 02-DSKSYS-D, 04-DSKSYSEU-D Note: Microphones must be fully charged and paired to the Charger Base prior to first use. Revolabs, Inc. Revolabs, Inc. Revolabs, Inc. Revolabs, Inc.
- Page 2 Wireless Microphone 0.9” (2.4 cm) x 0.8” (1.95 cm) x 2.6” (6.68 cm), 0.05 lb (0.02 kg) Shipping Weight 1.5 lbs (0.68 kg) Radio Frequency 02-DSKSYS-D 1.92 to 1.93 GHz (UPCS North America) 04-DSKSYSEU-D 1.88 to 1.90 GHz (DECT EU) Connectors Desktop Charger Base Mini USB –...
- Page 3 Warranty Warranty Warranty Revolabs, Inc. warrants this product to be free of manufacturing defects. Repair or replacement of any defective part or unit (at the discretion of the Seller) will be free of charge for the period of 90 days.
- Page 4 LED Status Indications The following LED patterns are shown on either the Microphone or the Charger Base. LED pattern Meaning Solid GREEN Confirmation of power-up or battery (Microphone only) reaching full charge. Solid RED Pairing mode, or confirmation of powering-down, or battery charging. GREEN flash every Microphone connected and un-muted.
-
Page 5: Table Of Contents
System Functions System Functions Table of Contents Safety and General Information ............. 1 Introduction ..................4 System Components ..............5 System Functions Revolabs xTag ™ Charger Base ........... 5 Charger Wireless Mute Button ................5 Base Microphone Action LED Status LED Status USB Connection ................ -
Page 6: Safety And General Information
FCC Notice to Users Users are not permitted to make changes or modify the equipment in any way. Changes or modifications not expressly approved by Revolabs, Inc. could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject... -
Page 7: Export Law Assurances
Pairing the Microphone to the Charger Base Restricted use with certain medical devices Hearing Aids Some devices may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. - Page 8 This equipment has been approved in accordance with Council Directive 1999/5/EC “Radio Equipment and telecommunications Equipment.” Conformity of the Equipment with the guidelines below is attested by the CE mark. Model Numbers: 04-DSKCHGEU-D Revolabs xTag™ Charger • 04-DSKMIEU-D Revolabs xTag Microphone Standards to which Conformity is declared: •...
-
Page 9: Introduction
Introduction Introduction Introduction Introduction Warning: Exposing the batteries to fire may result in an explosion. • • Note:... -
Page 10: System Components
System Components System Components System Components System Components • Note: • • • • • xTag xTag Revolabs Revolabs Revolabs Revolabs xTag xTag ™ ™ ™ ™ Charger Base Charger Base Charger Base Charger Base Note: When to Charge Recharging... -
Page 11: Usb Connection
Adjusting the Volume MUTE Note: USB Connection Note: xTag xTag Installing the Installing the xTag xTag ™ ™ ™ ™ USB USB System System Installing the Installing the System System Computer Software Set-up... - Page 12 Note: Note:...
-
