Lifesize Installation - Revolabs Fusion Setup Manual

Set-Up Guide
Lifesize® Installation (Lifesize Team shown for example)
This information is meant to be illustrative only. Consult your Lifesize Videoconferencing System
Administrator Manual for specific instructions.
Step1

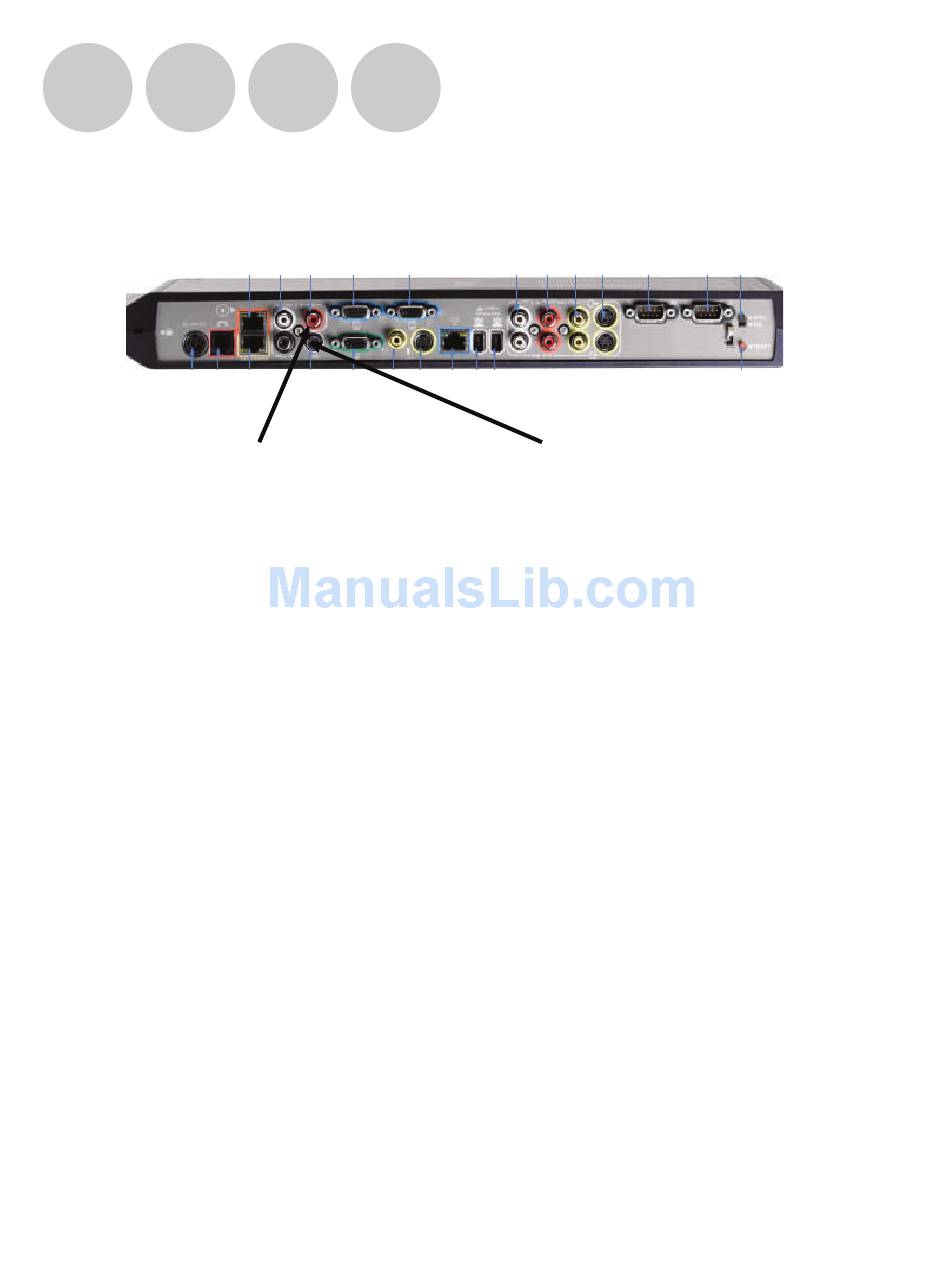

1. Plug the red RCA connector on one end of Cable C into Lifesize video-station <Audio Out 1>,
and then plug the red RCA connector on the other end into the Fusion Base Station <Conf In>.
2. Plug the black RCA connector on one end of Cable C into Lifesize video-station <Audio In>,
and then plug the black RCA connector on the other end into the Fusion Base Station <Conf
Out>.
To configure the Lifesize system:
Select the button from the main screen to access the System menu.
Select the Administrator Preferences settings.
Enter the administrator password and press OK (if needed).
Select the Audio settings.
Confirm or modify the following settings:
•
Voice Call Audio - Output
•
Line Input - Enabled
•
Line In to Line Out - Disabled
•
Line In Acoustic Echo Canceller - Disabled
•
Press OK to save changes.
Page 14
Step 2
