REVOLABS EXECUTIVE HD™
Wireless Microphone System
Models: 01-HDEXEC, 01-HDEXEC4, 03-HDEXECEU and 03-HDEXEC4EU
Installation and Operation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 03-HDEXEC4EU and is the answer not in the manual?

Questions and answers

Related Manuals for Revolabs 03-HDEXEC4EU

Summary of Contents for Revolabs 03-HDEXEC4EU

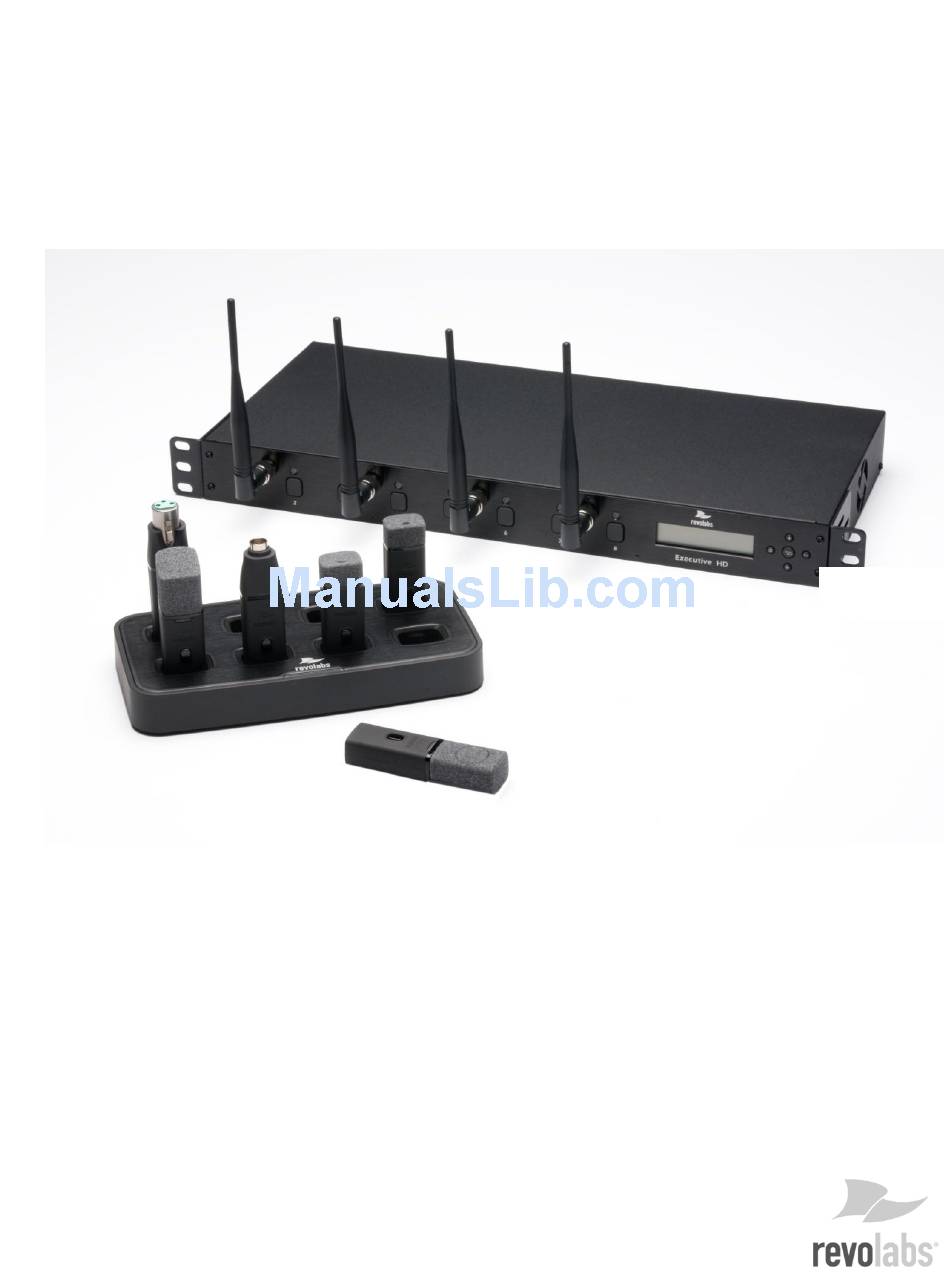

  • Page 1 REVOLABS EXECUTIVE HD™ Wireless Microphone System Models: 01-HDEXEC, 01-HDEXEC4, 03-HDEXECEU and 03-HDEXEC4EU Installation and Operation Guide...
  • Page 2 © 2009 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Revolabs, Inc. Product specifications are subject to change without notice. R e v o l a b s E x e c u t i v e H D ™ M a n u a l 0 1 - H D E X E C M A N - P A P - 1 1 M a r c h 2 0 1 0 ( R e v 1 .

  • Page 3: Table Of Contents

    WEEE Notification: ........................... 2 2003/11/EC & 2002/95/EC ―RoHS Compliance Directive‖: ..............2 Introduction..............................3 System Components ..........................3 Installing the Revolabs Executive HD ™ Base Station ................. 4 Controls and Connections: ........................5 Configuring the Executive HD Base Station ....................6 Using Multiple Revolabs Executive HD Systems Together ..............

  • Page 4: Safety And General Information

    Safety and General Information Please read the following information to ensure safe and efficient use of your Revolabs system. FCC User Information FCC Registration Number: 0014898290 FCC ID: T5V01HDEXEC Revolabs Executive HD™ Base Station FCC ID: T5V01HDEXEMIC Revolabs Executive HD ™ Microphone FCC Notice to Users Users are not permitted to make changes or modify the equipment in any way.

  • Page 5: Export Law Assurances

    Due to the UPCS frequencies used, this product is licensed for operation only in the United States of America and Canada. 03-HDEXECEU and 03-HDEXEC4EU (4 & 8 channel systems respectively) European Union Usage Restriction Due to the DECT frequencies used, this product is licensed for operation only in the European Union countries.

  • Page 6: Introduction

    The Revolabs Executive HD ™ Wireless Microphone System has 20k Hz audio performance, maximum microphone density and user interface/control including an Ethernet interface. The Executive HD system is a unique marriage of innovative technology and ergonomic design, employing Multi-Carrier Time Division Multiple Access and Time Division Duplex (MC/TDMA/TDD) radio transmissions both to and from the microphone.

  • Page 7: Installing The Revolabs Executive Hd ™ Base Station

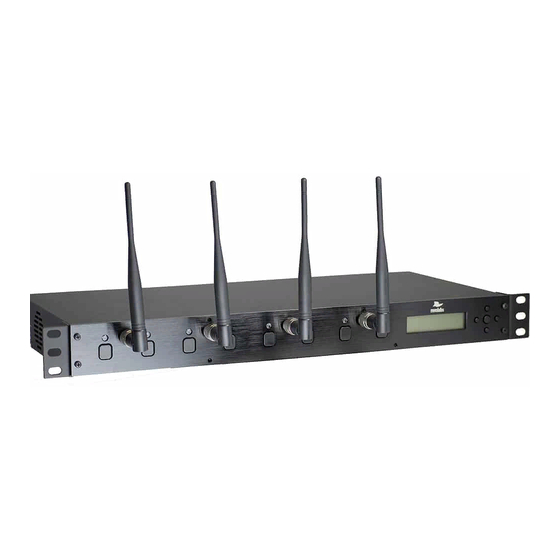

    Installing the Revolabs Executive HD ™ Base Station The Revolabs Executive HD ™ Base Station, shown below in front and rear panel views, manages wireless audio signal processing, pairing, and muting between the Revolabs microphones and the Base Station.

  • Page 8: Controls And Connections

    Configuration DIP Switches (see Section Using the Rear Panel Configuration DIP switches) Mini-Phoenix Connectors: Balanced Audio in and out connections (4 or 8 channels, in and out). The Revolabs Executive HD ™ Base Station is designed to be installed into a standard 19‖ AV rack using the attached rack ears.

  • Page 9: Configuring The Executive Hd Tm Base Station

    Note: The Executive HD System is not compatible with the Solo Systems. The HD and Solo Wireless Microphones and Charger Bases are not interchangeable. The Systems cannot be cabled together; therefore they should not be installed within the same area as it will result in interference. Please contact support@revolabs.com for design recommendations. - 6 -...
  • Page 10 If more than one Revolabs Executive HD ™ Base Station is used in an area, each unit needs to be interconnected with a synchronization (BUS) cable using a standard 3.5mm mini-Phoenix connector and any 26AWG or better shielded cable. The maximum distance from the Primary unit to any Secondary device must not exceed 300‘...
  • Page 11 recommended that no other DECT or DECT 6.0 products be used within operational range of the Executive HD system(s). - 8 -...

  • Page 12: Using The Rear Panel Configuration Dip Switches

    Each Revolabs Executive HD Base Station comes standard with the HD Control Panel which includes a limited group of controls and features. The Revolabs HD Gold Control Panel requires a 16 digit ‗unlock code‘ to access the additional features and functionality for each Executive HD Base Station.
  • Page 13 The Revolabs HD Control Panel can operate with either a locked or unlocked Executive HD Base Station. When the HD Control panel is connected to an unlocked Executive HD Base Station, the Gold features will then appear on the screen and be controllable by the user. All features mentioned below with a ‗*‘...
  • Page 14 Note: If the „Equipment List‟ does not appear after a network scan has been performed, no devices or network connections were found or the connection is not configured correctly. System - Set Box Name: A Box Name may be assigned as a Network ID for each device. This name will be displayed both on the front screen of the Base Station along with the IP address and on the device tab in the HD Control Panel Software.
  • Page 15 Executive HD Systems are field upgradable for the firmware portion of the Base Station and Microphones. The firmware must be sent to the Base station and Microphones separately using the HD Control Panel program. (See Updating the Revolabs HD Firmware for more information) Tools – Express Pair: The ―Express Pair‖...
  • Page 16 The Transmit Power of the Base Station can be adjusted to help reduce the operational radius of a Executive HD System in order to prevent interference from other Revolabs products, or from other devices operating in the same frequency. The options for transmit power are ‗0-7‘ with ‗0‘...
  • Page 17 This displays the current state of DIP switch #1 located on the rear panel of the Base Station. It will display either ‗Primary‘ or ‗Secondary‘ mode. Status Monitoring The Revolabs HD Control Panel monitors the Executive HD Base Station and Microphones. All status monitoring is located in the ‗Monitor‘ tab of the device window. Monitor – Microphone Lock:* Each microphone has individual lock capabilities.

  • Page 18: Using The Serial Control Processor (Rs-232 Or Ip)

    The Serial Control Processor allows the use of a third party control system or DSP to monitor and/or control the Executive HD Base Station and Microphones. The Executive HD Base Station must be configured for the correct ―Serial Control Processor‖ using the Revolabs HD Control Panel software. DB9 Pin-out:...
  • Page 19 Using the Executive HD Base Station with a Control System The Executive HD Base Station is capable of being monitored and controlled via any serial capable control system. The only logic communication that takes place between multiple Base Stations, via the ‗BUS‘...
  • Page 20 The following table represents the serial syntax of the Executive HD system. Any command marked with an asterisk will only function if the Base Station has Gold Enabled by entering that systems unlock code. (See Revolabs HD Gold Control Panel) Argument...
  • Page 21 When using the Base Station along with a ClearOne DSP, you must select the corresponding DSP product line from the ―Serial Control Processor‖ menu in the Revolabs HD Control Panel software. You must also set the RS-232 or Network settings of the Base Station to match the communication settings of the ClearOne DSP.

  • Page 22: Biamp Audia/Nexia

    When using the Base Station along with a Biamp DSP, you must select the corresponding DSP product line from the ―Serial Control Processor‖ menu in the Revolabs HD Control Panel software. You must also set the RS-232 or Network settings of the Base Station to match the communication settings of the Biamp DSP as well as select the ‗Audio Channels‘...

  • Page 23: Polycom Soundstructure

    When using the Base Station along with a Polycom SoundStructure, you must select the corresponding DSP product line from the ―Serial Control Processor‖ menu in the Revolabs HD Control Panel software. You must also set the RS-232 or Network settings of the Base Station to match the communication settings of the Polycom SoundStructure as well as select the ‗Audio...

  • Page 24: Using The Base Station Front Panel Display

    The LCD and menu buttons are designed to provide the system installer the ability to access certain configuration settings directly from the front panel instead of having to use the Revolabs HD Control Panel software. Navigation up...

  • Page 25: Using The Hd Wearable Wireless Microphones

    Using the HD Wearable Wireless Microphones The Revolabs HD Wearable Microphones, shown in the following figure, are paired to the Base Station and can be worn on the user‘s shirt pocket, lapel or on a lanyard. They provide high quality full duplex audio between each user and the conferencing or audio system.

  • Page 26: Using The Hd Omni-Directional Tabletop Wireless Boundary Microphones

    2. Mute button — press to mute, un-mute and pair microphone. 3. Audio jack — accepts a 2.5mm plug. 4. Charging port — docks to Revolabs HD Charger Bases. 5. Rubber feet — non-slip, vibration absorbing pads. 6. Acoustic Cover — protects delicate microphone element (non-removable).

  • Page 27: Using The Hd Directional Tabletop Wireless Boundary Microphones

    To use the HD Omni Tabletop Microphone: 9. Remove the microphone from the Charger Base to turn on and automatically mute the mic. (indicated by a flashing RED LED) 10. Omni Tabletop microphones can be centered on the table within 2 to 5 feet (0.6 to 1.5m) away from people speaking and do not need to be pointing any particular direction because they pick up sound from all directions.

  • Page 28: Using The Hd Xlr Microphone Wireless Adapter

    2. Rubber feet — non-slip, vibration absorbing pads. 3. Audio jack — accepts a 2.5mm plug. 4. Charging port — docks to Revolabs HD Charger Bases. 5. Mute button — press to mute, un-mute and pair microphone. 6. Acoustic Cover — protects microphone element (non-removable).
  • Page 29 1. Audio Out port — accepts the 2.5mm plug for the earpiece. 2. Charging Port — docks to all Revolabs HD Charger Bases. 3. Mute button — press to mute, un-mute and pair microphone. 4. LED display — visual status for mute, un-mute, and pairing.

  • Page 30: Using The Hd Wireless Adapter For Countryman Microphone

    The adapter turns on and mutes automatically when removed from Charger Base (flashing RED LED). The Microphone Adapter is attached to a Countryman Microphone with the specific cable designed for Revolabs. The HD Wireless Adapter for Countryman microphone supplies the necessary phantom power specifically for the Countryman microphone.

  • Page 31: Pairing Wireless Microphones To Base Station

    Pairing Wireless Microphones to Base Station Pairing creates a link between the HD wireless microphone and the Base Station, with a unique electronic serial number. When the microphone and Base Station have been previously paired, the mic will automatically try to connect to the same Base Station whenever it is lifted from the Charger Base.

  • Page 32: Revolabs Executive Hd Charger Base

    Important: The Lithium Polymer rechargeable batteries that power the microphones are not user serviceable. Please contact Revolabs (www.revolabs.com) or your AV service provider for replacement instructions and to assure the proper disposal method is used. Warning: Never dispose of batteries in a fire because they may explode.

  • Page 33: Updating The Revolabs Hd Tm Firmware

    Ethernet connection, and communication to the microphones is done through the Charger Base via Mini-USB cable. 1. Go to www.Revolabs.com, download the latest firmware file and save it to your PC. The firmware file must remain in its .zip format in order to function correctly.
  • Page 34 12. Select OK and watch the firmware process either on the Base Station front panel display or in the ‗monitor‘ tab in the Revolabs HD Control Panel program. The HD Control Panel will notify you when the process is complete.

  • Page 35: Revolabs Executive Hd ™ Indicator Leds

    Revolabs Executive HD ™ Indicator LEDs The following tables show activities associated with the various states shown by the LEDs: Equipment Use Microphone LED Base Station Meaning Channel LEDs Microphone in Charger Solid RED Charging in Progress Base Solid GREEN...

  • Page 36: Warranty

    Warranty Revolabs, Inc. warrants this product to be free of manufacturing defects. Repair or replacement of any defective part or unit (at the discretion of the Seller) will be free of charge for the period of one year. Any attempt by the user to alter the equipment, or equipment damaged by negligence, accident, or Acts of God voids this warranty.

  • Page 37: Specifications

    01-HDEXEC 16 channels maximum (2 systems) 01-HDEXEC4 16 channels maximum (4 systems) 03-HDEXECEU 24 channels maximum (3 systems) 03-HDEXEC4EU 24 channels maximum (6 systems) In Maximum Density mode (12Khz audio) 01-HDEXEC 32 channels maximum (4 systems) 01-HDEXEC4 32 channels maximum (8 systems)
  • Page 38 Security: 128-bit DSAA (DECT Standard Authentication Algorithm) authentication, 64 bit DECT Standard Cipher Included Accessories: 1 Earpiece with inline volume control and 1 Lanyard per Wearable Microphone Environmental Requirements: Temperature 40° to 105° F (5° to 40° C) operating Humidity 20% to 85% - 35 -...
  • Page 39 Index Mini-Phoenix Connectors, 5 Earpiece Jack, 21 On/Off Switch, 5 LED Display, 21 Adjusting the Volume, 22 Mute Button, 21 Base Station, 4 Pocket Clip, 21 Back Panel, 4 Microphones, 21 Pairing, 20, 27 Front Panel, 4 Channel LED indicators, 5 Power Cord Receptacle, 28 Charger Bays, 28 Power In Receptacle, 5...
  • Page 40 Note: Microphones must be fully charged and paired to the Base Station prior to first use. R e v o l a b s E x e c u t i v e H D ™ M a n u a l 0 1 - E X E M A N - P A P - 1 1 M a r c h 2 0 1 0 ( R e v 1 .
