Set-Up Guide

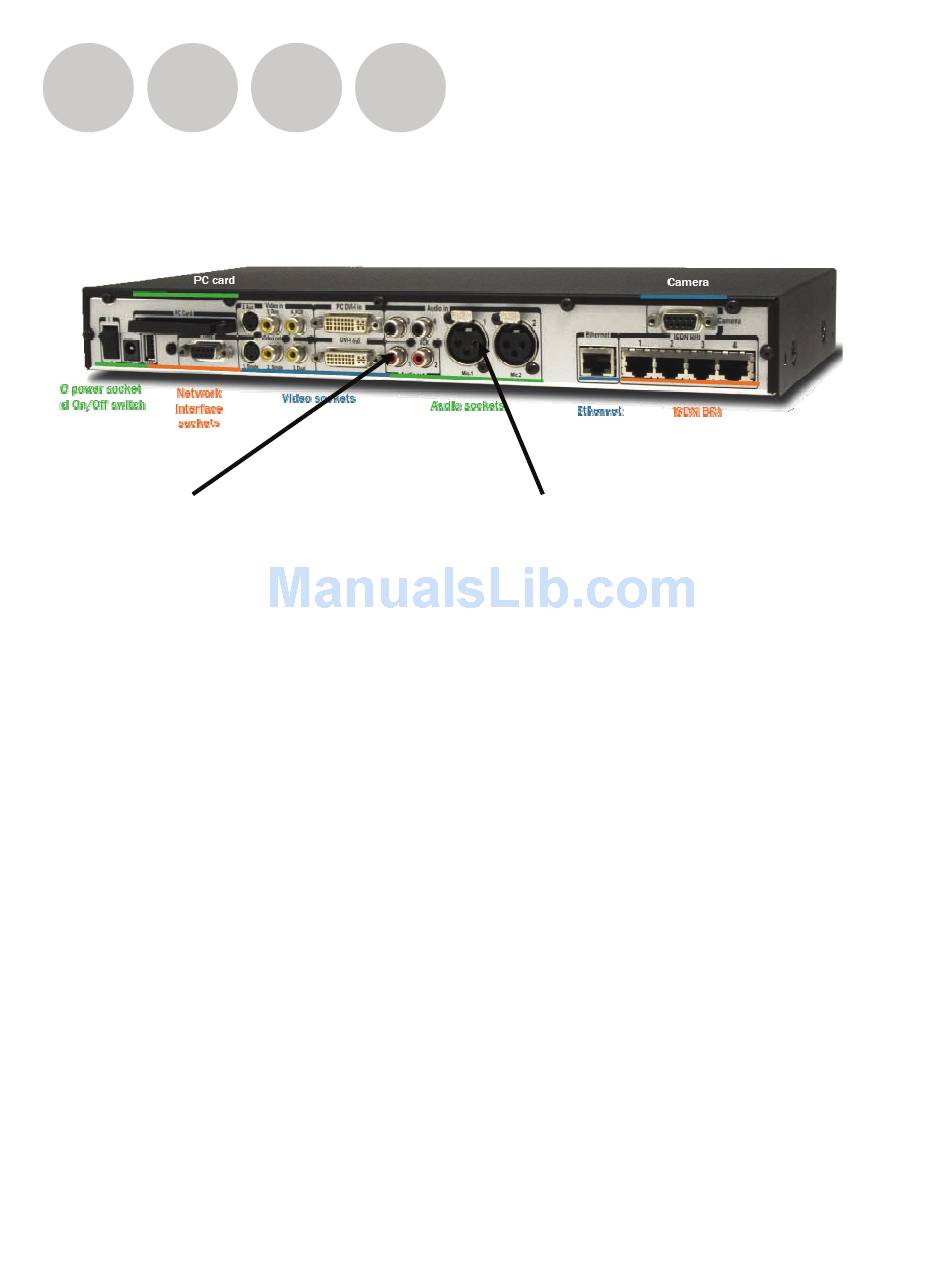

Tandberg™ Installation (Tandberg Edge 95 shown for example)
This information is meant to be illustrative only. Consult your Tandberg Videoconferencing
System Administrator Manual for the specific instructions.
Step 1
1. Plug the black RCA connector on one end of Cable C into Tandberg video-station
<Audio Out 1>, and then plug the black RCA connector on the other end into the Fusion
Base Station <Conf In>. The other RCA connector is not used.
2. Plug one XLR connector of Cable D, XLR to XLR, into Tandberg video-station <Mic 1
Input> and the other XLR connector into the Fusion Base Station Mic Level Output
<Conf Out (Mics)>.
To configure the Tandberg system:
Select the button from the main screen to access the System menu.
Go to Audio settings
Confirm or modify the following settings:
•
Input 1 - MIC
•
Output 1 - ON
•
Audio Leveling - OFF
•
Echo Canceller - OFF
Adjust the audio Input Level if necessary.
Speak into the Revolabs microphones that are connected to the audio line inputs.
The audio meter should peak at about 5 dB.
Page 16
Step 2
