Revolabs Fusion Setup Manual page 13

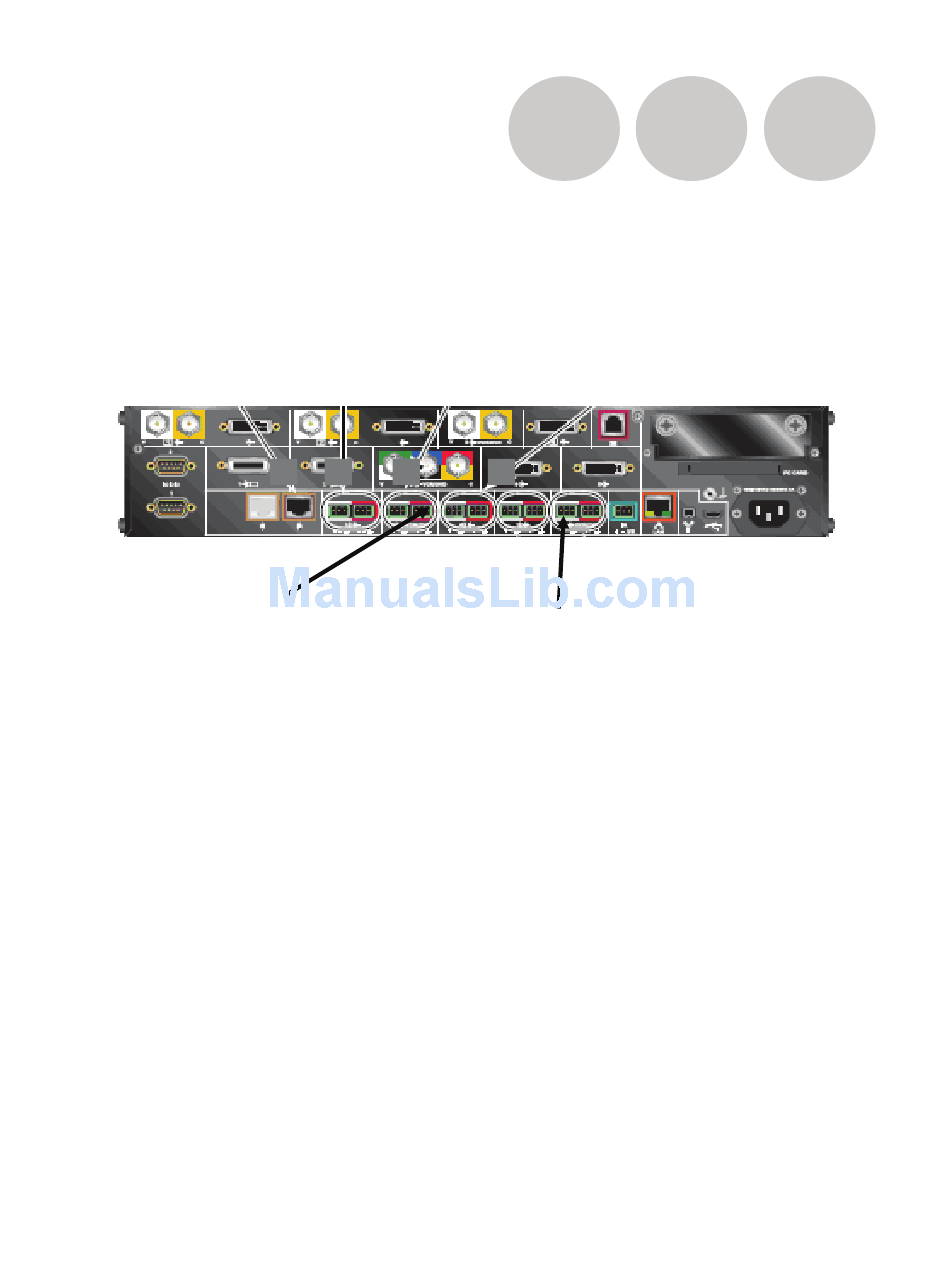

Polycom® Installation (Polycom HDX9000 shown for example)
This information is meant to be illustrative only. Consult your Polycom Videoconferencing
System Administrator Manual for specific instructions.
NOTE: Requires 2 special RCA Male to 3.5mm 3 pin connectors Revolabs Part #07-
POLHDX-01.
Step 1
1. Plug the 3.5mm 3 pin cable into the Polycom video-station <Audio In 1 Red>, and then plug
the RCA connector on the other end into the Fusion Base Station <Conf Out>.
2. Plug the 3.5mm 3 pin cable into the Polycom video-station <Audio Out 1 Red>, and then
plug the RCA connector on the other end into the Fusion Base Station <Conf In>.
configure the Polycom HDX 9000 Series system:
To
:
Select the button from the main screen to access the System menu.
Select the System / Admin settings.
Enter the administrator password and press OK (if needed).
Select the Audio settings.
Confirm or modify the following settings:
•
Input Type – Line Input
•
Input Type Level – 50%
•
Echo Canceller - OFF
•
Line Output Mode – Fixed
•
Line Output Level – 50%
•
Press OK to save changes.
Revolabs Fusion™
Step 2
Page 13
