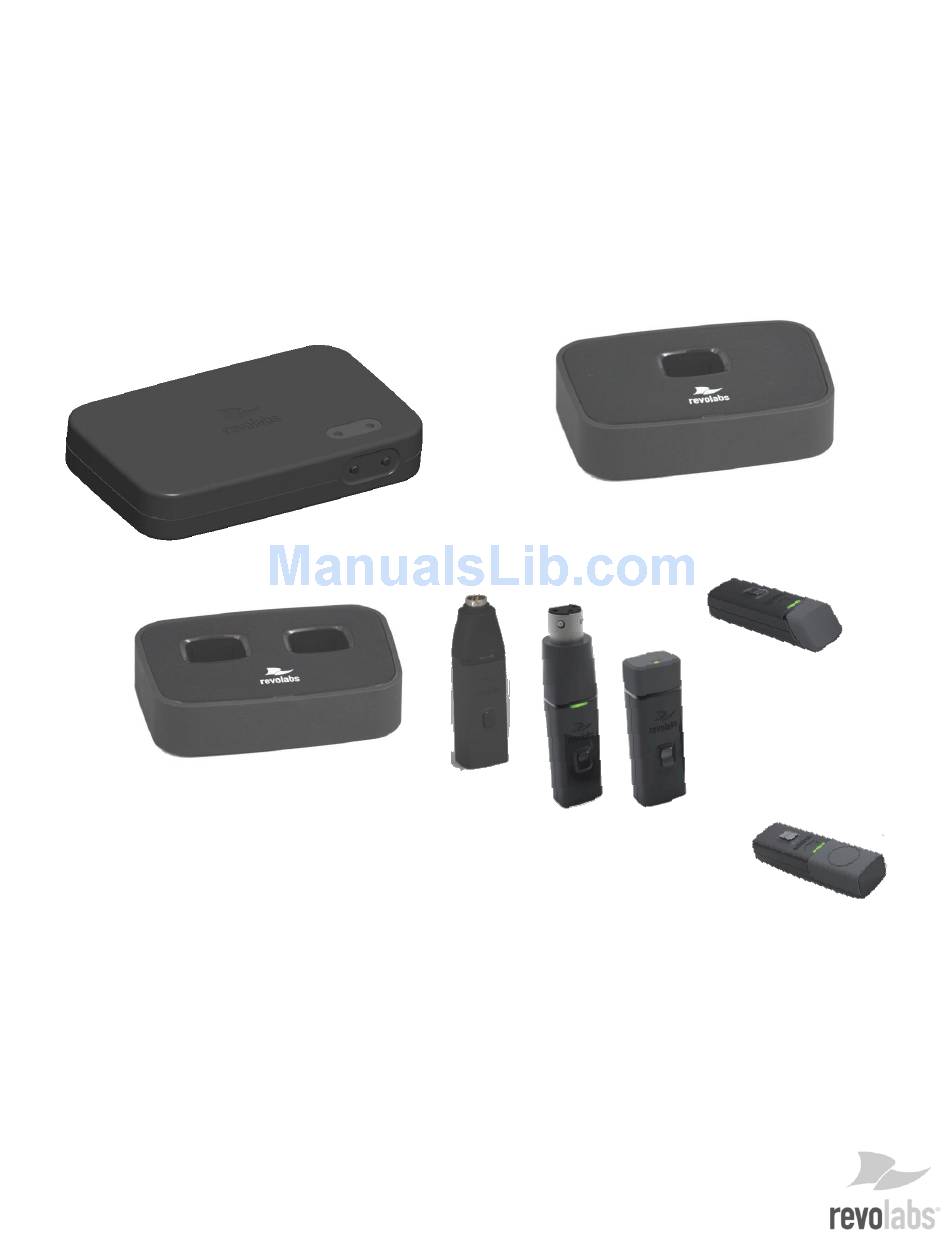

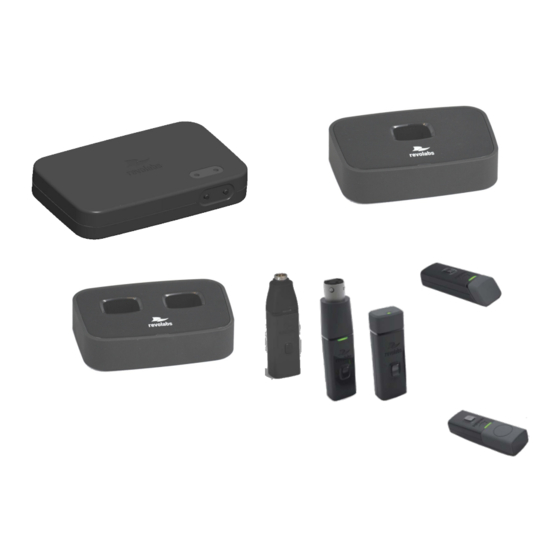

- Page 1 Revolabs HD™ Single/Dual Wireless Microphone System Models: 02-HDSGL, 02-HDDUAL, 04-HDSGLEU and 04-HDDUALEU User and Set-up Guide...
- Page 2 © 2009 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Revolabs, Inc. Product specifications are subject to change without notice. R e v o l a b s H D ™ S i n g l e & D u a l M a n u a l 0 1 - H D S G L M A N - P A P - 1 1 M a r c h 2 0 1 0 ( R e v 1 .
-
Page 3: Table Of Contents
Contents Safety and General Information ........................1 Introduction..............................3 System Components ..........................3 Installing the Revolabs HD ™ Base Station ....................4 Controls and Connections: ........................4 Configuring the Revolabs HD Base Station ....................5 Using the Rear Panel Configuration DIP Switches .................. 6 Revolabs HD Microphones and HD Microphone Adapters ................ -
Page 4: Safety And General Information
Safety and General Information Please read the following information to ensure safe and efficient use of your Revolabs system. FCC User Information FCC Registration Number: 0014898290 Revolabs HD™ Dual Base Station FCC ID: T5V02HDTRX FCC ID: T5V01HDEXEMIC Revolabs Executive HD ™ Microphone FCC Notice to Users Users are not permitted to make changes or modify the equipment in any way. -
Page 5: Export Law Assurances
Always obey the laws and regulations on the use of these products. 02-HDSGL and 02-HDDUAL (1 & 2 channel systems respectively) North America UPCS Usage Restriction Due to the UPCS frequencies used, this product is licensed for operation only in the United States of America and Canada. -
Page 6: Introduction
Introduction Congratulations on your purchase of a Revolabs Wireless Microphone System! This system utilizes 1.9 GHz DECT technology, and high band-width audio from multiple wireless microphones, enabling clear, reliable, un-tethered communications in recording, audio/video conferencing, speech recognition, VOIP communications, sound re-enforcement as well as many other environments requiring clear audio capture. -
Page 7: Installing The Revolabs Hd ™ Base Station
The Charger Base charges the HD Wireless Microphones and stores them when not in use. Installing the Revolabs HD ™ Base Station The Revolabs HD ™ Channel Base Station, shown below in front and rear panel views, manages wireless audio signal processing, pairing, and muting between the Revolabs microphones and the Base Station. -
Page 8: Configuring The Revolabs Hd Tm Base Station
NOTE: The USB port may exhibit static sensitivity. If the Base Station audio shuts down after handling, please power cycle the Base Station Note: The HD Single/Dual System is not compatible with any other Revolabs system and therefore cannot be installed in the same room. The HD and Solo Wireless Microphones and Charger Bases are not interchangeable. -
Page 9: Using The Rear Panel Configuration Dip Switches
Using the Rear Panel Configuration DIP Switches 1 2 3 4 5 6 7 8 Feature Off (Default) Switch Individual Output Mixing Mixed Output Outputs Low Pass Filter No LPF Audio Output Line Level Mic Level Level Individual Mute Mode No Mutes Mutes High... -
Page 10: Revolabs Hd Microphones And Hd Microphone Adapters
Using the HD Wearable Wireless Microphones The Revolabs HD Wearable Microphones, shown in the following figure, are paired to the Base Station and can be worn on the user’s shirt pocket, lapel or on a lanyard. They provide high quality full duplex audio between each user and the conferencing or audio system. - Page 11 Revolabs HD Wearable Microphones turn on and mute automatically when removed from Charger Base, to reduce noise while being attached. To use the HD Wearable Microphone: 1. Remove the microphone from the Charger Base. 2. Attach the microphone to clothing or to a lanyard, position microphone just above the sternum or breastbone, within 6 - 12 inches (15 –...
-
Page 12: Using The Hd Omni-Directional Tabletop Wireless Boundary Microphones
2. Mute button — press to mute, un-mute and pair microphone. 3. Audio jack — accepts a 2.5mm plug. 4. Charging port — docks to Revolabs HD Charger Bases. 5. Rubber feet — non-slip, vibration absorbing pads. 6. Acoustic Cover — protects delicate microphone element (non-removable). -
Page 13: Using The Hd Directional Tabletop Wireless Boundary Microphones
2. Rubber feet — non-slip, vibration absorbing pads. 3. Audio jack — accepts a 2.5mm plug. 4. Charging port — docks to Revolabs HD Charger Bases. 5. Mute button — press to mute, un-mute and pair microphone. 6. Acoustic Cover — protects microphone element (non-removable). -
Page 14: Using The Hd Xlr Microphone Wireless Adapter
1. Audio Out port — accepts the 2.5mm plug for the earpiece. 2. Charging Port — docks to all Revolabs HD Charger Bases. 3. Mute button — press to mute, un-mute and pair microphone. 4. LED display — visual status for mute, un-mute, and pairing. -
Page 15: Using The Hd Wireless Adapter For Countryman Microphone
Note: The Adapter does not provide phantom power or bias current so it cannot be used with condenser or electret microphones. 2. With the microphone attached, un-mute the Adapter by pressing and releasing the Mute button (confirm by a flashing GREEN LED). Note: If the microphone has an on-board mute switch, this switch must also be un-muted prior to use. -
Page 16: Pairing Wireless Microphones To Base Station
The adapter turns on and mutes automatically when removed from Charger Base (flashing RED LED). The Microphone Adapter is attached to a Countryman Microphone with the specific cable designed for Revolabs. The HD Wireless Adapter for Countryman microphone supplies the necessary phantom power specifically for the Countryman microphone. -
Page 17: Revolabs Hd Tm Single Or Dual Charger Base
Revolabs HD Single or Dual Charger Base When microphones are not in use, they should be properly inserted into the Revolabs HD Charger Base. It is important to ensure that all system microphones are inserted fully in the base so that charging will occur. -
Page 18: Updating The Revolabs Hd Tm Firmware
Revolabs HD Systems are field upgradable for the firmware portion of the Base Station and microphones. The firmware must be sent to the Base station using the Revolabs HD Single/Dual firmware loader. The software can be downloaded at www.revolabs.com/downloads. Updating the HD Single/Dual Channel Base Station and HD Microphones 1. -
Page 19: Revolabs Hd™ Indicator Leds
Revolabs HD™ Indicator LEDs The following tables show activities associated with the various states shown by the LEDs: Equipment Use Microphone LED Base Station Meaning Channel LEDs Microphone in Charger Solid RED Charging in Progress Base Solid GREEN Charging Complete... -
Page 20: Warranty
Warranty Revolabs, Inc. warrants this product to be free of manufacturing defects. Repair or replacement of any defective part or unit (at the discretion of the Seller) will be free of charge for the period of one year. Any attempt by the user to alter the equipment, or equipment damaged by negligence, accident, or Acts of God voids this warranty. -
Page 21: Specifications
Countryman Adapter: 1.5‖ (3.8 cm) x 0.8‖ (2.0 cm) x 3.3‖ (8.4 cm), 0.05 lb (0.02 kg) Shipping Weight 2.0 lbs (5.45 kg) Radio Frequency: 02-HDSGL 1.92 to 1.93 GHz (UPCS North America) (and other 02-HD* products) 04-HDSGLEU 1.88 to 1.90 GHz (DECT EU) -
Page 22: Index
Index Adjusting the Volume, 8 Mute Button, 7 Base Station, 4 Pocket Clip, 7 Back Panel, 4 Microphones, 7 Front Panel, 4 Pairing, 12 Channel LED indicators, 5 Power Cord Receptacle, 13 Channels, 5 Power In Receptacle, 5 Charger Bays, 13 Power Module, 13 Charging the Batteries, 13 Safety Information, 1... - Page 23 Note: Microphones must be fully charged and paired to the Base Station prior to first use. R e v o l a b s H D ™ S i n g l e & D u a l M a n u a l 0 1 - H D S G L M A N - P A P - 1 1 M a r c h 2 0 1 0 ( R e v 1 .
