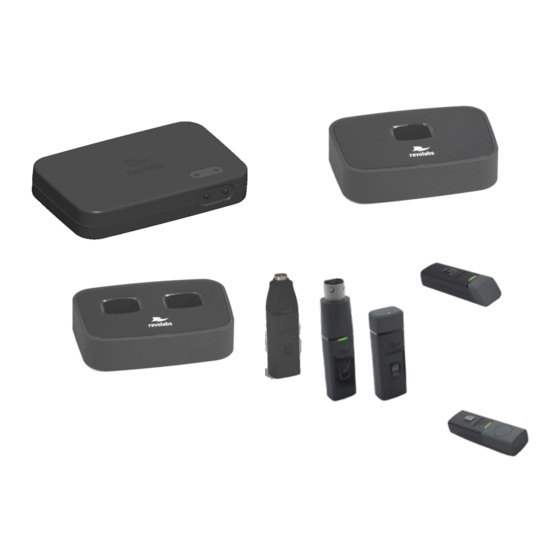

- Page 1 Revolabs HD™ Single/Dual Wireless Microphone System Models: 02-HDSGL, 02-HDDUAL, 04-HDSGLEU, 04-HDDUALEU, 04-HDSGLCN, 04-HDDUALCN User and Set-up Guide...
- Page 2 © 2010-2014 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Revolabs, Inc. Product specifications are subject to change without notice. R e v o l a b s H D ™ S i n g l e & D u a l M a n u a l 0 1 - H D S G L M A N - P A P - 1 1 A p r i l 2 0 1 4 ( R e v 2 .
-
Page 3: Table Of Contents
Contents Safety and General Information ........................4 Introduction..............................8 System Components ..........................8 Installing the Revolabs HD ™ Base Station ....................9 Controls and Connections: ........................9 Configuring the Revolabs HD Base Station ..................... 10 Using the Rear Panel Configuration DIP Switches ................11 Using the Revolabs HD Control Panel Software .................. -
Page 4: Safety And General Information
Safety and General Information Please read the following information to ensure safe and efficient use of your Revolabs system. FCC User Information FCC ID: T5V02HDDUALNM Revolabs HD™ Dual Base Station FCC ID: T5V0HDEXEMIC Revolabs Executive HD ™ Microphone FCC Notice to Users This device complies with Part 15 of the FCC Rules. - Page 5 L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC 6455A-01HDEXEC Revolabs HD™ Dual Base Station IC: 6455A-0HDEXEMIC Revolabs Executive HD ™ Microphone RF Exposure: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
-
Page 6: Notice To European Customers
HD, XLR Wireless Adapter for Dynamic Handheld Microphone 03-HDCOMANEU-11 HD Wireless Adapter for Countryman Microphone Any unauthorized modification of the products voids this Declaration. For a copy of the original signed declaration of conformity, please contact Revolabs at the above address. - 6 -... - Page 7 According to the requirement of the WEEE legislation the following user information is provided to customers for all branded Revolabs products subject to the WEEE directive. “The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste.
-
Page 8: Introduction
Introduction Congratulations on your purchase of a Revolabs Digital Wireless Microphone System! This system utilizes 1.9 GHz DECT technology, and high band-width audio from multiple wireless microphones, enabling clear, reliable, un-tethered communications in recording, audio/video conferencing, speech recognition, VOIP communications, sound re-enforcement as well as many other environments requiring clear audio capture. -
Page 9: Installing The Revolabs Hd ™ Base Station
The Charger Base charges the HD Wireless Microphones and stores them when not in use. Installing the Revolabs HD ™ Base Station The Revolabs HD ™ Channel Base Station, shown below in front and rear panel views, manages wireless audio signal processing, pairing, and muting between the Revolabs microphones and the Base Station. -
Page 10: Configuring The Revolabs Hd Tm Base Station
NOTE: The USB port may exhibit static sensitivity. If the Base Station audio shuts down after handling, please power cycle the Base Station Note: The HD Single/Dual System is not compatible with any other Revolabs system and therefore cannot be installed in the same room. The HD and Solo Wireless Microphones and Charger Bases are not interchangeable. -
Page 11: Using The Rear Panel Configuration Dip Switches
Using the Rear Panel Configuration DIP Switches 1 2 3 4 5 6 7 8 Feature Off (Default) Switch Individual Output Mixing Mixed Output Outputs Low Pass Filter No LPF Audio Output Line Level Mic Level Level Individual Mute Mode No Mutes Mutes High... -
Page 12: Using The Revolabs Hd Control Panel Software
Using the Revolabs HD Control Panel Software A software program with graphical user interface is available for accessing control settings and real- time status of Revolabs HD Microphone Systems. A detailed description of how to use this tool is described below. - Page 13 Mics Unmute at Startup: By default the mics go into a muted state when they are removed from the charger. This is done to prevent handling noise as the microphone is placed into position. By selecting ‘Mics Unmuted at Startup’, the mics will go into an unmuted state when removed from the charger. All Mic Mute: This feature removes the mics individual mute capability and causes both microphones to mute when the mute button on either microphone is pressed.
-
Page 14: Revolabs Hd Microphones And Hd Microphone Adapters
Using the HD Wearable Wireless Microphones The Revolabs HD Wearable Microphones, shown in the following figure, are paired to the Base Station and can be worn on the user’s shirt pocket, lapel or on a lanyard. They provide high quality full duplex audio between each user and the conferencing or audio system. - Page 15 Note: Microphones in new systems must be paired to the Base Station with each microphone assigned to a unique channel on the base unit. See pairing instructions below. Revolabs HD Wearable Microphones turn on and mute automatically when removed from Charger Base, to reduce noise while being attached.
-
Page 16: Using The Hd Omni-Directional Tabletop Wireless Boundary Microphones
2. Mute button — press to mute, un-mute and pair microphone. 3. Audio jack — accepts a 2.5mm plug. 4. Charging port — docks to Revolabs HD Charger Bases. 5. Rubber feet — non-slip, vibration absorbing pads. 6. Acoustic Cover — protects delicate microphone element (non-removable). -
Page 17: Using The Hd Directional Tabletop Wireless Boundary Microphones
2. Rubber feet — non-slip, vibration absorbing pads. 3. Audio jack — accepts a 2.5mm plug. 4. Charging port — docks to Revolabs HD Charger Bases. 5. Mute button — press to mute, un-mute and pair microphone. 6. Acoustic Cover — protects microphone element (non-removable). -
Page 18: Using The Hd Xlr Microphone Wireless Adapter
2. Directional Tabletop microphones should be located on the table with the acoustic cover pointed toward the users, trying to keep the microphone 2 to 6 feet (0.6 to 2m) from the target person or two. The pick-up pattern for this directional microphone is ~+/- 45º to either side of directly in front of the microphone. -
Page 19: Using The Hd Wireless Adapter For Countryman Microphone
1. Audio Out port — accepts the 2.5mm plug for the earpiece. 2. Charging Port — docks to all Revolabs HD Charger Bases. 3. Mute button — press to mute, un-mute and pair microphone. 4. LED display — visual status for mute, un-mute, and pairing. -
Page 20: Pairing Wireless Microphones To Base Station
The adapter turns on and mutes automatically when removed from Charger Base (flashing RED LED). The Microphone Adapter is attached to a Countryman Microphone with the specific cable designed for Revolabs. The HD Wireless Adapter for Countryman microphone supplies the necessary phantom power specifically for the Countryman microphone. -
Page 21: Revolabs Hd Tm Single Or Dual Charger Base
Revolabs HD Single or Dual Charger Base When microphones are not in use, they should be properly inserted into the Revolabs HD Charger Base. It is important to ensure that all system microphones are inserted fully in the base so that charging will occur. -
Page 22: Power Module
Revolabs HD Systems are field upgradable for the firmware portion of the Base Station and microphones. The firmware must be sent to the Base station using the Revolabs HD Panel. The software can be downloaded at www.revolabs.com/downloads. - 22 -... - Page 23 6. Choose whether you would like to update the Base Station, Mics, or Both. 7. Select OK. The Revolabs HD Firmware Loader will notify you when complete. The HD Microphone firmware updates wirelessly during the firmware process as long as the microphones are out of the Charger Base, paired to the Base Station, and communicating with the Base Station.
-
Page 24: Revolabs Hd™ Indicator Leds
Revolabs HD™ Indicator LEDs The following tables show activities associated with the various states shown by the LEDs: Equipment Use Microphone LED Base Station Meaning Channel LEDs Microphone in Charger Solid RED Charging in Progress Base Solid GREEN Charging Complete... -
Page 25: Warranty
Warranty Revolabs, Inc. warrants this product to be free of manufacturing defects. Repair or replacement of any defective part or unit (at the discretion of the Seller) will be free of charge for the period defined in the Revolabs Professional Products Limited Warranty. -
Page 26: Specifications
Countryman Adapter: 1.5” (3.8 cm) x 0.8” (2.0 cm) x 3.3” (8.4 cm), 0.05 lb (0.02 kg) Shipping Weight 2.0 lbs (5.45 kg) Radio Frequency: 02-HDSGL 1.92 to 1.93 GHz (UPCS North America) (and other 02-HD* products) 04-HDSGLEU 1.88 to 1.90 GHz (DECT EU) -
Page 27: Index
Index Adjusting the Volume, 14 LED Display, 13 Base Station, 7 Mute Button, 13 Back Panel, 7 Pocket Clip, 13 Front Panel, 7 Microphones, 12 Channel LED indicators, 7 Pairing, 18 Channels, 8 Power Cord Receptacle, 19 Charger Bays, 19 Power In Receptacle, 7 Charging the Batteries, 20 Power Module, 20... - Page 28 Note: Microphones must be fully charged for 8 hours and paired to the Base Station prior to first use. R e v o l a b s H D ™ S i n g l e & D u a l M a n u a l 0 1 - H D S G L M A N - P A P - 1 1 A p r i l 2 0 1 4 ( R e v 2 .
