Sony® Installation (Sony G70 shown for example)
This information is meant to be illustrative only. Consult your Sony Videoconferencing System Administrator
Manual for the specific instructions.
NOTE: Requires special adapter cable - XLR Female to 3.5 mm mini connector. Part number: 07-SONYVC-01
Step 1

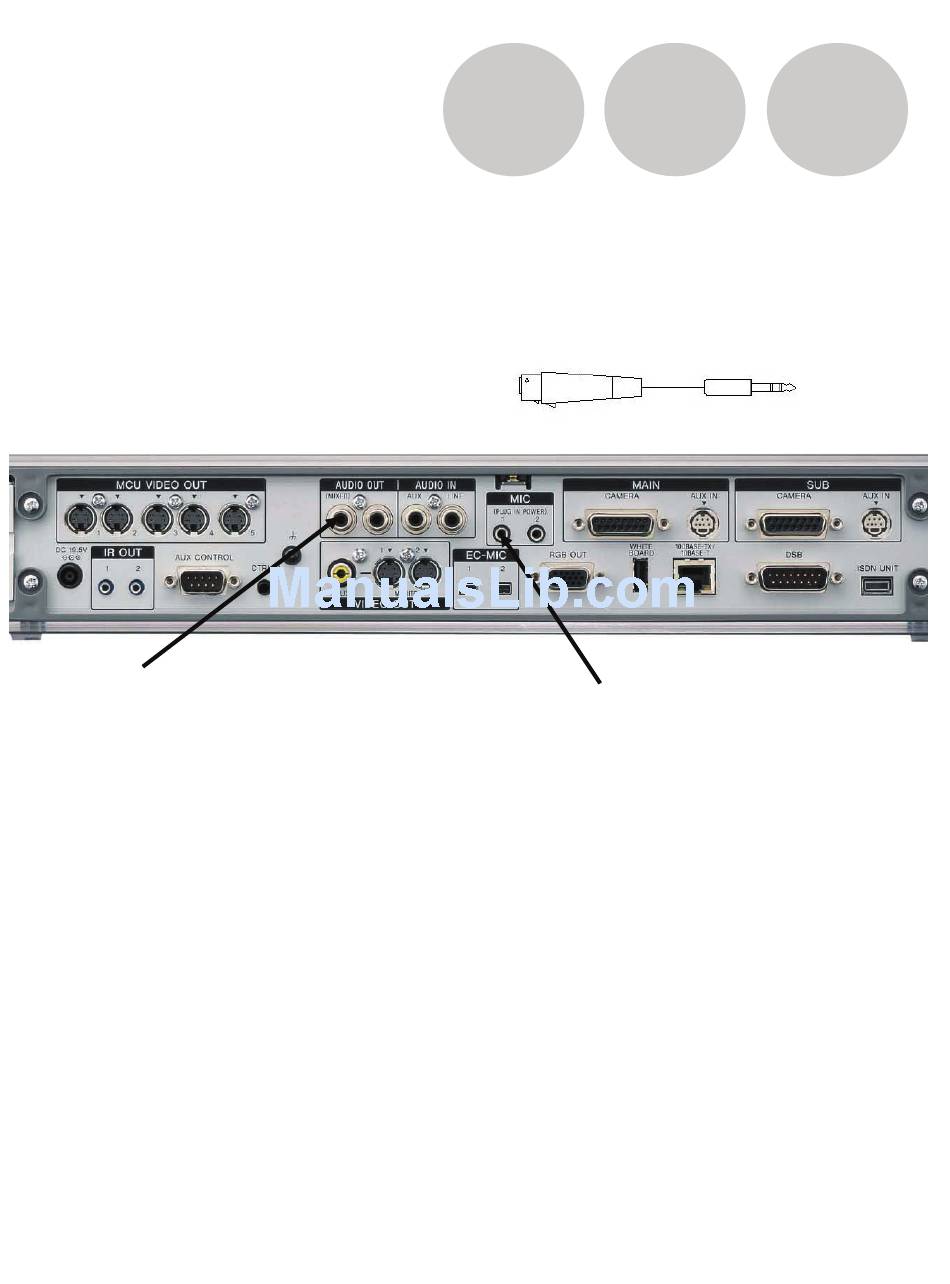

1. Plug the red RCA connector on one end of Cable C into Sony video-station <Audio Out 1>, and then plug the
red RCA connector on the other end into the Fusion Base Station <Conf In>.
2. Plug one XLR connector of Cable D, XLR to XLR, into XLR Female to 3.5mm adapter cable and then to the
Sony video-station <Mic 1 Input> and the other XLR connector into the Fusion Base Station Mic Level
Output <Conf Out (Mics)>.
To configure the Sony system:
•
Select the Audio settings drop down menu.
Confirm or modify the following settings:
•
Input Select - MIC
•
MIC Select – MIC
•
Echo Canceller - OFF
•
CTE – OFF
•
Press SAVE to save changes.
Step 2
