Polycom Installation - Revolabs Fusion Setup Manual

Set-Up Guide
Polycom® Installation (Polycom VSX7000 shown for example)
This information is meant to be illustrative only. Consult your Polycom Videoconferencing
System Administrator Manual for specific instructions.

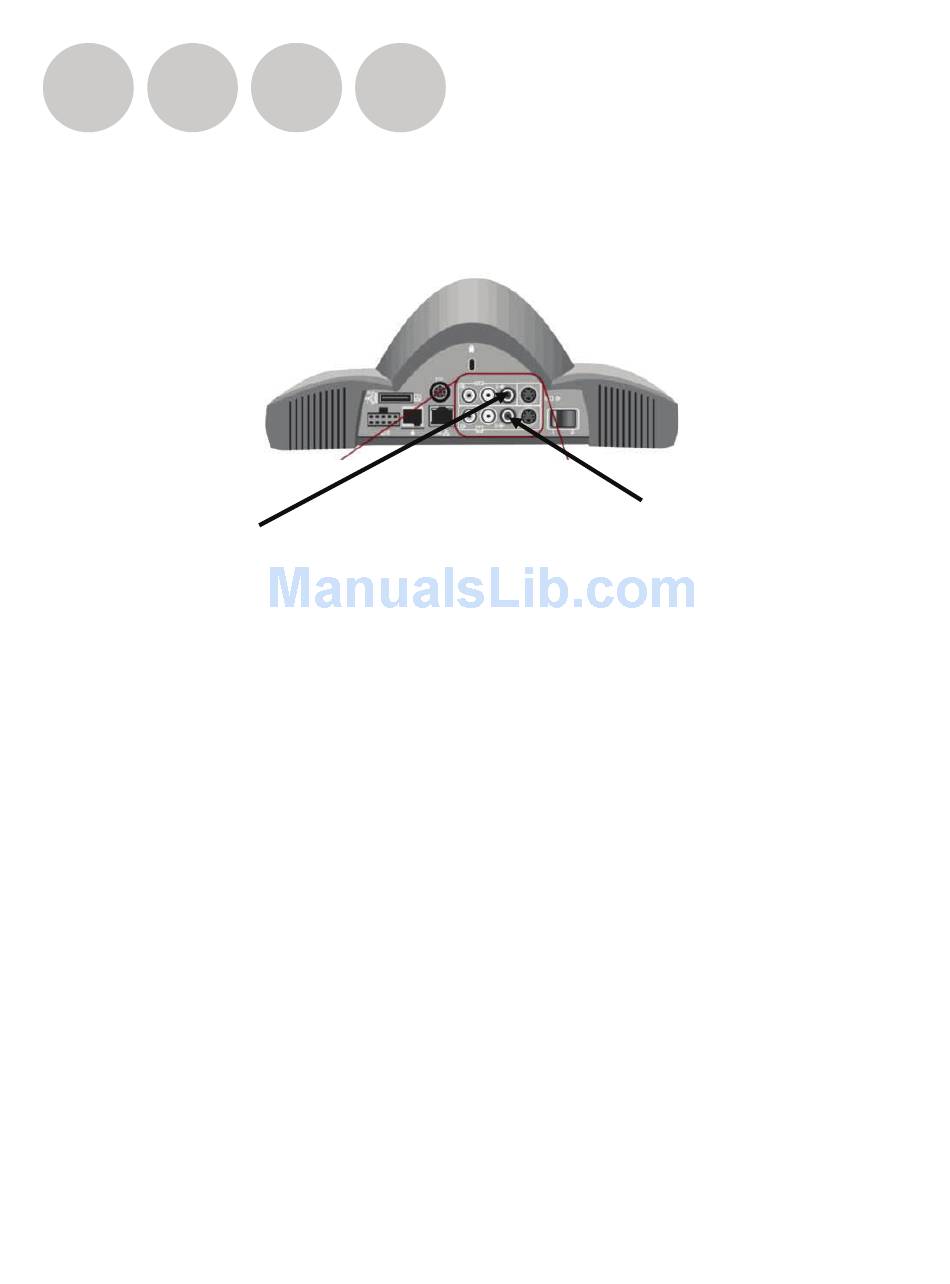

1. Plug the red RCA connector on one end of Cable C into Polycom video-station <Audio Out
1>, and then plug the red RCA connector on the other end into the Fusion Base Station
<Conf In>.
2. Plug the black RCA connector on one end of Cable C into Polycom video-station <Audio
In>, and then plug the black RCA connector on the other end into the Fusion Base Station
<Conf Out>.
To configure the Polycom system:
Select the button from the main screen to access the System menu.
Select the System / Admin settings.
Enter the administrator password and press OK (if needed).
Select the Audio settings.
Confirm or modify the following settings:
•
Midrange Speaker - OFF
•
Line Input – Audio Mixer
•
Echo Canceller - OFF
•
Line Output – Monitor Far Site Audio
•
Press OK to save changes.
Page 12
Step 1
Step 2
