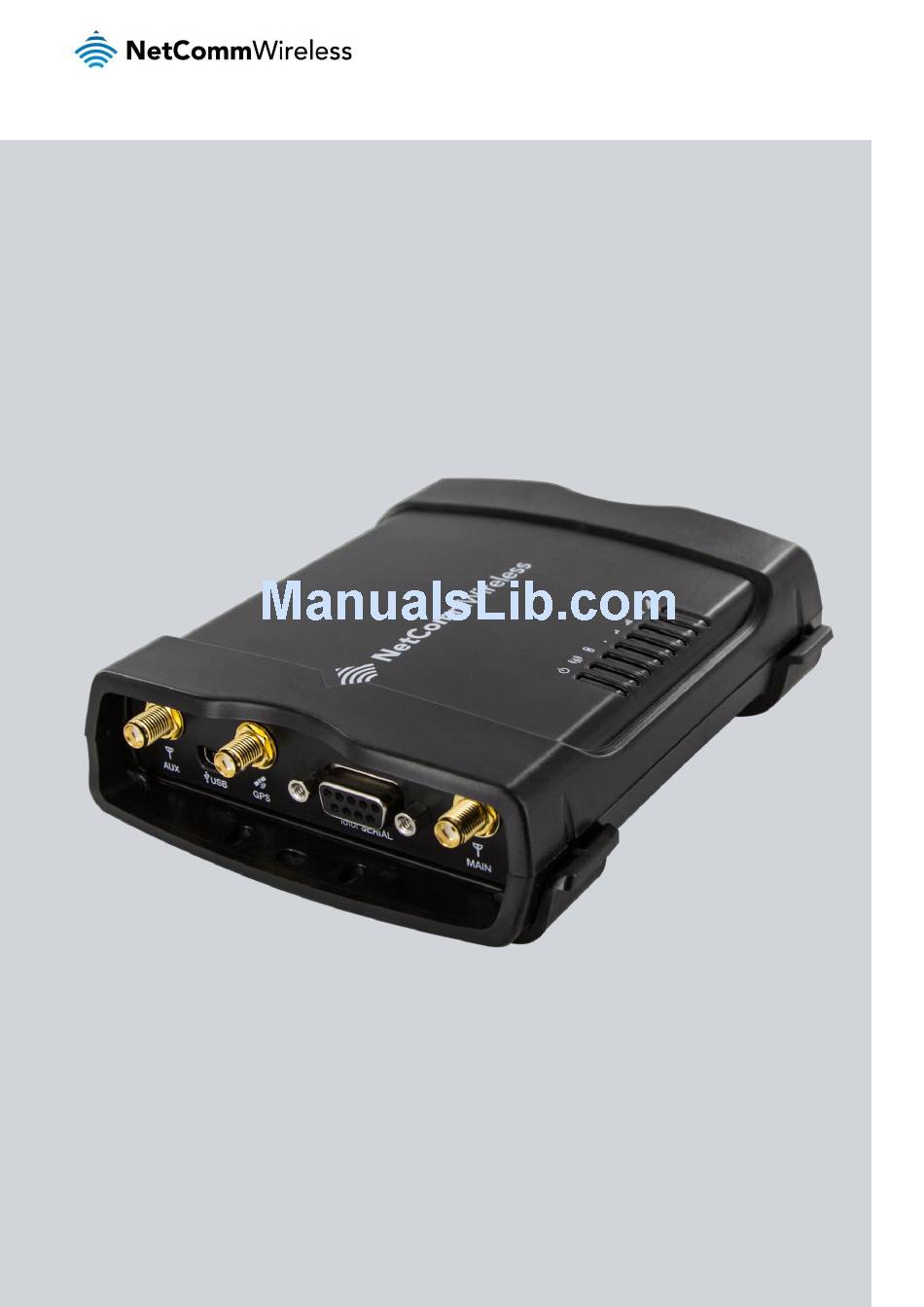

- Page 1 User Guide NTC-6200 Series – 3G M2M Router / Plus...
- Page 2 Copyright© 2014 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless.
-
Page 3: Table Of Contents
DIN rail mount ......................................14 Pole mount using DIN rail bracket ................................15 Desk mount ......................................... 15 Installation and configuration of the NTC-6200 Series router....................16 Powering the router ..................................... 16 Power consumption ..................................... 18 Installing the router ...................................... 18 Advanced configuration ................................ - Page 4 Appendix G: Inputs/Outputs ..............................139 Overview ........................................139 Appendix H: Obtaining a list of RDB variables ......................... 144 Technical Data ................................... 145 Safety and product care ................................148 IDA Standards ......................................152 Product Warranty..................................153 NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 5: Overview
Overview Introduction This document provides you all the information you need to set up, configure and use the NetComm Wireless NTC-6200 Series router. Target audience This document is intended for system integrators or experienced hardware installers who understand telecommunications terminology and concepts. -
Page 6: Product Introduction
1 x Torx screw for SIM card tray cover 1 x quick start guide If any of these items are missing or damaged, please contact NetComm Wireless Support immediately. The NetComm Wireless Support website can be found at: http://support.netcommwireless.com. NetComm Wireless 3G M2M Router / Plus... -
Page 7: Product Features
Product features The NetComm Wireless NTC-6200 Series router is an M2M device designed by NetComm Wireless to address the rapid growth in M2M deployments. It has been designed to provide state-of-the-art features and versatility at an affordable price. Compatible with networks worldwide, the NTC-6200 Series router can be managed remotely even when it does not have an Internet connection via the use of SMS diagnostics and commands. -
Page 8: Physical Dimensions And Indicators
Physical dimensions and indicators Physical dimensions Below is a list of the physical dimensions of the NTC-6200 Series router. Figure 1 – NTC-6200 Series router Dimensions NTC-6200 SERIES ROUTER (WITHOUT EXTERNAL ANTENNAS ATTACHED) Length 143 mm Depth 107 mm Height... -
Page 9: Led Indicators
LED indicators The NTC-6200 Series router uses 8 LEDs to display the current system and connection status. Figure 2 - NTC-6200 Series router LED Indicators LED ICON NAME COLOUR STATE DESCRIPTION Power off Double flash Powering up Power Power on... -
Page 10: Ethernet Port Led Indicators
20 seconds for the signal strength LEDs to update before repositioning. Ethernet port LED indicators The Ethernet port of the NTC-6200 Series router has two LED indicators on it. Figure 3 - Ethernet port LED indicators The table below describes the statuses of each light and their meanings. -
Page 11: Interfaces
Provides connectivity for optional external storage or a USB Ethernet dongle. Supplies up to 0.5A to Mini USB 2.0 OTG port connected device. Serial port Female DE-9 port supporting 9-wire RS-232, RS-485 or RS-422 (software selectable). Table 6 – Interfaces - NTC-6200-01, NTC-6200-02, NTC-6200-11 and NTC-6200-12 models www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 12 Provides connectivity for optional external storage or a USB Ethernet dongle. Supplies up to 0.5A to Mini USB 2.0 OTG port connected device. Serial port Female DE-9 port supporting 9-wire RS-232, RS-485 or RS-422 (software selectable). Table 7 – Interfaces NTC-6200-03 and NTC-6200-13 models NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 13: Placement Of The Router
The NTC-6200 Series router can be quickly and easily mounted in a variety of locations. Mounted flat against the wall When mounted flat against the wall, the NTC-6200 Series router has a slimline form factor. Use appropriately sized screws in the mounting holes provided on the base of the unit. -
Page 14: Wall Mounted Via Din Rail Bracket
Wall mounted via DIN rail bracket Figure 8 - Wall mounted via DIN rail bracket DIN rail mount Figure 9 – DIN rail mount NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 15: Pole Mount Using Din Rail Bracket
Pole mount using DIN rail bracket Figure 10 - Pole mount using DIN rail bracket Desk mount Figure 11 – Desk mount www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... -
Page 16: Installation And Configuration Of The Ntc-6200 Series Router
Mid power Table 8 - PoE power classes To use PoE to power the NTC-6200 Series router, simply connect your router to a PoE injector or PoE network switch using the bundled yellow Ethernet cable 8P8C. DC power via 6-pin or 2-pin connector The DC input jack can accept power from a separately sold DC power supply. - Page 17 You can also use the Software Development Kit to access this information for advanced purposes (e.g. configuring SMS alerts to inform you of the power status of the router). www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 18: Power Consumption
To assist with power consumption planning, the following table summarises average power consumption during the various states of the NTC-6200 Series router under normal usage conditions. It’s important to note that this table serves as an indication only as the power consumed by the device is affected by many variables including signal strength, network type, and network activity. -
Page 19: Advanced Configuration
Advanced configuration The NTC-6200 Series router comes with pre-configured settings that should suit most customers. For advanced configuration, log in to the web-based user interface of the router. To log in to the web-based user interface: Open a web browser (e.g. Internet Explorer, Firefox, Safari), type http://192.168.1.1... -
Page 20: Status
Status The status page of the web interface provides system related information and is displayed when you log in to the NTC-6200 Series router management console. The status page shows System information, LAN details, Cellular connection status, Packet data connection status and Advanced status details. You can toggle the sections from view by clicking the buttons to show or hide them. - Page 21 Location area code (LAC) The ID of the cell tower grouping the current signal is broadcasting from. IMSI The International mobile subscriber identity is a unique identifier of the user of a cellular network. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 22 A unique code that identifies the base station from within the location area of the current mobile network signal. Channel number (UARFCN) The channel number of the current 3G/2G connection. Cellular configuration ID Table 14 - Status page item details NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 23: Networking
The data connection page allows you to configure and enable/disable the connection profile. To access this page, click on the Networking menu, and under the Wireless WAN menu, select the Data connection item. Figure 17 – Data connection settings www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 24 To manually configure a connection profile: Click the Edit button corresponding to the Profile that you wish to modify. The data connection profile settings page is displayed. Figure 18 - Data connection profile settings NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 25 The Metric value is used by router to prioritise routes (if multiple are available) and is set to 20 by default. This value is sufficient in most cases but you may modify it if you are aware of the effect your changes will have on the service. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 26 Status page. When there is a mobile broadband connection, the WWAN section is expanded showing the details of the connection and the Status field displays Connected. To see details on the connected session, you can click the Show data usage button. Figure 20 - WWAN connection status section NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 27 Next you must configure your downstream device connected via Ethernet to the NTC-6200 Series router to initiate a network connection through a PPPoE client. The username and password used by the downstream device for the PPPoE session will be passed on and used by the NTC-6200 Series router as the packet data (PDP) context authentication settings.
-
Page 28: Connect On Demand
On the Connect on demand page, click the Connect on demand toggle key so that it is ON. Extra options appear. See the following sub-sections for further instructions. Figure 23 - Connect on demand configuration options NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... - Page 29 When you check the box for these options, it tells the router to ignore the request from that application type and will not dial a connection when this data type is received. Figure 27 - Connect on demand - Excluding application types www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 30 To enable the logging of the Connect on demand feature, click the Enable verbose mode toggle key to switch it ON. See the System log section for more information. Figure 29 – Connect on demand - Verbose logging configuration NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 31 The router can also be woken up by means of an SMS message using the SMS diagnostics feature by sending an executable wakeup command via SMS. See the Diagnostics section for details on using the SMS Wake up function. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 32: Operator Settings
To scan for available networks, set the Select operator mode from automatic to Manual then click the scan button. This operation can take a few minutes and requires that the packet data session be disconnected prior to scanning. Figure 32 - Operator settings NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 33: Sim Security Settings
Figure 34 - SIM security settings - SIM PIN locked Enter the PIN in the Current PIN field and then enter it again in the Confirm current PIN field to confirm the PIN. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 34 Note: Select Remember PIN if you do not want to enter the PIN code each time the SIM is inserted. Click the Save button. If successful, the router displays the following screen: Figure 35 - SIM security settings - SIM unlock successful NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 35 Enabling/Disabling SIM PIN protection The security PIN protection can be turned on or off using the PIN protection toggle key. Figure 36 - PIN Settings www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 36 PIN fields, then enter the desired PIN into the New PIN and Confirm new PIN fields and click the Save button. Figure 37 - PIN settings - Change PIN When the PIN has been changed successfully, the following screen is displayed: Figure 38 - SIM security settings – PIN unlock successful NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 37 You will be issued a PUK to enable you to unlock the SIM and enter a new PIN. Enter the new PIN and PUK codes. Click the Save button when you have finished entering the new PIN and PUK codes. Figure 39 - SIM security - SIM PUK locked www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 38: Lan
DNS servers. With DNS masquerading ON, the DHCP server embedded in the NTC-6200 Series router hands out its own IP address (e.g. 192.168.1.1) as the DNS server address to LAN clients. The downstream clients then send DNS requests to the NTC-6200 Series router which proxies them to the upstream DNS servers. - Page 39 DHCP server is located on the Wireless WAN or LAN connections, the clients behind the NTC-6200 Series router are able to communicate with the DHCP server when DHCP relay is enabled. This enables the NTC-6200 Series router to accept client broadcast messages and to forward them onto another subnet.
- Page 40 In the IP Address fields, enter the IP address that you wish to reserve for the device. If the Enable toggle key is not set to ON, click it to switch it to the ON position. Click the Save button to save the settings. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 41 Clone button and the details will be copied to the address reservation list fields. Remember to click the Save button under the Address reservation list section to confirm the configuration. Figure 44 - Dynamic DHCP client list www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 42: Routing
In the Metric field enter the metric for the route. The metric value is used by the router to prioritise routes. The lower the value, the higher the priority. To give the route the highest priority, set it to 0. Click the Save button to save your settings. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... - Page 43 Figure 47 - Active routing list Deleting static routes From the static routing list, click the icon to the right of the entry you wish to delete. Figure 48 - Deleting a static route www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 44 Using the Version drop down list, select the version of RIP that you would like to use. Select the interface for which you want RIP to apply. You can choose the LAN interface, the WWAN interface or BOTH. Click the Save button to confirm your settings. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 45 Note: Configuring VRRP changes the MAC address of the Ethernet port and therefore if you want to resume with the web configuration you must use the new IP address (VRRP IP) or on a command prompt type: arp –d <ip address> (i.e. arp –d 192.168.1.1) to clear the arp cache.(old MAC address). www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 46: Port Forwarding
If the Source port range specifies a single port then the destination port may be configured to any port. If the Source port range specifies a range of port numbers then the Destination port range must be the same as the Source port range. Click the Save button to confirm your settings. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... - Page 47 Figure 52 - Port forwarding settings To delete a port forwarding rule, click the button on the Port forwarding list for the corresponding rule that you would like to delete. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 48 Click the DMZ toggle key to turn the DMZ function ON. Enter the IP Address of the device to be the DMZ host into the DMZ IP Address field. Click the Save button to save your settings. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 49 When DMZ is enabled, MAC/IP/Port filtering rules and the router firewall are ignored but the router will still honour the configuration of the Remote router access control settings listed under Administration Settings. Figure 54 - Router firewall toggle key www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 50 In the Current MAC / IP / Port filtering rules in system section, click the +Add button. Figure 56 - Current MAC / IP/ Port filtering rules in effect Enter the details of the rule in the section that is displayed and click the Save button. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 51 The new rule is displayed in the filtering rules list. You can edit the rule by clicking the Edit button or delete the rule by clicking the button. Figure 58 - Completed filtering rule www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 52: Vpn
IPSec operates on Layer 3 of the OSI model and as such can protect higher layered protocols. IPSec is used for both site to site VPN and Remote Access VPN. The NTC-6200 Series router supports IPsec end points and can be configured with Site to Site VPN tunnels with third party VPN routers. - Page 53 Figure 60 – IPSec profile edit www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 54 Select the type of key or certificate to use for authentication. You can select Local private key, Local public certificate, Key / Certificate Remote public certificate, CA certificate, CRL certificate. IPSec Certificate Upload Select the IPSec certificate to upload by clicking the Browse button. Table 18 - IPSec Configuration Items NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 55: Openvpn Server
Under the Server certificates section, select the Authentication type that you would like to use for the OpenVPN Server. Note: The Diffie-Hellman parameters can take up to 10 minutes to generate. Please be patient. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 56 Set network information button. If you do not enter the remote subnet here, any packet requests from the server to the client will not be received by the client network because it is not aware of the remote client’s subnet. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 57 Figure 63 – OpenVPN server profile settings www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 58 If it is not selected, the OpenVPN connection allows for secure communication links between this router and the remote OpenVPN server only. Use the Authentication type options to select the Authentication type that you would like to use for the OpenVPN client. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 59 In the Profile name field, type a name for the OpenVPN P2P profile you are creating. On the router designated as the server, leave the Server IP address field empty. On the router designated as the client, enter the WAN IP address/host domain name of the server. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 60 Upload button to send it to the slave. Perform the same for the other router, uploading the slave’s secret key file to master. When they are uploaded click the Save button to complete the peer-to-peer OpenVPN configuration. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 61: Configuring The Pptp Client
Figure 68 - PPTP client list Click the +Add button to begin configuring a new PPTP client profile. The PPTP client edit screen is displayed. Figure 69 - VPN PPTP client edit www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 62 Click the Save button to save the changes. The VPN will attempt to connect after your click Save. Click the Status button at the top left of the interface to return to the status window and monitor the VPN’s connection state. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 63 Click the +Add button to begin configuring a new GRE tunnelling client profile. The GRE Client Edit screen is displayed. Figure 71 – GRE client edit Click the Enable GRE Tunnel toggle key to switch it to the ON position. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 64 Click the Save button to save the changes. The VPN will attempt to connect after your click Save. Click the Status button at the top left of the interface to return to the status window and monitor the VPN’s connection state. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 65: Services
In the Username and Password fields, enter the logon credentials for your DDNS account. Enter the password for the account again in the Verify password field. Click the Save button to save the DDNS configuration settings. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... -
Page 66: Network Time (Ntp)
Network time (NTP) The NTP (Network Time Protocol) settings page allows you to configure the NTC-6200 Series router to synchronize its internal clock with a global Internet Time server and specify the time zone for the location of the router. This provides an accurate timekeeping function for features such as System Log entries and Firewall settings where the current system time is displayed and recorded. -
Page 67: Data Stream Manager
TCP server running on the router. In each case, the logical flow of the stream is from Endpoint A to Endpoint B. Customers interested in developing their own applications to create custom endpoints and streams can contact NetComm Wireless about our Software Development Kit. - Page 68 Note: Using a custom host port name is not recommended for normal use as the device path can change between power cycles of the router. Figure 77 - Serial port (generic) endpoint configuration (Custom) NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 69 Retry timeout interval. Figure 79 - TCP client endpoint configuration UDP server: This creates a UDP server endpoint with the following options available. Figure 80 - UDP server endpoint configuration www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 70 RS232 / RS485 / RS422 port: These endpoint types all use the built-in serial port. When one of these endpoints is used to create a stream, the necessary hardware switches to accommodate the chosen serial communication interface are made. Figure 84 – RS232 / RS485 / RS422 port configuration options NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 71 TCP server running on the router. Use the Mode drop down list to select the mode of operation of the endpoint. The mode can be thought of as a transformation of the data as it arrives at this endpoint. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 72 Figure 87 - Edit data stream Click the Save button. The new stream appears in the Data stream list. Figure 88 - Data stream list NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 73: Legacy Data Managers
Modem emulator allows you to connect legacy equipment such as an RTU or PLC to the serial port of the router in place of a traditional dial-up modem. The NTC-6200 series router emulates the dial-up modem’s behaviour and passes the serial data over the IP network. - Page 74 Selects the mode of operation for the chosen profile. Mode may be TCP, UDP or GMTP. Auto answer When enabled the router accepts incoming connections (enables server mode) Table 19 - Modem emulator options NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 75 TCP/IP Client Mode. When PADD is enabled, both the PADD server mode and PADD client mode can be run at the same time. The PADD configuration page is shown below. Figure 90 – PADD www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 76: Snmp
The Download button displays the Management Information Base (MIB) of the router. The MIB displays all the objects of the router that can have their values set or report their status. The MIB is formatted in the SNMP-related standard RFC1155. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 77: Snmp Traps
To send a manual SNMP Heartbeat, click the Send heartbeat button. When you have finished configuring the SNMP traps, click the Save button to save the settings. Note: When a factory reset is performed via SNMP, the SNMP settings are preserved. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 78 Note: You must have your own compatible ACS infrastructure to use TR-069. In order to access and configure the TR-069 settings you must be logged into the router as the root user. Note: When a factory reset of the router is performed via TR-069, the TR-069 settings are preserved. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 79 ACS inform messages. In the Inform Period field, enter the number of seconds between the inform messages. Click the Save button to save the settings. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 80: Gps
To access the GPS configuration screen, select the Services item from the top menu bar then the GPS item on the left. Finally, select the GPS configuration menu item. To use the GPS function, set the GPS operation toggle key to ON and click the Save button. Figure 94 – GPS configuration NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... - Page 81 You may manually force the router to check for an update regardless of the next scheduled update time by clicking the Update Now button. When you have finished configuring the settings, click the Save button to save the changes. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 82 Toggles the Odometer function on and off. Specifies the minimum distance that the router must travel from its current position before the Threshold Odometer reading increases. Table 21 - Odometer configuration options NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 83: Io Configuration
IO configuration The NTC-6200 Series Router is equipped with a 6-way terminal block connector providing 3 identical multipurpose inputs and outputs as well as a dedicated ignition input. These inputs and outputs may be independently configured for various functions, including:... - Page 84 There are also wiring examples in Appendix G of this User Guide. Contact NetComm Wireless Technical Support for access to the Software Development Kit. NetComm Wireless 3G M2M Router / Plus...
-
Page 85: Notification Configuration
The Notification configuration screen is used to select the event types, methods of notification and the destinations for the notifications. Up to four types of alerts for a particular event may be sent to a single destination profile containing the contact details. Figure 98 - Event notification configuration www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 86 Click the Save button. Note: If you have selected the Email notification type for any of the events, you must also configure Email client settings to allow the router to send e-mail messages. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 87 In this case, you must go to the Notification configuration screen and remove the check marks from all the notification types for each event for which the destination profile is configured. When you have done that, return to the Event destination list and select the delete button. Click the Save button. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 88 Enter the password of the account to be used for sending emails. Confirm password Enter the password of the account to be used for sending emails once more for confirmation. Table 26 - Email client settings NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 89: Low Power Mode
Ability to trigger the NTC-6200 Series router to download and apply a configuration file To access the SMS messaging functions of the NTC-6200 Series router, click on the Services menu item from the top menu bar, and then select one of the options under the SMS messaging section on the left hand menu. - Page 90 “192.168.20.3” on port “2002” at the same time. To disable redirection to a TCP or UDP address, clear the TCP server address and UDP server address fields and click the Save button. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 91: New Message
When you have finished typing your message and you are ready to send it, click the Send button. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 92 Add to White list. Click this button to add the sender’s mobile number to the white list on the router. Delete button. Click this button to delete the corresponding message. Refresh button. Click this button to refresh the inbox or outbox to see new messages. Table 28 - Inbox/Outbox icons NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 93: Diagnostics
We highly recommended that you use the white list and a password when utilising this feature to prevent unauthorised access. See the White list description for more information. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 94 This is enabled by default and it is strongly advised that you leave this feature enabled to maintain security. Send Set command acknowledgement replies The NTC-6200 Series router will automatically reply to certain types of commands received, such as commands, or...
- Page 95 Destination number field and optionally define a password in the Password field. When you have finished adding numbers click the Save button to save the entries. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 96: Sending An Sms Diagnostic Command
The router automatically replies to get commands with a value and execute commands with either a success or error response. Set commands will only be responded to if the Send Set command acknowledgement replies toggle key is set to ON. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 97: Sms Command Format
PASSWORD set VARIABLE1=VALUE1; set VARIABLE2=VALUE2; set VARIABLE3=VALUE3 If required, values can also be bound by an apostrophe, double apostrophe or back tick. For Example: “set VARIABLE=’VALUE’” “set VARIABLE=”VALUE”” “set VARIABLE=`VALUE`” “get VARIABLE” www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 98 Instructs the router to generate new public SSH keys. ssh.clearkeys Instructs the router to clear the client public SSH key files. Table 30 - List of basic SMS diagnostic commands NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 99 Sets the operator to a manual selection made by the user where “505” is the Mobile set forceplmn set forceplmn=505,3 Country Code for Australia and “3” is the Mobile Network Code for Vodafone. As no network type (i.e. 3G or 2G) is specified, it is selected automatically. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 100 Sets the SSH Enable key authentication option on or off. Table 31 - List of get/set commands Note: Get/set commands may also be performed on many RDB variables. To obtain a full list of RDB variables, refer to Appendix NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 101 The get plmnscan SMS command enables you to perform a scan of the cellular networks available at the time of the scan. It returns the following semi-colon separated information for each network in range: Network Type (3G, 2G) Provider's Name Operator Status (available, forbidden, current) www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 102 Sets the operator and network type to a manual selection made by the user where “505” is the Mobile Country Code for Australia, “3” is the Mobile Network Code for Vodafone and “7” is the 3G network type. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 103: Sms Diagnostics Examples
Send SMS to reset to factory default settings Required PASSWORD execute factorydefaults Not required get status Send SMS to retrieve status of router Required PASSWORD get status Not required get sessionhistory www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 104 Generate set of public/private keys on the host Required PASSWORD execute ssh.genkeys Not required execute ssh.clearkeys Clear client public keys stored on host Required PASSWORD execute ssh.clearkeys Table 35 - SMS diagnostics example commands NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 105: System
The Log pages are used to display or download the System log, IPSec log and Event notification logs on the router. System log The System Log enables you to troubleshoot any issues you may be experiencing with your NTC-6200 Series router. To access the System Log page, click on the System menu. The System Log is displayed. - Page 106 To configure the NTC-6200 Series router to output log data to a remote syslog server: Click on the System menu from the top menu bar. The System log item is displayed.
- Page 107 Event notification feature. Figure 111 - Event notification log Use the Download event notification history button to download the log file. The Update event notification history button forces a refresh of the log display. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 108: System Configuration
The backup / restore functions can be used to easily configure a large number of NTC-6200 Series router by configuring one router with your desired settings, backing them up to a file and then restoring that file to multiple NTC-6200 Series routers. -
Page 109: Updating The Firmware
Series router. When firmware files have been uploaded, they can also be installed from this page. PDF files, such as this user guide may also be uploaded for access on the router’s help page. For more information on application development, contact NetComm Wireless about our Software Development Kit. Figure 113 - Upload page Updating the Firmware The firmware update process involves first updating the recovery image firmware and then updating the main firmware image. - Page 110 The recovery firmware image is flashed and when it is complete, the router displays “The firmware update was successful” and returns to the main Upload screen. Figure 116 - Recovery firmware flash process NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 111 Hold down the reset button on the router for 15-20 seconds to reboot and restore the factory default settings of the router. See the Restoring factory default settings section for more information. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 112 The Package Manager page is used to provide details of any user installed packages on the router and allow them to be uninstalled. For more information on application development, contact NetComm Wireless about our Software Development Kit. Figure 118 – Software applications manager The Application name, Version number of the application, the architecture type and time of installation are all displayed.
-
Page 113: Administration Settings
The Administration settings page is used to enable or disable protocols used for remote access and configure the passwords for the user accounts used to log in to the router. Figure 119 - Administration page www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 114 Enter the username and password to login to the router and click Log in. Note: To perform functions like Firmware upgrade, device configuration backup and to restore and reset the router to factory defaults, you must be logged in with the root manager account. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 115: Https Key Management
The private key is used to decrypt information and must be secret by its owner. Each NTC-6200 Series router contains a self-signed digital certificate which is identical on all NTC-6200 Series routers. For a greater level of security, the router also supports generating your own unique key. Additionally, you may use third party software to generate your own self-signed digital certificate or purchase a signed certificate from a trusted certificate authority and then upload those certificates to the router. - Page 116 Cayman Islands Qatar International Algeria Kazakhstan Reunion US Military Ecuador Laos Romania Network Estonia Saint Lucia Serbia Non-Profit Organization Egypt Liechtenstein Russian Federation ARPA Old style Arpanet Western Sahara Sri Lanka Rwanda NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 117 The web server on the router restarts and you are logged out of the router. Click OK to be taken back to the login screen. Figure 121 - New certificate successfully generated message www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 118: Ssh Key Management
Select the types of authentication you want to use by clicking the Enable password authentication and Enable key authentication toggle keys on or off. Note that you may have both authentication methods on but you may not turn them both off. Click the Save button to confirm your settings. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... - Page 119 Upload button, browse to the file and click Open. When the file is uploaded, it is examined for validity. If the key file is not a valid public key, it will not be uploaded. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 120 The wait period begins from the time the Save button is clicked. When the wait period expires, the LEDs will turn off. If the router is rebooted, the LED power off timer is reset. The router will boot up and wait for the configured time before turning off again. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 121: Watchdogs
Connect-on-demand session is idle, or the PDP context is disabled by the user. Therefore, we recommended that you disable this feature if Connect-on-demand is configured or if the PDP context is intentionally disconnected on occasion. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 122 Note: The Periodic Ping timer should not be set to a value of less than 300 seconds to allow the router time to reconnect to the cellular network following a reboot. To disable the periodic ping reset monitor, set Fail count to 0. Figure 125 – Ping watchdog settings NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 123 Note: The randomise reboot time is not persistent across reboots; each time the router is due to reboot, it randomly selects a time less than or equal to the Randomise reboot time. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 124: Reboot
Power management The NTC-6200 Series router can be configured to enter or return from a low power ‘sleep’ mode. You can configure this to occur automatically after a timer has expired, by the status of the ignition pin, a combination of timer and ignition pin status or by manually triggering sleep mode. - Page 125 3600 seconds (1 hour), depending on which condition occurs first. Figure 130 - Sleep after specified duration or triggered by ignition pin www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
- Page 126 There is also a provision to reboot the router after a specified period of time, regardless of whether the conditions of Events 1 and/or 2 are met. This can be viewed as a fall back option in the case that those Events are missed. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 127 Events 2 occurs, the router wakes up. Alternatively, if neither or only one of the events occurs, the router waits for the time specified in the Always wake up after field and then wakes up when that time has been reached. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 128: Logging Out
Note: It can take up to 2 minutes for the router to reboot. Logging out To log out of the router, click the icon at the top right corner of the web user interface. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 129: Appendix A: Tables
Table 41 - Technical Specifications of the NTC-6200-01 and NTC-6200-02 Series routers ........145 Table 42 - Technical Specifications of the NTC-6200-11 and NTC-6200-12 Series routers ........146 Table 43 - Technical Specifications of the NTC-6200-03 and NTC-6200-13 Series routers ........147 www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... -
Page 130: Appendix B: Default Settings
Appendix B: Default Settings The following tables list the default settings for the NTC-6200 Series router. LAN (MANAGEMENT) Static IP Address: 192.168.1.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.1 Table 38 - LAN Management Default Settings ADMIN MANAGER ROOT MANAGER ACCOUNT... -
Page 131: Restoring Factory Default Settings
Use a pen to depress the Reset button on the device for 15-20 seconds. The router will restore the factory default settings and reboot. When you have reset your NTC-6200 Series router to its default settings you will be able to access the device’s configuration web interface using http://192.168.1.1... -
Page 132: Appendix C: Recovery Mode
Accessing recovery mode Both systems have web interfaces that can be used to manipulate the other inactive system. The NTC-6200 Series Router starts up by default in the Main system mode, however the router may be triggered to start in recovery mode if desired. -
Page 133: Status
The only functionality provided here is the ability to clear the system log, filter by log level and downloading of the log file. Figure 138 - Recovery mode – Log www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... -
Page 134: Application Installer
Click the Reboot button to reboot the router to the main firmware image. Figure 141 - Recovery mode - Reboot NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 135: Appendix D: Https - Uploading A Self-Signed Certificate
Uploading a self-signed certificate If you have your own self-signed certificate or one purchased elsewhere and signed by a Certificate Authority, you can upload it to the NTC-6200 Series router using the Upload page. Note: Your key and certificate files must be named server.key and server.crt respectively otherwise they will not work. - Page 136 Click the Install link next to the server.crt file then click OK on the prompt that is displayed. The certificate file is installed. Repeat this for the key file. When each file is installed it is removed from the list of stored files. Figure 145 - Installing the server.crt file NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
-
Page 137: Appendix E: Rj-45 Connector
DC + unused White/Blue DC + unused stripe Green solid Tx - Tx - DC - White/Brown DC - unused stripe Brown solid DC - unused Table 41 - RJ-45 connector pin outs www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... -
Page 138: Appendix F: Serial Port Wiring
Figure 147 - DE9 Male connector (Pin side view) The NTC-6200 Series router has a serial interface and acts as the data communications equipment (DCE). The wiring tables below indicate the DCE and DTE devices as well as the signal direction. Shielding cable can optionally be soldered to the chassis and connected to ground. -
Page 139: Hardware Interface
Depending on the sensor type used, the pull up resistor can be switched on or off. If using the NAMUR sensor configuration the pull up will be activated to 8V2 by default. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... -
Page 140: Wiring Examples
Note: NetComm Wireless does not offer any further advice on the external wiring requirements or wiring to particular sensors, and will not be responsible for any damage to the unit or any other device used in conjunction with it. Using outputs to control high voltage equipment can be dangerous. -
Page 141: Digital Inputs
A NAMUR sensor is a range of sensors which conform to the EN 60947-5-6 / IEC 60947-5-6 standards. They basically have two states which are reflected by the amount of current running through a sense resistor. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... - Page 142 An example below shows the internal pull-up voltage and 1K resistor activated. The voltage received depends on the combination of resistors and the value of the resistance of the sensor itself. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 143 The previous examples of wiring can be used to come up with a system. The following test case is an example of how the I/O’s can be used to enhance a simple router setup. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 144: Appendix H: Obtaining A List Of Rdb Variables
Note: Omitting the | more parameter will dump a complete list without pagination. For easier access, some terminal clients such as PuTTY have the ability to log all telnet output to a text file. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 145: Technical Data
Technical Data The following tables list the hardware specifications of the NTC-6200 Series routers. COMPONENT NTC-6200-01 NTC-6200-02 256MByte Flash memory storage (~120MB available on board space for user storage) Memory Operating System Embedded Linux 3.6 UMTS bands UMTS/HSDPA/HSUPA: 800/850/900/1900/2100 MHz... - Page 146 143mm (L) x 107mm (D) x 34mm (H) / 221g Weight Regulatory FCC, PTCRB, CE, GCF, WEEE, RoHS, RCM, IC, e-mark Compliance Table 46 - Technical Specifications of the NTC-6200-11 and NTC-6200-12 Series routers NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com...
- Page 147 143mm (L) x 107mm (D) x 34mm (H) / 221g Weight Regulatory FCC, PTCRB, CE, GCF, WEEE, RoHS, RCM, IC, e-mark Compliance Table 47 - Technical Specifications of the NTC-6200-03 and NTC-6200-13 Series routers www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
-
Page 148: Safety And Product Care
European market. The wireless device is approved to be used in the member states of the EU. NetComm Wireless declares that the wireless device is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE Directive). -
Page 149: Fcc Statement
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... -
Page 150: Electrical Safety
To use your device normally again after such shutdown, cool it in a well-ventilated place before turning it on. Please check local regulations for disposal of electronic products. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 151: Device Heating
Hospitals Switch off your wireless device when requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment. www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus... -
Page 152: Explosive Environments
Turn off your device or wireless device when in a blasting area or in areas posted turn off “two-way radios” or “electronic devices” to avoid interfering with blasting operations. IDA Standards The NTC-6200-02 complies with IDA Standards DA103787. NetComm Wireless 3G M2M Router / Plus www.netcommwireless.com... -
Page 153: Product Warranty
Product Warranty For warranty information please visit http://www.netcommwireless.com/product/m2m/ntc-6200 www.netcommwireless.com NetComm Wireless 3G M2M Router / Plus...
