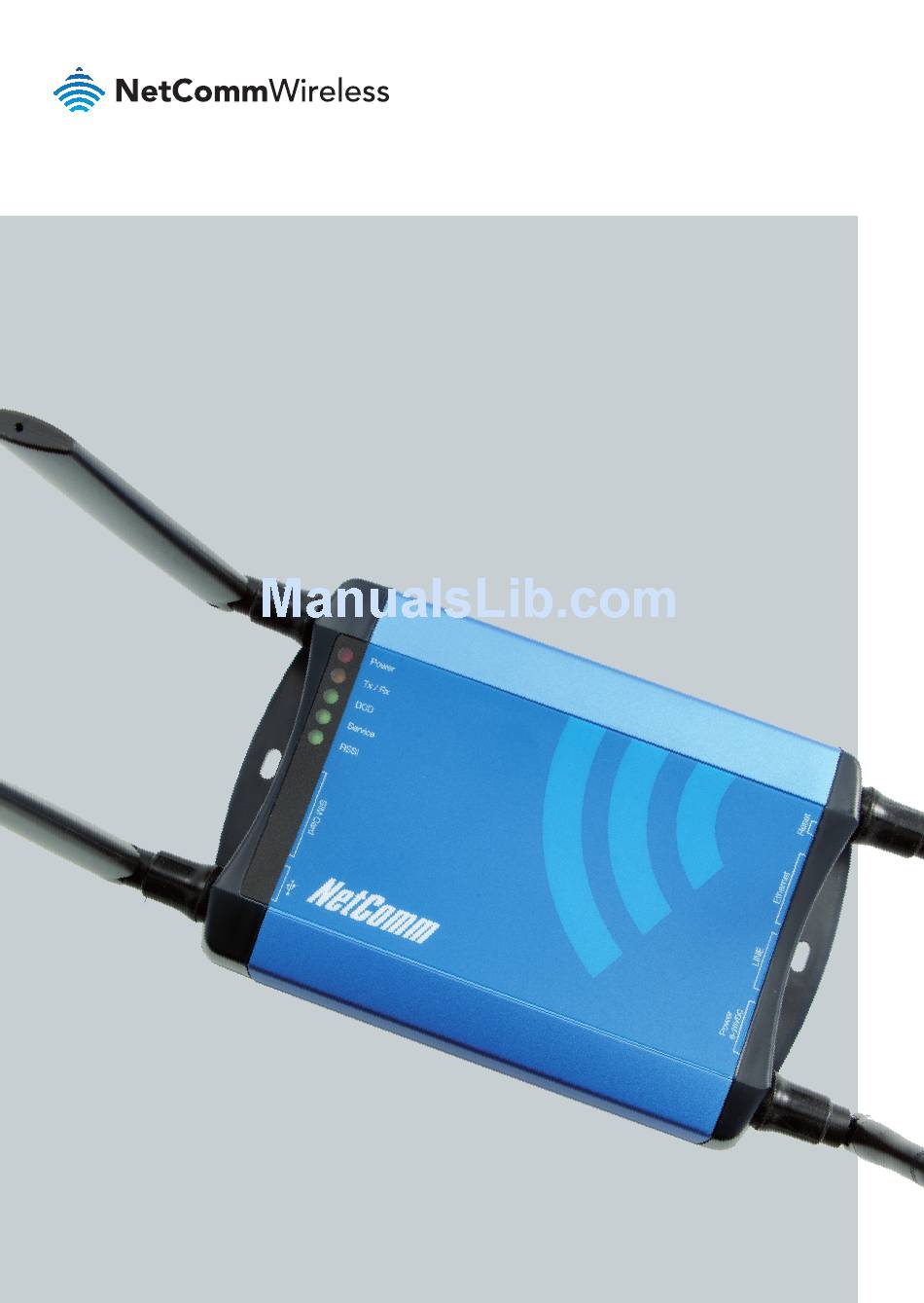

- Page 1 Quick Start Guide NTC-40 Series - M2M WiFi Router...
-
Page 2: Quick Start Guide
Quick Start Guide This guide covers the NTC-40 Series M2M WiFi Rotuers. This guide provides a series of step by step instructions to ensure the configuration of your router goes as smoothly as possible. Please check that you have received all the items in your package:... -
Page 3: Overview Of Leds
NTC-40 Series - M2M WiFi Router Overview of LEDs Display Description Power (red) Solid ON The red Power LED indicates correct power is applied to the DC power input jack. Tx/Rx Solid ON The amber LED will light upon data being sent to or (amber) received from the cellular network. -
Page 4: Router Interfaces
Overview of the Cellular Router Interfaces SMA Female For Main 3G antenna connection Mini USB Port For insertion of the Mini USB cable SMA Female SIM Card Bay For receive diversity For insertion and removal antenna connection of the SIM card Reverse Polarity SMA Female Jack For WiFi antennas Ethernet Port... -
Page 5: Configuring Your Router
NTC-40 Series - M2M WiFi Router Configuring your Router You will need an active SIM card to configure your router. Step 1: Insert the SIM card Press the SIM Eject button to eject SIM card bay. Make sure the SIM... -
Page 6: Step 3: Connect Your Computer
Step 3: Connect Your Computer Connect one end of the supplied Ethernet cable into the Ethernet port of your router. Connect the other end of the cable into the LAN port of your computer. Wait a few seconds for your computer to establish connection with the router. - Page 7 NTC-40 Series - M2M WiFi Router Step 4: Access Your Router’s Homepage The NTC-40 Series router’s homepage can be accessed by using the web address http://my.router, or alternately via default IP address http://192.168.1.1. This URL opens the management console, where you can: View the status of your router.
-
Page 8: Step 5: Unlocking The Sim
Step 5: Unlocking the SIM If the SIM card is locked you will need to unlock it with the appropriate PIN code. You can find out if the SIM is locked by viewing the SIM Status on the Status page: If the SIM Status is “SIM PIN Required”, then follow the steps below to unlock the SIM card: From the menu, select Internet Settings ->... -
Page 9: Step 6: Connect To The Internet
NTC-40 Series - M2M WiFi Router Step 6: Connect to the Internet Your router should automatically connect to the Internet if the SIM status reads “SIM OK”. If it does not, follow the steps listed below to setup the Mobile Broadband connection. - Page 10 Select a profile name from the pull down menu to save the profile settings. You can configure and save the mobile broadband settings the router will use to connect to a particular network. Enter the connection details (APN Name) provided by your mobile broadband service provider.
- Page 11 NTC-40 Series - M2M WiFi Router Wireless LAN Connection The WiFi Network Name (SSID) and WiFi Security Key are unique for your device and are printed on the back of your NTC-40 Series router. The credentials are also printed on the Wireless Security Card. NetCommWireless...
-
Page 12: Product Warranty
Product Warranty NetComm Wireless products have a standard 12 months warranty from date of purchase. Technical Support For firmware updates or if you have any technical difficulties with your product, please refer to the support section of our website. support.netcommwireless.com...
