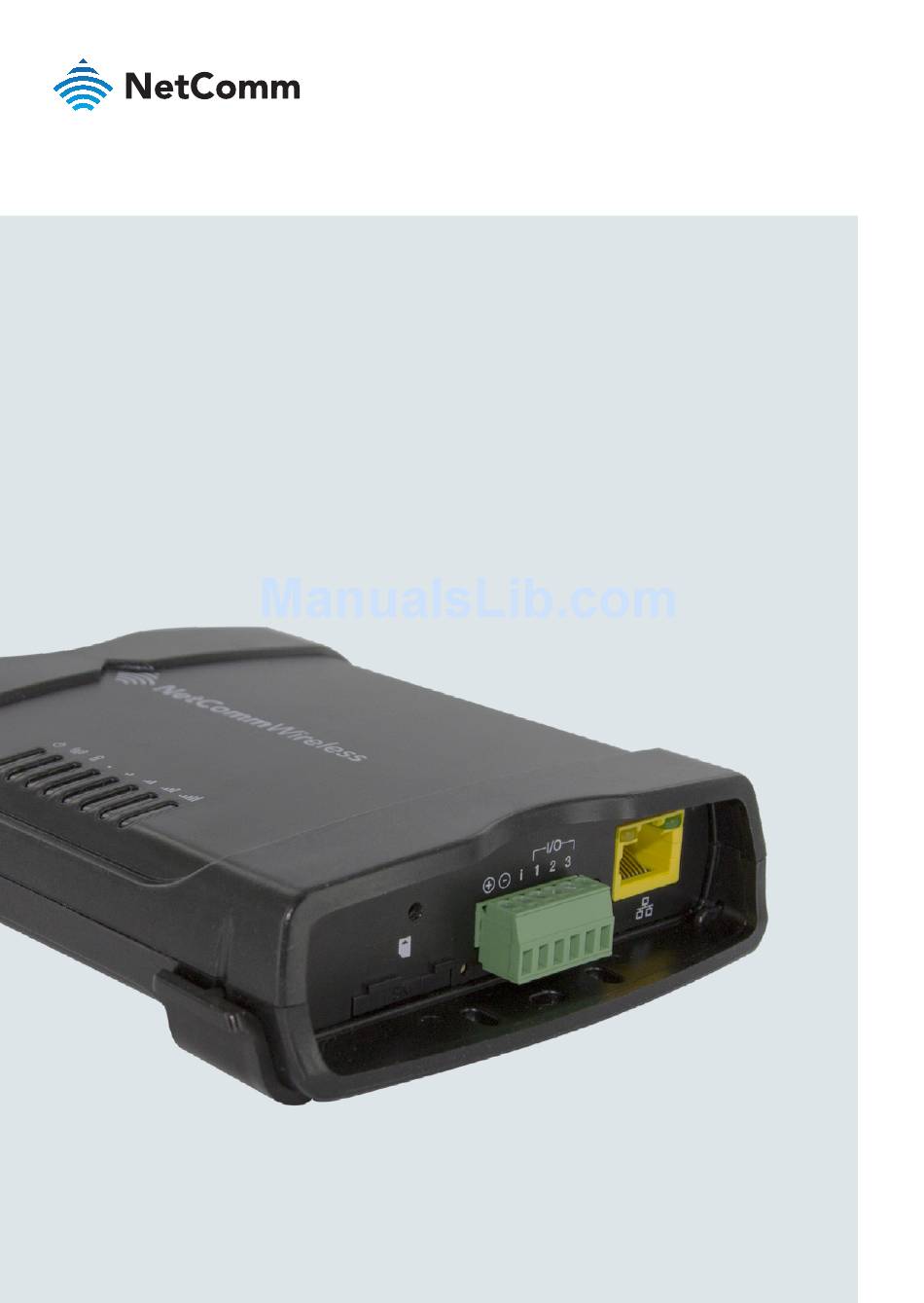

- Page 1 Quick Start Guide 3G M2M Router / Plus NTC-6200 Series...
-
Page 2: Package Contents
NTC-6200 Series router. More advanced set up instructions can be found in the user guide which can be downloaded from www.netcommwireless.com/product/m2m/ntc-6200. Package contents This package includes 1 x NetComm Wireless NTC-6200 Series router (NTC-6200-01 shown) 1 x Six-way terminal block (NTC-6200-01, NTC-6200-02, NTC-6200-11 and NTC-6200-12 only) 2 x 3G antennas 1 x DIN rail mounting bracket 1 x 1.5m Yellow Ethernet cable 8P8C... - Page 3 NTC-6200 Series - 3G M2M Router / Plus...
-
Page 4: Device Overview
Ethernet port port can also optionally receive Power over Ethernet (802.3af PoE) in which case the DC power supply can serve as a backup power source if required. (PoE available on NTC-6200-01 and NTC-6200- 11 only). Aux antenna SMA female connector for auxiliary antenna (receive diversity). - Page 5 NTC-6200 Series - 3G M2M Router / Plus 1 2 3 l0l0l SERIAL MAIN...
- Page 6 Device overview NTC-6200-03 and NTC-6200-13 models ITEM DESCRIPTION SIM card slot Insert SIM card here. Two-way Connect power source wires here. Power wires may be terminated terminal block on the supplied terminal block and connected to a power source. connector Refer to the diagram and table under Step 5 of the Installing your device section for correct wiring of the terminal block.
- Page 7 NTC-6200 Series - 3G M2M Router / Plus l0l0l SERIAL MAIN...
-
Page 8: Getting Started
Flathead screwdriver for terminating power input wires. Notebook or PC for advanced configuration. Additional fasteners and screwdrivers for specific wall/rail mounting. Mounting options The NetComm Wireless NTC-6200 Series router can be installed quickly and easily in a variety of locations. MOUNT TYPE DESCRIPTION... -
Page 9: Wall Mount
NTC-6200 Series - 3G M2M Router / Plus 1. Wall mount 4. Pole mount using DIN rail bracket 2. Wall mount via DIN rail bracket 3. DIN rail mount 5. Desk mount V Bend allows you to snap the DIN bracket onto the middle of a DIN rail rather than sliding it onto the end. -
Page 10: Overview Of Led Indicators
Overview of LED indicators NAME COLOR STATE DESCRIPTION ICON Power Power off Double flash Powering up Power on Power on in recovery mode Slow flashing Hardware error Network Connected via WWAN Blinking Traffic via WWAN Slow flashing Connecting PDP Registered network Slow flashing Registering network Slow flashing... -
Page 11: Installing Your Device
NTC-6200 Series - 3G M2M Router / Plus Installing your device Step 1: Insert the SIM card Press the SIM Eject button to eject the SIM card tray. Place the SIM card in the tray and then insert the loaded tray into the SIM slot with the gold side facing up, as shown below. - Page 12 Step 2: Fix the SIM tray cover to the device (optional) If you wish to protect the SIM card from tampering, use a Torx screwdriver to fix the SIM tray cover to the router with the supplied Torx screw. Step 3: Remove the antenna caps The NTC-6200 Series router is shipped with caps on the Main, Auxiliary and on the GPS antenna sockets for those models equipped with GPS.
-
Page 13: Step 4: Attach The Antenna
NTC-6200 Series - 3G M2M Router / Plus Step 4: Attach the antenna Screw the antennas onto the sockets by turning them in a clockwise direction. Please refer to the Device overview section for the antenna socket layout. If you have an NTC-6200 Series router with GPS and have purchased a GPS antenna, remove the socket cap from the GPS antenna socket and attach the antenna to the socket in the same manner. -
Page 14: Dc Power Via Field Terminated Power Source
Three terminals used for input/output detection (please refer to the User Guide) 1 - NTC-6200-01, NTC-6200-02, NTC-6200-11 and NTC-6200-12 models only The green power LED on the router lights up when a power source is connected. Tip: You can connect both the PoE and DC power sources at the same time. When both are connected, the DC power acts as backup to the PoE input (PoE option available on the NTC-6200-01 and NTC-6200-11 only). -
Page 15: Admin Account
NTC-6200 Series - 3G M2M Router / Plus Attach the supplied yellow Ethernet cable 8P8C to the LAN Ethernet port on your router and the other end to your computer. Step 7: Access the router’s web interface In your web browser’s address bar enter http://192.168.1.1/. The login page is displayed. -
Page 16: Step 8: Unlock The Sim Card
Step 8: Unlock the SIM Card If the inserted SIM card is PIN locked, a pop-up window is displayed informing you that you must unlock the SIM before use. Click the OK button. The SIM Security page is displayed. In the Current PIN field, enter the SIM PIN and then enter it again in the Confirm current PIN field. -
Page 17: Step 9: Connect To The Internet
NTC-6200 Series - 3G M2M Router / Plus Step 9: Connect to the Internet If the SIM Status is OK, the NTC-6200 Series router automatically attempts to connect to the Internet by detecting the correct APN and connection details. If automatic configuration was unsuccessful, you must manually enter the connection details. - Page 18 Verifying the connection status Click on the Status menu item from the top menu bar. The Status page is displayed. The mobile broadband connection is established successfully if the Status field in the WWAN connection status section displays Connected.
-
Page 19: Configuring Multiple Devices
NTC-6200 Series - 3G M2M Router / Plus Configuring multiple devices To apply your advanced configuration settings to more than one NTC-6200 Series router, follow these simple steps. Step 1 Back up your router’s configuration Log in to the web configuration interface, click on the System menu, select System configuration and click on Settings backup and restore. - Page 20 Step 2 Restore your backup configuration In the web configuration interface click on the System menu, select System configuration and click on Settings backup and restore. From the Restore saved settings section, click on Choose a file and select the backup configuration file on your computer. Click Restore to copy the settings to the new NTC-6200 Series router.
-
Page 21: Safety And Product Care
European market. The wireless device is approved to be used in the member states of the EU. NetComm Wireless declares that the wireless device is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE Directive). - Page 22 EN 60950-1:2006/A11:2009+A1:2010+A12:2011 Electromagnetic compatibility (Article 3.1 (b) of the R&TTE Directive) EN 301 489-1 V1.9.2, EN 301 489-3 V1.4.1, EN 301 489-7 V1.3.1 EN 301 489-17 V2.2.1 (NTC-6200-01 and NTC-6200-11) EN 301 489-24 V1.5.1 EN 55022:2010/ AC:2011 Class B, EN55024: 2010 EN 61000-3-2:2006/A1:2009/A2:2009, EN 61000-3-3:2008 Radio frequency spectrum usage (Article 3.2 of the R&TTE Directive)
-
Page 23: Fcc Statement
NTC-6200 Series - 3G M2M Router / Plus FCC statement FCC compliance Federal Communications Commission Notice (United States): Before a wireless device model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure.FCC regulations FCC regulations This device complies with part 15 of the FCC Rules. -
Page 24: Electrical Safety
IC regulations This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. -
Page 25: Product Handling
NTC-6200 Series - 3G M2M Router / Plus Product handling You alone are responsible for how you use your device and any consequences of its use. You must always switch off your device wherever the use of a mobile phone is prohibited. Do not use the device without the clip-on covers attached, and do not remove or change the covers while using the device. -
Page 26: Faulty And Damaged Products
Children Do not leave your device and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or could accidentally damage the device. Your device contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard. -
Page 27: Interference In Cars
NTC-6200 Series - 3G M2M Router / Plus Hospitals Switch off your wireless device when requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment. Interference in cars Please note that because of possible interference to electronic equipment, some vehicle manufacturers forbid the use of devices in their vehicles unless an external antenna is included in the installation. -
Page 28: Product Warranty
For firmware updates or if you have any technical difficulties with your product, please refer to the support section of our website. support.netcommwireless.com NETCOMM WIRELESS LIMITED ABN 85 002 490 486 Head Office, 18-20 Orion Road Lane Cove, Sydney, NSW 2066, Australia...
