User Guide Appendix
Optional GPS functionality on NTC-223
Doc No. UG01192

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NTC-223 and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm NTC-223

Summary of Contents for NetComm NTC-223

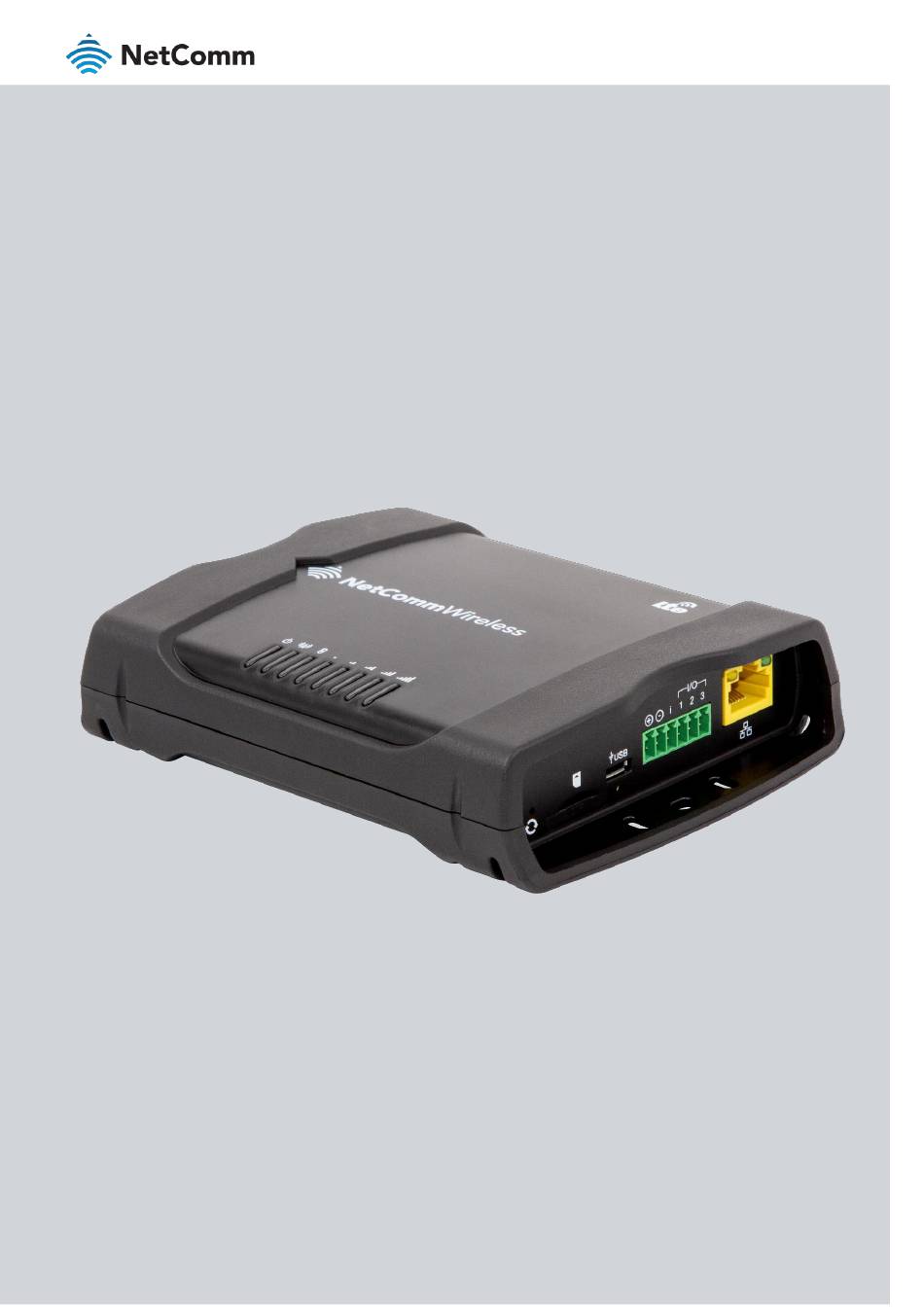

  • Page 1 User Guide Appendix Optional GPS functionality on NTC-223 Doc No. UG01192...

  • Page 2: Table Of Contents

    Copyright© 2019 NetComm Wireless Limited. All rights reserved. NetComm Wireless Limited was acquired by Casa Systems, Inc. a Delaware company on 1 July 2019. The information contained herein is proprietary to Casa Systems, Inc. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of Casa Systems, Inc.

  • Page 3: Overview

    Overview GPS Functionality on the NTC-223 The standard NTC-223 router does not have a dedicated GPS antenna socket and its standard user interface contains no references to any GPS settings or other GPS related functionality. GPS functionality on the NTC-223 is available if users connect an optional Navisys GR-701U GPS Receiver antenna into the Micro USB port.

  • Page 4: Physical Gps Connection And Indicators

    Connect the Navisys GR-701U GPS Receiver antenna’s Type A USB cable connector to a Micro USB adaptor. Plug the Micro USB adaptor into the Micro USB port on the side of the NTC-223. When the antenna is powered on an orange light will appear on the top of the GPS antenna.

  • Page 5: Gps Led Indicators

    GPS LED indicators The NTC-223 router uses eight LEDs to display the current system and connection status. One of the LED lights is dedicated to GPS or can be customised for use by some of the other functions of the NTC-223.

  • Page 6: Gps Services

    GPS Services When a GPS antenna is not connected to the NTC-223 the Services menu will not include the GPS item and its sub- menu. NTC-223 Services menu without GPS antenna NTC-223 Services menu with Navisys GR-701U connected USB GPS antenna connected...

  • Page 7: Gps Configuration

    Note – Mobile Station Based Assisted GPS is not supported on the NTC-223 with the Navisys GR-701U GPS Receiver. GPS configuration To activate the GPS functionality, log in to the NTC-223 user interface and select Services from the top menu, then click GPS and select GPS Configuration from its submenu.

  • Page 8: Gps Status

    Figure 6 – GPS applications – Google maps To confirm your location, click on the Google maps button. The Google Maps website will open in a new tab and a red marker will indicate the NTC-223’s current location on the Google map. Figure 7 – GPS configuration Zoom in to display your precise location.

  • Page 9: Odometer

    Specifies the Minimum distance that the router must travel from its current position before the Odometer reading increases. Table 2 – Odometer configuration options Optional GPS functionality on NTC-223 – User Guide Appendix 9 of 13 UG01192 v1.0 20 August 2019...

  • Page 10: Geofence

    Geofence allows you to designate a circular area and then uses the router’s GPS position to monitor when the NTC-223 router moves out of or into that area. You can configure notifications to be sent when the unit enters or exits the region.
  • Page 11 When Display decimal degree is selected you have to enter the Latitude and Longitude coordinates using Decimal degree coordinates: Optional GPS functionality on NTC-223 – User Guide Appendix 11 of 13 UG01192 v1.0 20 August 2019 © NetComm Wireless 2019...
  • Page 12 Closes the Add/Edit page and returns to the Geofence list Cancel button without saving any changes. Table 4 – Add Geofence options Optional GPS functionality on NTC-223 – User Guide Appendix 12 of 13 UG01192 v1.0 20 August 2019 © NetComm Wireless 2019...

  • Page 13: Event Notification

    NTC-220 Series User Guide (v1.6) at page 114. Data stream manager When GPS functionality is enabled on the NTC-223 router, the GPS data Endpoint type is added to the drop-down list of types in the Add endpoint dialog of the Data stream Manager.
