- Page 1 Quick Start Guide 4G WiFi M2M Router NTC-140W Series...
-
Page 3: Package Contents
Help tab on the Web-UI, or can be downloaded from http://www.netcommwireless.com/product/m2m/ntc-140w Package contents All NTC-140W packages include: 1 x NetComm Wireless NTC-140W Series router 2 x Cellular antennas 2 x WiFi antennas 1 x 1.5m Black Ethernet cable 1 x DIN rail mounting bracket... -
Page 4: Device Overview

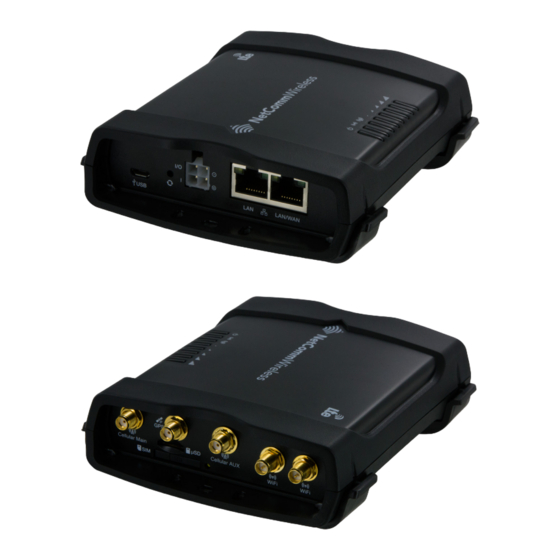

Device overview LAN/WAN Cellular AUX µSD Cellular Main WiFi WiFi ITEM DESCRIPTION SIM card slot Insert SIM card here. Cellular Main SMA female connector for Cellular antennas. MicroSD card slot Insert a MicroSD card here to provide additional storage (Optional). GPS antenna connector SMA female connector for GPS antenna. - Page 5 NTC-140W Series - 4G WiFi M2M Router LAN/WAN ITEM DESCRIPTION Micro USB 2.0 Provides connectivity for optional external storage or a USB Ethernet OTG port dongle. Supplies up to 0.5A to connected device. Reset button Press and hold for less than 5 seconds to reboot to normal mode. The LEDs are green and extinguish in sequence to indicate that the router will reboot normally if the button is released during this period.
-
Page 6: Overview Of Led Indicators
Overview of LED indicators NAME COLOR STATE DESCRIPTION ICON Power Power off Double flash Powering up Power on Power on in recovery mode Slow flashing Hardware error, such as SIM not inserted. WiFi Radio Off WiFi Access Point is enabled Blinking Traffic via WiFi WiFi Client mode is enabled, WiFi Access... -
Page 7: Power Supply Cable
NTC-140W Series - 4G WiFi M2M Router Power supply cable The included power supply cable has colour-coded breakout wires which can be terminated to provide power, ignition detection and input/output functionality. The picture below outlines the polarity and functions of the wires. Power Ground (−) -
Page 8: Installing Your Device
Installing your device Step 1: Insert the SIM card LAN/WAN Using a paper clip, press the SIM Eject button to eject the SIM card tray. Place the SIM card in the tray and then insert the loaded tray into the SIM slot with the gold side facing up, as shown below. -
Page 9: Step 3: Connect The Power And Ethernet Cables
NTC-140W Series - 4G WiFi M2M Router Step 3: Connect the power and Ethernet cables Connect the included power supply cable to the Molex Mini-Fit™ receptacle and then connect the green and white breakout wires to the ignition and I/O connections as required. - Page 10 Step 4: Access the router’s web interface In your web browser’s address bar enter http://192.168.1.1/ or http://my.router/. The login page is displayed. There are two system management accounts (Root Manager and Admin) with different management capabilities. Root Manager account Grants full privileges such as firmware upgrades, device configuration, backup and restore, and reset to factory default settings.
-
Page 11: Step 5: Unlock The Sim Card
NTC-140W Series - 4G WiFi M2M Router Step 5: Unlock the SIM card If the inserted SIM card is PIN locked, a pop-up window is displayed informing you that you must unlock the SIM before use. Click the OK button. The SIM Security page is displayed. In the Current PIN field, enter the SIM PIN and then enter it again in the Confirm current PIN field. -
Page 12: Step 6: Connect To The Internet
Step 6: Connect to the Internet If the SIM Status is OK, the NTC-140W Series router automatically attempts to connect to the Internet by detecting the correct APN and connection details. If automatic configuration was unsuccessful, you must manually enter the connection details. - Page 13 Follow these steps to connect your client device to the Internet over the wireless network: Wireless Security Card Keep this card in a secure place for easy access to your NetComm Wireless M2M device NetComm 1234 Wireless Network Name (SSID) ABCDE12345...
- Page 14 Connecting the NTC-140W Series router to another access point To use your NTC-140W router as a client, you must first change the wireless mode on the web user interface. To enable the wireless client: From the top menu bar, select the Networking option. Select Wireless settings on the left, then select the Client configuration menu item.
-
Page 15: Step 7: Mount The Router
NTC-140W Series - 4G WiFi M2M Router Step 7: Mount the router Mount your router in a suitable location using the options listed in the Mounting options section. When selecting a location to mount the NTC-140W Series router, keep in mind that it features high performance antennas designed to provide optimum signal strength in a wide range of environments. -
Page 16: Mounting Your Device
Depending on your individual setup, you may need certain components to mount your device correctly, such as additional fasteners and screwdrivers for specific wall or rail mounting. Mounting options The NetComm Wireless NTC-140W Series router can be installed quickly and easily in a variety of locations. MOUNT TYPE DESCRIPTION... - Page 17 NTC-140W Series - 4G WiFi M2M Router Wall mount DIN Rail mounting bracket V Bend allows you to snap the DIN bracket onto the middle of a DIN rail rather than sliding it onto the end. Wall Mounted via DIN Rail Bracket DIN Rail mount Pole mount using DIN Rail bracket Desk mount...
-
Page 18: Configuring Multiple Devices
Configuring multiple devices To apply your advanced configuration settings to more than one NTC-140W Series router, follow these simple steps. Step 1 Back up your router’s configuration Log in to the web configuration interface, click on the System menu, select System configuration and click on Settings backup and restore. - Page 19 NTC-140W Series - 4G WiFi M2M Router Step 2 Restore your backup configuration In the web configuration interface click on the System menu, select System configuration and click on Settings backup and restore. From the Restore saved settings section, click on Choose a file and select the backup configuration file on your computer.
- Page 20 Safety and product care Please refer to the user guide for safety and product care information. NETCOMM WIRELESS LIMITED ABN 85 002 490 486 Head Office, 18-20 Orion Road Lane Cove, Sydney, NSW 2066, Australia +61 2 8205 3888 +61 2 9424 2010 m2msales@netcommwireless.com...
