Trailing Edge Sensor Removal - Lexmark MS315 Service Manual

8

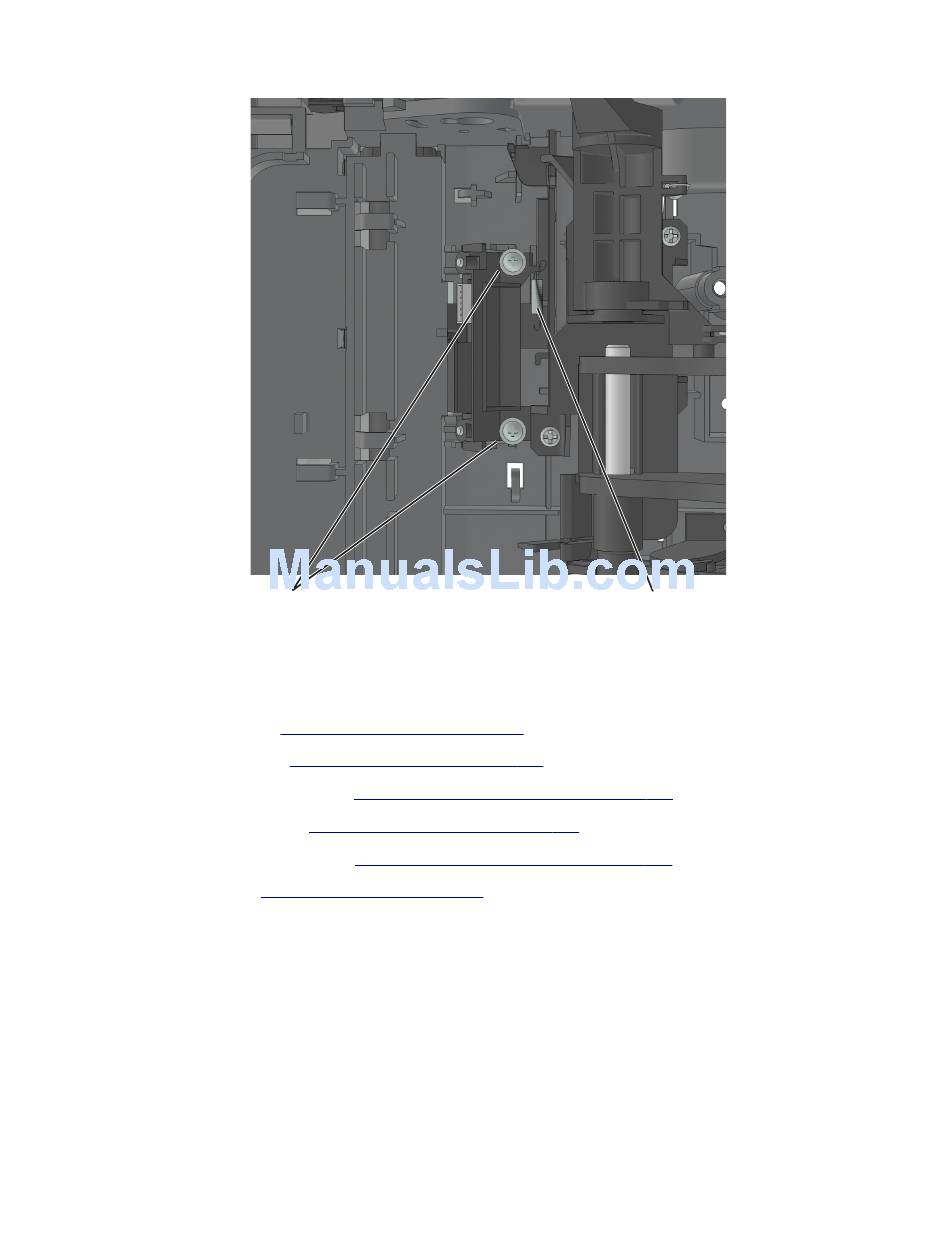

Remove the two screws (B), and then remove the sensor.
9
Disconnect the cable from the sensor.

Trailing edge sensor removal

1
Remove the left cover. See
2
Remove the right cover. See
3
Remove the rear door and cover. See
4
Remove the power supply. See
5
Remove the power supply shield. See
6
Remove the duplex. See
7
Disconnect the cable JACM1 from the controller board, and cut it near the frame.
B
"Left cover removal" on page
"Right cover removal" on page
"Rear door and cover removal" on page
"Power supply removal" on page
"Power supply shield removal" on page
"Duplex removal" on page
Repair information
168.
185.
216.
218.
222
A
232.
217.
4514
