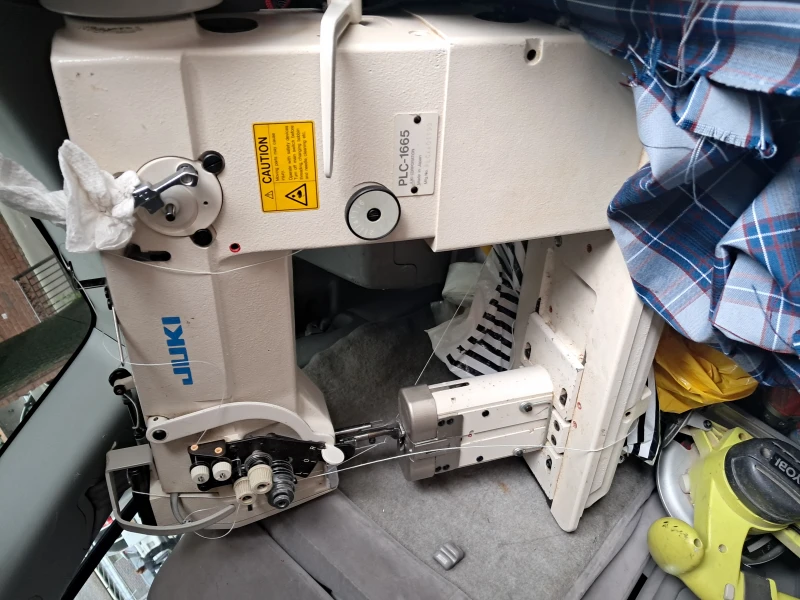

Manual juki 1665 doble aguja wackenfut

User image 682637e49a7b5
0
1 comments:
Mr. Anderson
May 22, 2025

The manual for the JUKI DDL-5530N is not for a double needle walking foot machine. Instead, it is for a lockstitch machine with features such as a vertical-axis hook, automatic lubrication, and optional auto-lifter and compensation stitching switch. The weight of the machine head is 43 kg, and it uses a single needle (DP×5). There is no mention of a double needle walking foot in the provided manual.

This answer is automatically generated

0
Josefina Manalo
May 23, 2025

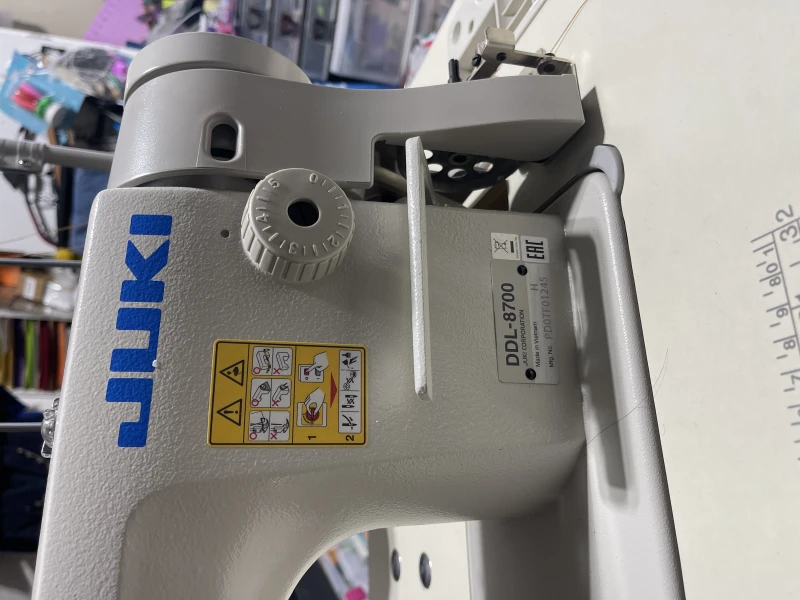

I just bought a JUKI DDL-8700/H and it doesn’t come with the manual. I need to download the manual that I bought

User image 6830b9da8bb2f
0

Subscribe to Our Youtube Channel

Related Manuals for JUKI DDL-5530N

Summary of Contents for JUKI DDL-5530N

  • Page 2 1-needle, Lockstitch Machine Button Sewing Machine Automatic Machine DDL-5530N • DDL-5550N • DDL-5550N-7 MB-1800B • MB-1800A/BR10 AMB-187N • AMB-189N • AMB-187NR • AMB-189NR DDL-8700 • DDL-8700-7 MB-372 • MB-373 SERIES FLS-350NA • FLS-350NB DDL-9000 MB-377 • MB-377A/BR10 ASN-395L • ASN-395T • ASN-397 DDL-5600N •...

  • Page 3: Specifications

    For JE: 134 (Nm75) For JE: 134 (Nm65) For JE: 134 (Nm130) Hook Automatic-lubricating full-rotary hook Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Model name DDL-5550N-7 DDL-5550NA-7 DDL-5550NH-7 Application For medium-weight materials For light-weight materials For heavy-weight materials Max.
  • Page 4 This device can be installed on the back of the face plate. It is very convenient for frequent use. To mount the optional devices onto the machine after the setup, the optional PWB A Part No.: M9701-461-0A0 (separately available) will be required. Remaining bobbin thread detector (AE-4) Material edge sensor (ED-2) DDL-5530N, 5550N, 5550N-7 (June, 2001) 2/2...
  • Page 5 The machine inherits the desirable features, such as high-speed stitching performance, extreme stitching performance, ease of operation, and reliability, from the highly evaluated previous JUKI DDL-8700-7-WB/CP-160 lockstitch machines. The thread take-up, hook, thread path, presser foot and feed mechanisms have been thoroughly investigated and modified to enable low-tension sewing.
  • Page 6 WHEN YOU PLACE ORDERS DDL-8700 DDL-8700 Application Code Wiper and automatic reverse feed function Auto-lifter Code (optional) For medium-weight materials Automatic reverse Wiper Code feed function Not provided For light-weight materials Not provided Provided Provided For heavy-weight materials (AK85) Provided Provided PSC box/control panel/motor for SC SC800-...
  • Page 7 Automatic lubrication hook (plastic hook with special-purpose race surface) Lubrication No lubrication Minute-quantity lubrication to needle bar and hook Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from 300mm needle to machine arm Size of bed 517mm 178mm...

  • Page 8: Control Panel Specifications

    OPTIONS Model Part No. Description Feature AK118 Auto-lifter This switch, mounted on the reverse feed switch, enables handy control of various functions. 236-32656 Optional switch It is especially effective when operating the machine while standing. When the amount of remaining bobbin thread reaches the setting, the buzzer will sound to warn Remaining bobbin the operator not to press, on the front part of the foot pedal.
  • Page 9 For JE: 134 (Nm130) Thread #30 #8, B46 B92, Nm=60/3 30/3 Hook Horizontal-axis double-capacity hook Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Model name DDL-5600NJ-7 DDL-5600NL-7 DDL-5600NR-7 Application For jeans For heavy-weight materials For leather shoes Max.
  • Page 10 WHEN YOU PLACE ORDERS DDL-5600N Application Code Wiper and automatic reverse feed function Auto-lifter (optional) Code For jeans Automatic reverse Not provided Wiper Code feed function For heavy-weight materials Provided (AK85) Not provided Provided For leather shoes (with roller presser foot) Provided Provided (for DDL-5600NJ-7)
  • Page 11 For JE: 134 (Nm90) For JE: 134 (Nm130) For JE: 134 (Nm130) Hook Automatic-lubricating full-rotary hook Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Model name DLN-5410N-7 DLN-5410NH-7 DLN-5410NJ-7 Application For light- to medium-weight materials For heavy-weight materials For jeans Max.
  • Page 12 WHEN YOU PLACE ORDERS DLN-5410N DLN-5410N Application Code Application Code Wiper and automatic reverse feed function Auto-lifter Code (optional) For light- to For light- to Automatic reverse Wiper Code medium-weight materials medium-weight materials feed function Not provided For heavy-weight materials For heavy-weight materials Not provided Provided...
  • Page 13 DB 1 (#14), For JE: 134 (Nm90) 134 (Nm90) Hook Automatic-lubricating full-rotary hook Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Automatic reverse feed function Provided as standard Single-phase 100 120V, 200 240V Power requirement 3-phase 200 240V Power consumption...
  • Page 14 WHEN YOU PLACE ORDERS DLU-5490N DLU-5490N Application Code Application Code Wiper and automatic reverse feed function Auto-lifter Code (optional) For light-weight materials For elastic materials Automatic reverse Wiper Code feed function Not provided For medium-weight materials For setting zipper (right) Not provided Provided Provided...
  • Page 15 DB 1 (#14), For JE: 134 (Nm90) Hook Automatic-lubricating full-rotary hook Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Automatic reverse feed function Provided as standard Power requirement Single-phase 100 120V, 200 240V, 3-phase 200 240V Power consumption...
  • Page 16 WHEN YOU PLACE ORDERS DLU-5494N Gauge set Wiper and automatic reverse feed function Auto-lifter (optional) Code Application Code Automatic reverse Not provided Wiper Code feed function For light-weight materials (standard) Provided (AK85) Not provided Provided Note: Various gauges other than those shown are also available. Provided Provided PSC box/control panel/motor for SC...
  • Page 17 DB 1 (#14), For JE: 134 (Nm90) Hook Automatic-lubricating full-rotary hook Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Automatic reverse feed function Provided as standard Single-phase 100 120V, 200 240V Power requirement 3-phase 200 240V...
  • Page 18 WHEN YOU PLACE ORDERS DLD-5430N-7- Wiper and automatic reverse feed function Auto-lifter Code (optional) Automatic reverse Wiper Code feed function Not provided Not provided Provided Provided (AK85) Provided Provided PSC box/control panel/motor for SC SC800- PSC box Code Control box Code Control panel Code...
  • Page 19 Hook Automatic-lubricating full-rotary hook Max. thickness of the material to be cut Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Weight of the machine head 30kg WHEN YOU PLACE ORDERS DLM-5200N DLM-5210N/ N01 Sub-gauge type...
  • Page 20 DLM-5200N SUB-GAUGE SET LIST Throat plate Throat plate Hinging presser Specifications Gauge Throat plate Gauge Chip guide Feed dog Knife cover (asm.) chip guard (asm.) of the width sub-gauge 2.4mm 113-46004 B1115-530-0AD B1190-522-X00 113-46905 113-46400 B1524-522-NB0A B1613-522-N00A B4121-522-000 (3/32") 3.2mm 113-46004 B1115-530-0AD B1190-522-S00...
  • Page 21 Automatic-lubricating full-rotary hook Max. thickness of the material to be cut Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Automatic reverse feed function Provided as standard Power requirement Single-phase 100 120V, 200 240V, 3-phase 200 240V...
  • Page 22 WHEN YOU PLACE ORDERS DLM-5400N Sub-gauge type Wiper and automatic reverse feed function Auto-lifter (optional) Code Distance between the Automatic reverse Not provided Code Wiper Code needle and the knife feed function Provided (AK85) 3.2mm (1/8") standard Not provided Provided 2.4mm (3/32") Provided Provided...
  • Page 23 DLM-5400N-7 SUB-GAUGE SET LIST Specifications Throat plate Throat plate Hinging presser Gauge Throat plate Gauge Chip guide Feed dog Knife of the cover (asm.) chip guard (asm.) width sub-gauge 2.4mm (3/32") 113-46004 B1115-531-0AD B1190-522-X00 113-46905 113-46400 B1524-530-DB0 B1613-522-N00A B4121-522-000 3.2mm (1/8") 113-46004 B1115-531-0AD B1190-522-S00...
  • Page 24 LH-3128-7-WB/CP-160B LH-3188-7-WB/CP-160B 2-needle, Needle-feed, Lockstitch Machine 2-needle, Needle-feed, Lockstitch Machine with an Organized Split Needle Bar LH-3128 LH-3168 LH-3128-7 (with an automatic thread trimmer) LH-3168-7 (with an automatic thread trimmer) The tension applied to the bobbin thread has been reduced and the needle thread path has been thoroughly renovated The organized split needle bars which enable either the to achieve highly consistent feed of the needle thread.
  • Page 25 Organized split needle bar mechanism Not provided Lubrication Fully automatic lubrication system by means of a plunger pump Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 245mm Bed size 517mm 178mm...
  • Page 26 WHEN YOU PLACE ORDERS With an automatic thread trimmer Type Code Application Code Wiper and automatic reverse feed function Bottom-feed For light-weight materials Automatic reverse Wiper Code feed function Needle-feed For medium-weight materials Not provided Needle-feed with an organized For jeans and heavy-weight Not provided split needle bar materials...
  • Page 27 Without an automatic thread trimmer Type Code Application Code Bottom-feed For light-weight materials Needle-feed For medium-weight materials Needle-feed with an organized For jeans and heavy-weight split needle bar materials Needle-feed with large hooks Needle-feed with an organized split needle bar and large hooks LH-31 Code 11.1...
  • Page 28 ATTACHMENTS Name Application and Applicable Name Application and Applicable (Code No.) seam specifications machines (Code No.) seam specifications machines For making top center plait on men’s shirts For lapping seam in the various joining and hemming seats bed covers, etc. process including seaming sides of jeans, Top center Lapping seam...
  • Page 29 TABLE OF EXCHANGE PARTS FOR LH3100 SERIES LH-3128 Needle gauge size Throat plate Feed dog Presser foot asm. (tipdivided) Code 2.4mm (3/32") 226-35007 226-37557 226-25008 3.2mm (1/8") 226-25107 226-30107 226-37656 4.0mm (5/32") 226-25206 226-35205 226-30206 226-37755 101-52650 4.8mm (3/16") 226-25305 226-35304 226-30404 B1613-512-D0H...
  • Page 30 LH-3128/3128-7 Bed slide asm. Needle gauge size Needle gauge size Front metal Inner metal (with thread trimmer) Bed Slide asm. Bed Slide asm. (left) (right) Code Code 2.4mm (3/32") 2.4mm (3/32") 226-50857 226-50352 B1802-512-0A0A B1803-515-0A0 11.4mm (7/16") 22.2mm (7/8") 12.7mm (1/2") 25.4mm (1") 226-50956 226-50451...
  • Page 31 LH-3168 Needle gauge size Throat plate Feed dog Presser foot asm. (tipdivided) Code 3.2mm (1/8") 226-25107 226-30107 226-37656 4.0mm (5/32") 226-25206 226-35205 226-30206 226-37755 101-52650 4.8mm (3/16") 226-25305 226-35304 226-30404 B1613-512-D0H 226-37854 101-52759 226-40353 5.6mm (7/32") 226-25404 226-35403 226-30503 B1613-512-E0H 226-37953 101-52858 226-40452...
  • Page 32 LH-3178 Needle gauge size Throat plate Feed dog Presser foot asm. (tipdivided) Code 2.4mm (3/32") 3.2mm (1/8") 226-25107 226-30107 226-37657 4.0mm (5/32") 226-25206 226-30206 101-52650 4.8mm (3/16") 226-25305 226-30404 228-15401 101-52759 228-16557 5.6mm (7/32") 226-25404 226-30503 228-15500 101-52858 228-16656 6.4mm (1/4") 226-25503 226-30602 228-15609...
  • Page 33 LH-3178/3178-7 Bed slide asm. Needle gauge size Needle gauge size Front metal Inner metal (with thread trimmer) Bed slide asm. Bed slide asm. (left) (right) Code Code 2.4mm (3/32") 2.4mm (3/32") 226-50857 226-50352 B1802-512-0A0A B1803-515-0A0 11.4mm (7/16") 22.2mm (7/8") 12.7mm (1/2") 25.4mm (1") 226-50956 226-50451...
  • Page 34 LH-3188 Needle gauge size Throat plate Feed dog Presser foot asm. (tipdivided) Code 3.2mm (1/8") 4.0mm (5/32") 4.8mm (3/16") 226-25305 228-15401 228-16557 5.6mm (7/32") 226-25404 228-15500 228-16656 6.4mm (1/4") 226-25503 228-15609 228-16755 7.1mm (9/32") 226-25602 228-15708 228-16854 7.9mm (5/16") 226-25701 228-15807 228-16953 9.5mm (3/8")
  • Page 35 LH-3120 Needle gauge size Throat plate Feed dog Presser foot asm. Needle clamp asm. Code 2.4mm (3/32") 3.2mm (1/8") 228-45200 228-47206 103-91852 101-47650 4.0mm (5/32") 4.8mm (3/16") 228-45408 228-47404 103-92058 101-47858 5.6mm (7/32") 6.4mm (1/4") 228-45606 228-47602 103-92256 101-48054 7.1mm (9/32") 7.9mm (5/16") 9.5mm (3/8") 11.1mm (7/16")
  • Page 36 Feed system Change-over between needle-feed/bottom-feed Lubrication Fully automatic lubrication system by means of a plunger pump Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 245mm Bed size 517mm 178mm Weight of the machine head...

  • Page 37: Optional Gauges

    Gauges installed at the time of delivery Needle-feed gauges Gauge size Throat plate Presser foot Feed dog Needle clamp Code Standard type For tape attachment Standard type For tape attachment (small pitch) 3.2mm (1/8") 101-47650 226-25107 232-06808 226-27152 226-47051 B1613-512-B0B 4.8mm (3/16") 101-47858 226-25305...
  • Page 38 As many as eight different corner stitching processes and eight different LH-3182-7/CP-660B patterns can be combined in a sewing program. * If your machine is equipped with JUKI’s unique reverse function (pattern inverting function), as many as 16 different corner stitching processes can be combined.
  • Page 39 WHEN YOU PLACE ORDERS Type Code Application Code Wiper and automatic reverse feed function Auto-lifter Code Needle-feed with an For light-weight Automatic reverse Not provided Wiper Code organized split needle bar materials feed function Pedal switch type Needle-feed with an For medium-weight Not provided (AK89)
  • Page 40 Link type Needle bar stroke 33.4mm Lubrication Fully automatic lubrication system by means of a pIunger pump Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from 245mm needle to machine arm Bed size 517mm 178mm Weight of the machine...
  • Page 41 WHEN YOU PLACE ORDERS Without an automatic thread trimmer Specification Code Type Code For light-weight materials Needle-feed For medium-weight materials Bottom-feed For jeans For foundation LH-11 Code Needle gauge 11.1 12.7 15.9 19.1 22.2 25.4 28.6 31.8 34.9 38.1 Model inch 3/32 5/32...
  • Page 42 Thread path is colored Needle cooler Provided as standard Weight of the machine head 25kg Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) WHEN YOU PLACE ORDERS MO-3314 E -BE6-44H/G41/Q148 Model No. Code Subclass Special Code Code specification General spec.
  • Page 43 SUBCLASS MACHINE LIST Remarks Number Max. Presser Max. stitch lifting sewing Number Number Needle Overedging Bottom feed dog length amount speed Seams Model No. Materials gauge width (mm) differential- Needle system rows (mm) (mm) (rpm) needles threads (mm) feed ratio EL = Extra light-weight materials H = Heavy-weight materials 1-needle overlock...
  • Page 44 24kg Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Needle cooler Optional: By silicon oil lubricating unit for the needle tip Needle thread heat remover Optional: By silicon oil lubricating unit for the needle thread...
  • Page 45 Remarks 2-needle overlock For runstitching in general fabric MO-3612E-CE4-40H 1: 0.7 1: 2 DC 27 #11 6,000 MO-3612E-0 6-40H 3.2, 4.0 1: 0.7 1: 2 DC 27 #11 6,000 MO-3614E-B 6-20H 4.0, 4.8 1: 0.7 1: 2 DC 27 #11 6,000 Upper looper extra high throw type...
  • Page 46 26kg Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Needle cooler Optional: By silicon oil lubricating unit for the needle tip Needle thread heat remover Optional: By silicon oil lubricating unit for the needle thread...
  • Page 47 Remarks For blind hemming L121: Blind stitch hemming attachment L122: Blind stitch hemming attachment (with automatic folder edge controlled hemming device) MO-3705E-0 4-210 – 3.2, 4.0 1: 0.7 1: 2 DC 27 #9 7,000 /L121, L122 For rolled hemming (folded downward) MO-3704E-0 5-150 –...
  • Page 48 Remarks Safety stitching For runstitching in general fabric 1: 0.7 1: 2 DC 27 #11 7,000 MO-3715E-DE4-300 MO-3716E-BD4-300 1: 0.7 1: 2 DC 27 #11 7,000 MO-3716E-D 4-300 3.2, 4.0, 4.8 1: 0.7 1: 2 DC 27 #11 7,000 MO-3716E-D 6-300 3.2, 4.0, 4.8 1: 0.7 1: 2 DC 27 #11...
  • Page 49 For swim suits For extra heavy- Jeans etc. Upper looper extra high throw type weight materials 2.0 + 2.0 JUKI Hong Kong spec. 3.2 + 2.0 (upper looper extra high throw 4.8 + 2.0 type) For newly-developed synthetic fabric...
  • Page 50 28kg Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Needle cooler Provided as standard: By silicon oil lubricating unit for the needle tip Needle thread heat remover Provided as standard: By silicon oil lubricating unit for the needle thread...
  • Page 51 Remarks For blind hemming L121 : Blind stitch hemming attachment L122: Blind stitch hemming attachment (with automatic folder edge controlled hemming device) L123: Spring-type folded-edge controlled bottom hemming device MO-3903E-0 4-210 – 3.2, 4.0 1: 0.7 1: 2 DC 27 #9 8,500 /L121, L122, L123 MO3905E-0 4-210...
  • Page 52 Remarks For tape attaching G39, G02, G20: Tape attaching presser foot Q141: Tape guide MO-3914E-BD6-347 1: 0.9 1: 2.6 DC 27 #11 7,000 /G20/Q141 Upper looper high throw type MO-3914E-B 6-347 3.2, 4.0 1: 0.9 1: 2.6 DC 27 #11 7,000 /G39/Q141 MO-3914E-B 6-44H...
  • Page 53 For swim suits For extra heavy- Jeans etc. Upper looper extra high throw type weight materials 2.0 + 2.0 JUKI Hong Kong spec. 3.2 + 2.0 (upper looper extra high throw 4.8 + 2.0 type) Subclass Code MO-3914 E -BD6-347/ F /G39/Q141/T039 Model No.
  • Page 54 DEVICES AND ATTACHMENTS MO-3600, MO-3700 and MO-3900 SERIES Application Model Part No. Description Feature 3600 3700 3900 Chain-off thread trimming device MAT-039001A0 For 110, 115, 220, 240V One-touch type tape cutter and chain-off thread T039 trimming device (electromagnetic type) MAT-039002A0 For 220, 380, 415, 440V MAT-040001A0 For 110, 115, 220, 240V...
  • Page 55 Application Model Part No. Description Feature 3600 3700 3900 Blind hemming device L121 MAL-121000A0 Blind stitch hemming attachment A ruler used for blind hemming in knits MAL-122001A0 For 110, 115, 220, 240V Flat upper Automatic folded-edge controlled blind hemming device knife MAL-122002A0 For 220, 380, 415, 440V...
  • Page 56 30kg Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Needle cooler Provided as standard: By silicon oil lubricating unit for the needle tip Needle thread heat remover Provided as standard: By silicon oil lubricating unit for the needle thread...
  • Page 57 SUBCLASS MACHINE LIST Remarks Number Max. Longitudinal Presser Max. Number Number Needle Overedging stitch Bottom stroke lifting sewing Seams Model No. Materials gauge width (mm) feed dog length differential- of top-feed amount Needle system speed needles threads (mm) rows (mm) feed ratio dog (mm) (mm)
  • Page 58 Remarks 2-needle overlock For runstitching in general fabric MOR-3914E-BD4-307 1: 0.7 1: 2 1 7.5 DC 27 #11 7,000 MOR-3914E-BE4-307 1: 0.7 1: 2 1 7.5 DC 27 #11 7,000 MOR-3914E-BD6-307 1: 0.7 1: 2 1 7.5 DC 27 #11 7,000 MOR-3914E-BE6-307 1: 0.7 1: 2...
  • Page 59 Remarks Safety stitching For runstitching in general fabric MOR-3916E-BE4-300 1: 0.7 1: 2 1 7.5 DC 27 #11 7,000 MOR-3916E-DD4-300 1: 0.7 1: 2 1 7.5 DC 27 #11 7,000 MOR-3916E-DE4-300 1: 0.7 1: 2 1 7.5 DC 27 #11 7,000 MOR-3916E-DF4-300 1: 0.7 1: 2...
  • Page 60 AK65 (with an electronic-stop motor or AC servomotor) MC-7A • MC-8 T039 AK101 (for JUKI AC servomotor) MC-9 (MC-9 is equipped with an auto-lifter) AK32 (any motor will do) MC-7A AK65 (with an electronic-stop motor or AC servomotor)

  • Page 61: Guide, Ruler

    Model Part No. Description Feature Piping M056 MAM-0560J0A0 Piping folder This is a piping folder which makes a piping first, then turns up the tape. MAM-0750J0A0 Piping folder This attachment can be used for both “cotton bias tape with gimp” and “knit M075 (to be used with knit tape) tape”.
  • Page 62 Weight of the machine head 28kg Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Needle cooler By silicon oil lubricating unit for the needle tip Needle thread heat remover By silicon oil lubricating unit for the needle thread...
  • Page 63 SUBCLASS MACHINE LIST Remarks Number Max. Presser Max. Number Number Needle Overedging stitch Bottom lifting sewing Materials gauge width (mm) feed dog length differential- amount speed Seams Model No. Needle system needles threads (mm) rows (mm) feed ratio (mm) (rpm) ...
  • Page 64 SUBCLASS MACHINE LIST Remarks Number Max. Longitudinal Presser Max. Number Number Needle Overedging stitch Bottom stroke lifting sewing Seams Model No. Materials gauge width (mm) feed dog length differential- of top-feed amount Needle system speed needles threads (mm) rows (mm) feed ratio dog (mm) (mm)
  • Page 65 DEVICES AND ATTACHMENTS MOC-3900, MOF-3900 SERIES Application Model Part No. Description Feature MOC- MOF- 3900 3900 Chain-off thread trimming device T043 MAT-043000A0 Pneumatic side cutter T046 MAT-046000A0 Pneumatic side cutter Blower-type chain-off thread suction device MC-7B (chain-off thread and cloth chips) Chain-off thread suction device MC-4 Pneumatic chain-off thread suction device...
  • Page 66 28kg Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Needle cooler Optional: By silicon oil lubricating unit for the needle tip Needle thread heat remover Optional: By silicon oil lubricating unit for the needle thread...
  • Page 67 Weight of the machine head 30kg Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Needle cooler By silicon oil lubricating unit for the needle tip Needle thread heat remover By silicon oil lubricating unit for the needle thread...
  • Page 68 DEVICES AND ATTACHMENTS MOG-3700 SERIES, MOJ-3900 SERIES Application Model Part No. Description MOG- MOJ- 3700 3900 Chain-off thread trimming device MAT-039001A0 For 110, 115, 220, 240V One-touch type tape cutter and chain-off thread trimming T039 device (electromagnetic type) MAT-039002A0 For 220, 380, 415, 440V MAT-040001A0 For 110, 115, 220, 240V For semi-...
  • Page 69 Overlock Machine with a Semi-automatic Backlatch Device (1-Needle) MO-3 04E-0E6-300/LB-1 (2-Needle) MO-3 14E-BE4-307/LB-2 Variable Top-feed Overlock Machine with a Semi-automatic Backlatch Device (1-Needle) MOR-3904E-0E6-300/LB-1 (2-Needle) MOR-3914E-BE4-307/LB-2 Aided by the precise control of the stitch number provided by the material-edge sensor and SC-380 motor/controller, the tension-release mechanism is activated during production of chain-off thread at both the start and end of sewing so that thin chain-off thread can be produced.
  • Page 70 Machine head drive Compact AC servomotor (direct-drive system) Lubrication Minute-quantity lubrication to needle bar and hook Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to 300mm machine arm Bed size 517mm 178mm...

  • Page 71: Sewing Pattern

    WHEN YOU PLACE ORDERS Without an automatic thread trimmer With an automatic thread trimmer LZ-2290SS- LZ-2290S Machine head type Code Push-button-type Machine head type Code Wiper Code Device/attachment Code Code reverse feed switch Standard Standard Not provided With no device/ Not provided attachment Provided...
  • Page 72 LIST OF THE MAJOR GAUGES Max. zigzag width/ Throat plate Feed dog Presser foot (with finger guard) Remarks Max. feed pitch With a recess on the reverse side of 100-41010 100-47017 the presser foot 225-80369 Max. feed amount: 2mm 100-41101 225-80104 Light-in-weight type 225-80260...
  • Page 73 Max. zigzag width/ Throat plate Feed dog Presser foot (with finger guard) Remarks Max. feed pitch Light-in-weight type 225-48804 225-48705 225-48960 Max. feed amount: 1.3mm 225-48408 • For standard 225-48507 zigzag stitching Max. feed amount: 2.5mm Light-in-weight type 225-47962 225-48119 225-41601 225-48010 Max.
  • Page 74 Computer-controlled, Direct-drive, High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine [Dry-head type] LZ-2290DS LZ-2290DS-7 (with an automatic thread trimmer) (with an anti-material-slip capability LZ-2290DU-7 and an automatic thread trimmer) The non-lubricated head will never scatter oil, promising cleanly finished sewing products free from oil stains. Further, there will be no oil stains in the room around the machine, promising a cleaner working environment.
  • Page 75 WHEN YOU PLACE ORDERS Without an automatic thread trimmer With an automatic thread trimmer LZ-2290DS- LZ-2290D -7-WB Machine head type Code Push-button-type Machine head type Code Wiper Code Device/attachment Code Code reverse feed switch Dry head Dry head Provided With no device/ Not provided attachment Application...
  • Page 76 High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine LZ-2280N SERIES The hook driving shaft offset mechanism assures trouble-free and consistent zigzag stitching. The market-proven hook and thread take-up lever enables sewing with upgraded consistency with a lower tension applied to the thread. Greater durability is secured by preventing the hook from heating up when the machine is running at high speeds.
  • Page 77 DP hook (with a titanium-treated inner hook) Thread take-up Rotary type Lubrication Fully automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Needle SCHMETZ SCHMETZ 438 (Nm75), ORGAN DP 5 (#10) (at the time of delivery) 438SUK (#80)
  • Page 78 WHEN YOU PLACE ORDERS LZ-2280N series (without an automatic thread trimmer) LZ-228 Type Code Automatic reverse feed function Code Standard zigzag Provided Standard zigzag/with an anti-material-slip capability Not provided LZ-2284NT, -2286NT and -2285N are not classified Standard wider zigzag (with a gauge for 5mm zigzag width) by the automatic reverse feed function.
  • Page 79 OPTIONS Model Part No. Description Feature This device allows a machine without a thread trimmer to perform automatic 225-61559 Automatic reverse feed kit reverse feed function. D1501-583-H00 Presser bar Presser foot Presser The aforementioned parts are used when a lockstitching type presser foot is D1502-583-H00 connecting connecting rod...
  • Page 80 LIST OF THE MAJOR GAUGES Max. zigzag width/ Throat plate Feed dog Presser foot (with finger guard) Remarks Max. feed pitch With a recess on the reverse side of 100-41010 100-47017 the presser foot 225-80369 Max. feed amount: 2mm 100-41101 225-80104 Light-in-weight type 225-80260...
  • Page 81 Max. zigzag width/ Throat plate Feed dog Presser foot (with finger guard) Remarks Max. feed pitch Light-in-weight type 225-48705 225-48804 225-48960 Max. feed amount: 1.3mm 225-48408 • For standard 225-48507 zigzag stitching Max. feed amount: 2.5mm 225-47962 Light-in-weight type 225-48119 225-41601 225-48010 Max.
  • Page 82 10mm and the sewing speed is as high as 2,000rpm. Furthermore, the JUKI LZ-391N can be used as a straight stitching machine capable of running at a speed of 2,000rpm by simply setting the zigzag width to 0.
  • Page 83 Distance from needle to machine arm 270mm (from the needle entry bottom of the arm) Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Model name LZ-391N Application Embroidering and zigzag stitching light-, medium-,and heavy -weight materials 2,000rpm (with a zigzag width set to 10mm) Max.
  • Page 84 UY128GAS (#70/027) #65/025 #90/036 (at the time of the delivery) Lift of the presser foot 8 mm Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) WHEN YOU PLACE ORDERS Stitch type Code Stitch length (mm) Needle gauge...
  • Page 85 DEVICES AND ATTACHMENTS Applicable models Model Description Application 7406 7407 7602 7605 Elastic tape metering device Single stage function top tape metering device Pulse motor type Two stage function top tape metering device For E12 Pulse motor type Single stage function top tape metering device Mechanical type Elastic tape cutter Pneumatic type...
  • Page 86 SUBCLASS MACHINE LIST Devices Number of Number of Needle Max. stitch Bottom Presser lifting Max. sewing Seams Model No. needles threads gauge (mm) length (mm) differential amount (mm) speed (rpm) feed ratio For universal (hemming, coverseam: foldingover-overlock seam, coverseam : flattening out) MF-7605U-U03-B56 UT13, CC1 1.8 2.5...
  • Page 87 GAUGE PARTS CONSTRUCTION CHART OF MF-7000 SERIES MF-7406-C01-D MF-7407-C01-D MF-7602-C01-D MF-7605-C01-D MF-7602-C02-B MF-7605-C02-B MF-7605-C02-B US50318AM32 S50318AM48 US50318AM40 US50318AM48 US50318AM56 US50318AM40 US50318AM56 (50318AM40) (FE) (50318AM48) (FF) US50318AM64 US50318AM64 (50318AM56) (FG) (50318AM32) (FD) (50318AM48) (FF) (50318AM64) (FG) (50318AM40) (FE) (50318AM56) (FG) (50318AM64) (FH) S.T.T S.T.T...
  • Page 88 MF-7602-E11-B MF-7605-E11-B MF-7605-E11-B MF-7602-E12-B MF-7605-E12-B MF-7605-E12-B US50318AM40 US50318AM48 US50318AM56 US50318AM64 (50318AM40) (FE) (50318AM48) (FF) (50318AM56) (FG) (50318AM64) (FH) US50324CZ40 US50324CZ48 US50324CZ56 US50324CZ64 (50324CZ40) (50324CZ48) (50324CZ56) (50324CZ64) B type B type B type N.B. N.B. N.B. US0050305CD US0050305CE (50305CD) (ZZ) (50305CE) (AAA) US0050326BY US0050326BZ...
  • Page 89 MF-7406-H01-A MF-7407-H01-A MF-7602-H01-A MF-7605-H01-A MF-7605-K02-D US50318AM32 S50318AM48 US50318AM48 US50318AM40 US50318AM56 US50318AM56 US50318AM64 (50318AM32) (FD) (50318AM48) (FF) (50318AM40) (FE) (50318AM48) (FF) (50318AM56) (FG) (50318AM56) (FG) (50318AM64) (FH) US050324D48 S.T.T S.T.T US050324D56 US50324BL48 US50324BL32 US50324BS48 (50324D48) 30281406 US034724F48 (50324D56) US50324BL40 US50324BL56 US50324BS56 30281505 30281604 US50324BL64...
  • Page 90 MF-7605-L01-A MF-7605-L21-A MF-7602-L01-A , C00 US50318AM32 US50318AM48 US50318AM56 US50318AM40 US50318AM56 US50318AM64 US50318AM64 (50318AM32) (FD) (50318AM56) (FG) (50318AM40) (FE) (50318AM48) (FF) (50318AM64) (FH) (50318AM56) (FG) (50318AM64) (FH) S.T.T S.T.T S.T.T US50324BN32 US50324BN48 US50324BN56 US50324BM32 US50324BR48 US50324BR56 US50324BN40 US50324BM48 US50324BM56 US50324BM40 US50324BN56 US50324BN64 US50324BR56 US50324BR64...
  • Page 91 MF-7605-U03-B MF-7605-U05-B MF-7605-U06-B US50318AM56 US50318AM56 US50318AM56 US50318AM64 US50318AM64 US50318AM64 (50318AM56) (FG) (50318AM56) (FG) (50318AM56) (FG) (50318AM64) (FH) (50318AM64) (FH) (50318AM64) (FH) US50324DF56 US50324DE56 US50324DF56 US50324DF64 US50324DE64 US50324DF64 (50324DF56) (50324DE56) (50324DF56) (50324DF64) (50324DE64) (50324DF64) B type B type B type N.B. N.B.
  • Page 92 UY128GAS (#70/027) #65/025 #90/036 (at the time of the delivery) Lift of the presser foot 7 mm Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) WHEN YOU PLACE ORDERS Stitch type Code Stitch length (mm) Needle gauge...
  • Page 93 DEVICES AND ATTACHMENTS Applicable models Model Description Application 7406 7407 7602 7605 Theread trimming device Electromagnetic type (mechanical wiper + auto-lifter) Electromagnetic type (top & bottom thread trimmer + auto-lifter) Pneumatic type (mechanical wiper + auto-lifter) Pneumatic type (air blow type wiper + auto-liter) Pneumatic type (top &...
  • Page 94 SUBCLASS MACHINE LIST Devices Number of Number of Needle Max. stitch Bottom Presser lifting Max. sewing Seams Model No. needles threads gauge (mm) length (mm) differential amount (mm) speed (rpm) feed ratio For universal (hemming, coverseam: foldingover-overlock seam, coverseam : flattening out) MFC-7407U-U03-B56 UT1/3/4 MFC-7407U-U03-B64...
  • Page 95 GAUGE PARTS CONSTRUCTION CHART OF MFC-7000 SERIES MFC-7602-C01-D MFC-7605-C01-D MFC-7605-C02-B US50318AN32 US50318AN56 US50318AN56 US50318AN40 US50318AN64 US50318AN64 US50318AN48 (50318AN56) (FL) (50318AN56) (FL) (50318AN32) (FR) (50318AN64) (FM) (50318AN64) (FM) (50318AN40) (FJ) (50318AN48) (FK) S.T.T S.T.T US50324AU56 30121701 30287205 US50324AU64 30121800 US34724XX64 (50324AU56) US50324XX48 (34724XX56) (50324AU64)
  • Page 96 MFC-7406-E11-D MFC-7407-E11-D MFC-7602-E11-D MFC-7605-E11-D MFC-7406-H01-A MFC-7407-H01-A MFC-7406-E61-D MFC-7407-E61-D MFC-7602-H01-A MFC-7605-H01-A MFC-7602-E61-D MFC-7605-E61-D US50318AN40 5.6 US50318AN56 US50318AN32 US50318AN56 US50318AN40 US50318AN64 US50318AN48 6.4 US50318AN64 US50318AN48 (50318AN56) (FL) (50318AN40) (FJ) (50318AN56) (FL) (50318AN48) (FK) (50318AN64) (FM) (50318AN32) (FR) (50318AN64) (FM) (50318AN40) (FJ) (50318AN48) (FK) S.T.T S.T.T...
  • Page 97 MFC-7406-H21-A MFC-7407-H21-A MFC-7602-H21-A MFC-7605-H21-A MFC-7406-H11-A MFC-7407-H11-A MFC-7406-H31-A MFC-7407-H31-A MFC-7602-H11-A MFC-7605-H11-A MFC-7602-H31-A MFC-7605-H31-A US50318AN40 US50318AN56 US50318AN40 US50318AN56 US50318AN48 US50318AN64 US50318AN48 US50318AN64 (50318AN40) (FJ) (50318AN56) (FL) (50318AN40) (FJ) (50318AN56) (FL) (50318AN48) (FK) (50318AN64) (FM) (50318AN48) (FK) (50318AN64) (FM) S.T.T S.T.T S.T.T S.T.T US50324CJ40 US50324CK56 US50324FR56...
  • Page 98 MFC-7406-K02-D MFC-7602-K02-D MFC-7406-K01-D MFC-7605-K02-D MFC-7406-K01-D US50318AN56 US50318AN48 US50318AN56 US50318AN64 (50318AN48) (FK) US50318AN64 (50318AN56) (FL) (50318AN56) (FL) (50318AN64) (FM) (50318AN64) (FM) S.T.T S.T.T S.T.T 30282404 30282503 US34724CB56 30289409 US34724CB64 (34724CA48) (34724CA56) (34724CB56) (34724CA64) (34724CB64) D type D type D type N.B. N.B.
  • Page 99 MFC-7605-U05-B MFC-7605-U06-B MFC-7605-U03-B US50318AN56 US50318AN56 US50318AN56 US50318AN64 US50318AN64 US50318AN64 (50318AN56) (FL) (50318AN56) (FL) (50318AN56) (FL) (50318AN64) (FM) (50318AN64) (FM) (50318AN64) (FM) US50324DE56 US50324DF56 US50324DF56 US50324DF64 US50324DE64 US50324DF64 (50324DE56) (50324DF56) (50324DF56) (50324DE64) (50324DF64) (50324DF64) B type B type B type N.B. N.B.
  • Page 100 This reduces the vibration of the machine during a high-speed operation, thereby leading to a consistent performance. The newly developed binder unique to JUKI is longer than conventional binders. It is therefore capable of rolling up the material smoothly, making beautifully and uniformly finished belt-loops without any twisted or irregularly rolled section.
  • Page 101 MH-380 (parallel 2-needle) MH-382 (tandem 2-needle) It comes with JUKI’s unique inclined crank type looper mechanism. This gives the machine outstanding durability. You can use the sewing machine for a long time without ever worrying about looper failure. You can easily set the machine to perform condensation stitching by operating the lever.
  • Page 102 DEVICES AND ATTACHMENTS Chain-off Applicable machines: MH-380, MH-382 Lap seam Applicable machines: MH-380 thread cutter folder Class of work: Jeans, Working wear Class of work: Jeans, Working pants, Pants, Overalls (Reverse) Applications: Cut a chaining thread bridging two Applications: Sew side seams workpieces continuously sewn by chainstitch in the way Materials: Medium heavy-weight materials and heavy- that a knife blade of the cutter is dropped.
  • Page 103 TABLE OF EXCHANGING GAUGE SETS MH-380 Description Presser foot asm. Rear moving Right fix Throat plate Needle clamp asm. Feed dog Left needle guard (with finger guard) needle guard needle guard Gauge components 3.2mm (1/8") B1103-380-B00 B1406-019-BA0 B1509-038-BB0 B1613-380-B00 4.0mm (5/32") B1103-380-C00 B1406-019-CA0 B1509-038-CB0...
  • Page 104 3.2mm Speed control Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Power consumption (1) From 500rpm to the Max. sewing speed determined by the pulley used (externally adjustable) (2) Single-phase, 3-phase (400W) APPLICATION FOR MH-481/MH-484/MH-486 SERIES...

  • Page 105: Replaceable Gauge Table

    SPECIFICATION CONFIRMATION TABLE WITH TYPES OF MACHINES Model name MH-481 MH-481-5(4) MH-484 MH-484-5(4) MH-486-5(4) Remarks Condensation stitch Use the reverse stitiching lever Revers stitch Adjust the stopper Thread clamp device Needle thread releasing device Needle thread drow-out mechanism Thread spreader Movable needle guard Sliding presser Chain-off thread presser foot for...
  • Page 106 395mm (for the machine that is not equipped with a cloth puller) of the cylinder section Lubrication Trochoidal pump type automatic lubrication Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Weight of the machine head 46kg 50kg For needle size #23 to #25, a special-order gauge is required.
  • Page 107 Model Part No. Description Pneumatic auto-lifter AK122 GAK-A22010B0 ( JUKI: The SC-380 or a commercially available needle positioning motor is required.) 311-42565 Needle cooler (pneumatic type): For MH-1410A 311-43068 Needle cooler (pneumatic type): For MH-1410B, MH-1410C 311-43167 Needle cooler (pneumatic type): For MH-1410D 311-41658 Brakedown folder bracket (asm.)
  • Page 108 Needle guard Longitudinally-fixed needle guard Backward travelling needle guard Stitch adjusting By a push-button (with a locking mechanism) system Lubrication Semi-automatic lubrication Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) MS-1190, 1260, 1261 (June, 2001) 1/5...
  • Page 109 WHEN YOU PLACE ORDERS MS-1190 MS-1260D/ Optional device-1 Optional device-2 Optional device-1 Optional device-2 Needle gauge Code 4.8mm (3/16") Application Code Needle gauge Code 3.2mm (1/8") For light-weight materials (standard) 4.0mm (5/32") MS-1261 4.8mm (3/16") For medium-weight materials 5.6mm (7/32") 6.4mm (1/4") Optional device-1 Optional device-2...
  • Page 110 TABLE OF EXCHANGING GAUGE PARTS MS-1190 Gauge set Presser foot asm. Looper asm. Looper asm. Description Throat plate Feed dog Needle clamp asm. (with finger guard) (with finger guard) Needle gauge size Code Size 129-23561 129-23504 129-26051 129-27869 129-32307 129-41555 129-40656 3.2mm (1/8") 129-23603...
  • Page 111 MS-1261/ V045 (for extra heavy-weight materials) Gauge set Needle clamp Presser foot asm. Description Throat plate Feed dog asm. (with finger guard) asm. (with finger guard) Needle gauge size Code Size 129-53360 129-53303 129-56355 129-60167 129-63450 5.6mm (7/32") 6.4mm (1/4") 129-53261 129-53204 129-56256...
  • Page 112 MS-1261M / V045 (for medium-weight materials) Gauge set Needle clamp Presser foot asm. Description Throat plate Feed dog asm. (with finger guard) asm. (with finger guard) Needle gauge size Code Size 129-72972 129-72907 129-56355 129-60183 129-75058 5.6mm (7/32") 129-72873 129-72808 129-56256 129-60084 129-74952...
  • Page 113 Computer-controlled, Dry-head, High-speed, Single-thread, Chainstitch Button Sewing Machine MB-1800B (with a wiper unit) The machine has 55 different stitching patterns as standard. In addition to the sewing shapes, the buttonhole intervals and number of stitches can also be changed on the operation panel. The machine completely supports many different button specifications to increase its range of applicability, reduce costs associated with changes in specifications, and save the operator from having to...
  • Page 114 MB-1800S, MB-1800B (with a wiper unit) WHEN YOU PLACE ORDERS OPTIONS Machine head, Circuit board Model Part No. Description Feature A wiper device and thread pulling wire used MB-1800 M8512-630-0A0 Wiper device in unison to sew buttons without cross-over (for MB-1800S) stitches.
  • Page 115 ATTACHMENT TABLE Application Sketch For MB-1800 For MB-373 For MB-377 Small- to Button size Left D2556-372-CAA Common Common large-button A: 0 6.5mm thickness B: 0 6.5mm Right D2558-372-CAA 5.0mm C: 10 28mm Button size Large-button A: 0 6.5mm MAZ-031000AA MAZ-201010A0 146-17559 thickness 3.5mm B: 0 6.5mm...
  • Page 116 MB-1800A/BR10 (with a button feeder) WHEN YOU PLACE ORDERS BUTTON CARRIER Machine head, Circuit board: with a button feeder Configuration of button carrier For 4-holed button For 2-holed button MB-1800A / BR10 Attachment Code Power supply Code For flat button For General 100 240V (small)
  • Page 117 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Motor 200W (1/4HP) single or 3-phase induction motor To set the number of stitches to 24 or 32, optional parts (separately available) stated below are require...
  • Page 118 TABLE OF MB-372 & 373 SERIES Number of Type of stitching Description Remarks stitches MB-372 8,16 or 32 MB-373 MB-372-4 a. Adjustment for 2-hole flat button can be speedily done. By means of setting the electro- 6,12 or 24 MB-373-4 magnetic wiper (Z025) and starting b.
  • Page 119 Wrapped-around button Button size Attachments Attachments in common with the attachments of for MB-372 series for MB-373 series MB-372 series & MB-373 series Wrapped-around Z004 (B2447-372-0A0) Z004 (B2447-372-0A0) button Attachment for sewing wrapped-around Attachment for sewing wrapped-around Max. 28mm (first process) button (first process) button (first process) (Note)
  • Page 120 Metal button, Snap & Label Button size Attachments Attachments in common with the attachments of for MB-372 series for MB-373 series MB-372 series & MB-373 series Z008 (B2520-372-0AA) Z038 (B2420-373-0AA) Attachment for sewing metal button Attachment for sewing metal button 16mm 7mm 5.5mm Metal button...
  • Page 121 Flat button Stitch Number MB-372 MB-373 Remarks of stitches shape MB-372/Z002 MB-373/Z032 8,16 or 32 MB-372-4/Z002 MB-373-4/Z032 6,12 or 24 MB-372-5/Z002 MB-373-5/Z032 6,12 or 24 MB-372-6/Z002 MB-373-6/Z032 6,12 or 24 MB-372-10/Z002 MB-373-10/Z032 8,16 or 32 MB-372-11/Z002 MB-373-11/Z032 8,16 or 32 MB-372-12/Z002 MB-373-12/Z032 8,16 or 32...
  • Page 122 Wrapped-around button Medium size Number Stitch MB-372 MB-373 Remarks of stitches shape MB-372/Z002/Z004 MB-373/Z032/Z004 8,16 or 32 MB-372-4/Z002/Z004 MB-373-4/Z032/Z004 6,12 or 24 MB-372-5/Z002/Z004 MB-373-5/Z032/Z004 6,12 or 24 MB-372-6/Z002/Z004 MB-373-6/Z032/Z004 6,12 or 24 Distance between the cloth and button MB-372-10/Z002/Z004 MB-373-10/Z032/Z004 8,16 or 32 is not adjustable.
  • Page 123 Large size Stitch Number MB-372 MB-373 Remarks of stitches shape MB-372/Z001/Z004 MB-373/Z031/Z004 8,16 or 32 MB-372-4/Z001/Z004 MB-373-4/Z031/Z004 6,12 or 24 MB-372-5/Z001/Z004 MB-373-5/Z031/Z004 6,12 or 24 MB-372-6/Z001/Z004 MB-373-6/Z031/Z004 6,12 or 24 Distance between the cloth and button MB-372-10/Z001/Z004 MB-373-10/Z031/Z004 8,16 or 32 is not adjustable.
  • Page 124 Flat button and wrapped-around button (first process) Medium size Number Stitch MB-372 MB-373 Remarks of stitches shape MB-372/Z002/Z172 MB-373/Z032/Z172 8,16 or 32 MB-372-4/Z002/Z172 MB-373-4/Z032/Z172 6,12 or 24 MB-372-5/Z002/Z172 MB-373-5/Z032/Z172 6,12 or 24 Medium size wrapped- MB-372-6/Z002/Z172 MB-373-6/Z032/Z172 6,12 or 24 around button (first process) Distance between...
  • Page 125 Wrapped-Around button (second process) Number Stitch MB-372 MB-373 Remarks of stitches shape MB-372/Z005 MB-373/Z035 8,16 or 32 Medium and MB-372-4/Z005 MB-373-4/Z035 6,12 or 24 large size wrapped- MB-372-5/Z005 MB-373-5/Z035 6,12 or 24 around button (second process) MB-372-10/Z005 MB-373-10/Z035 8,16 or 32 MB-372-11/Z005 MB-373-11/Z035 8,16 or 32...
  • Page 126 Shank button Number Stitch MB-372 MB-373 Remarks of stitches shape MB-372/Z003 MB-373/Z033 8,16 or 32 MB-372-4/Z003 MB-373-4/Z033 6,12 or 24 MB-372-5/Z003 MB-373-5/Z033 6,12 or 24 Standardized button size MB-372-10/Z003 MB-373-10/Z033 8,16 or 32 MB-372-11/Z003 MB-373-11/Z033 8,16 or 32 MB-372-16/Z003 MB-373-16/Z033 8,16 or 32 MB-372/Z010 MB-373/Z040...
  • Page 127 Needle (at the time of delivery) TQ 1 (#16) #14 #16 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Discrimination of button to be fed Vibration system Button feed By the horizontal, forced feed mechanism...
  • Page 128 MB-377 WHEN YOU PLACE ORDERS ATTACHMENTS FOR FLAT BUTTON Machine head For large button MB-377 Z201 Sketch Subclass models Code Button clamp unit Code 8 and 16 stitches For flat button (small) Button size A: 3 6.5mm 8 and 16 stitches For flat button (large) Z201 28mm...
  • Page 129 Button supply mode Horizontal forced button-feed mechanism Lubrication Centralized oil wick lubrication Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Sewing machine motor 400W compact AC servomotor (direct-drive system) Machine head (include motor) 41kg, Total weight 133kg Weight Control box 16.5kg...

  • Page 130: Machine Head

    LK-1903 WHEN YOU PLACE ORDERS SEWING PROGRAM TABLE Machine head Sewing Standard Standard Program Stitch thread length length shape LK-1903S (pcs.) X (mm) Y (mm) 1 • 34 2 • 35 Application Code Button clamp jaw lever Code 10-10 Standard For small button For medium-size button 12-12...
  • Page 131 FOR SEWING SHANK BUTTONS LK-1903S-305 Model name 1,500rpm Sewing speed TQ 3 (#14) Needle (at the time of delivery) Outside diameter Diameter of hole in button Position of hole in button Configuration of shank A (mm) B (mm) Min. Max. Button configuration 1.5 or more Sewing pattern number...
  • Page 132 LK-1903/BR25 WHEN YOU PLACE ORDERS MODELS CLASSFIED BY BUTTON SIZES Machine head Model name LK-1903-311/BR25 LK-1903-312/BR25 LK-1903SS- Button type For small button For medium-size button Outside diameter that can be adjusted (mm) Length 0 3.5 0 4.5 Sewing size (mm) width 0 3.5 0 4.5...

  • Page 133: Computer-Controlled, High-Speed Bartacking Machine

    Computer-controlled, High-speed Bartacking Machine LK-1900 The machine's maximum sewing speed of 2,700rpm, far exceeds the speeds of conventional bartacking machines, setting a new world record. Marked reductions have been achieved in the time required to lift/lower the presser foot, perform jumping, trim the thread, and operate the wiper, thereby reducing the total cycle time and ensuring higher productivity.
  • Page 134 Provided as standard (The bobbin thread counter can be changed over to the No. of pcs. counter.) Memory medium EP-ROM Lubrication Centralized oil wick lubrication Lubricating oil JUKI New Defrix Oil No. 2 (equivalent to ISO VG32) Sewing machine 400W compact AC servomotor (direct-drive system) motor Power consumption 500VA Weight Machine head (include motor) 41kg, Control box 16.5kg...
  • Page 135 TABLE OF THE STANDARD PATTERNS –––––– LK-1900, LK-1901, LK-1902 (Note 2) (Note 2) Sewing Sewing No. of No. of size (mm) size (mm) work work Stitch diagram Stitch diagram Length- Cross- Length- Cross- clamp clamp wise wise wise wise foot foot (Note 3) 3, 9...
  • Page 136 TABLE OF THE WORK CLAMP FOOT –––––– LK-1900 Provided as standard 135-18659 (asm.) 135-71955 (asm.) 135-48151 (asm.) 135-42964 (asm.) Work clamp foot 141-16107 141-16800 141-16909 135-54803 141-16206 (without knurl) (without knurl) Feed plate Application code Finger guard 135-33104 135-73407 135-48300 135-33104 Standard accessory Standard accessory...
  • Page 137 TABLE OF THE STANDARD PATTERNS –– LK-1904F TABLE OF THE WORK CLAMP FOOT –– LK-1904F Provided as standard Options (Note 2) Sewing No. of size (mm) work Stitch diagram Length- Cross- clamp 141-37509 (right) 141-37806 (right) wise wise foot 141-37608 (left) 141-37905 (left) Work clamp foot 31.4...
  • Page 138 OPTIONS Foot pedal for standing work Model Part No. Description Name of parts Type Part No. Feed plate blank 2-pedal unit for standing Without knurl 141-20109 M8520-580-0A0 work Pedal switch conversion With knuri 141-20307 M9012-590-0A0 cable asm. Without knurl/stainless steel t=0.8 141-20505 1-pedal unit for standing T = 1.2...
  • Page 139 Thread spreader interlocked with main shaft and thread trimmer interlocked with foot lifter Wiper Interlocked with lifter Lubrication Centralized oil wick lubrication Lubricating oil JUKI New Defrix Oil No. 2 (equivalent to ISO VG32) Weight of the machine head 42.5kg Motor Single-phase/3-phase 200W (1/4 HP) induction motor WHEN YOU PLACE ORDERS...
  • Page 140 SUBCLASS MACHINES LK-1850 series of bartacking machines Sewing size (mm) Number of Lengthwise Crosswise Max. sewing Model Name Stitch diagram Needle stitches Standard Standard speed (rpm) (min. max.) (min. max.) LK-1850 2,300 DP 5 Large size #14, #16 LK-1852-5 bartacking 2,300 2.5 (1.5 3) 16 (8 16)
  • Page 141 APPLICATIONS LK-1850 LK-1853-15 LK-1852-1 LK-1852-5 LK-1854-24 LK-1854-4 LK-1853-16 Large bartacking for men's wear, ladies' wear, children's wear, Bartacking eyelet buttonholes for men's wear, ladies' wear, school work wear, jeans, etc. Various types of extra large uniforms, coats, etc. bartacking LK-1852-2 LK-1854-11 Small size bartacking for men's wear, coats, etc.
  • Page 142 SUBCLASS MACHINES LK-1850H/1850G series of bartacking machines Sewing size (mm) Number of Max. sewing Model Name Stitch diagram Needle Lengthwise standard Crosswise standard stitches speed (rpm) (Min. Max.) (Min. Max.) LK-1850H 2,000 Large size bar- Di 3 tacking machine LK-1852H-5 2,000 3 (1.5 3) 16 (8 16)
  • Page 143 Bobbin thread counter Provided as standard Lubrication Centralized oil wick lubrication Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Sewing machine motor 400W compact AC servomotor (direct-drive system) Power consumption Single-phase, 3-phase 600W Machine head (include motor) Machine head (include motor) 46kg, control box 16.5kg...
  • Page 144 WHEN YOU PLACE ORDERS Machine head LK-19 Subclass Code Model Application Code Feeding frame Code Code Standard 5000 Intermediate presser Input function Standard Magnet-driven feeding frame Subclass 5001 Not provided Not provided For heavy-weight materials Pneumatic separately Provided Not provided driven feeding frame Provided Provided...
  • Page 145 OPTIONS Model Part No. Description Feature Programming software for Use the PGM-20 software (separately available) for creating pattern data. PGM-20 computer controlled sewing With the programming software, data can be created in an interactive processing machine manner using a general-purpose personal computer or ROM writer. The device is best-suited to attaching small articles such as labels and emblems FU02L Pneumatic inverted clamp device...
  • Page 146 Computer-controlled Shape-tacking Machine with a Full-rotary 3 fold-Capacity Hook Sewing area: 60mm (L) 100mm (W) (for extra heavy-weight materials LK-1941ZA with a heat cutter) (for heavy-weight materials LK-1942HA with an intermediate presser) (for extra heavy-weight materials LK-1942GA with an intermediate presser) With its new electronic feed system, the operator can select and use the sewing pattern entered.
  • Page 147 Provided as standard Bobbin thread counter EEP-ROM Memory medium Centralized oil wick lubrication Lubrication JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Lubricating oil 0.5MPa (5kgf/cm ) , 1.3N /min Compressed air and air consumption 480W compact AC servomotor (direct-drive system)
  • Page 148 OPTIONS Model Part No. Description Feature Sewing patterns can be entered or modified through the handy programming PGM-7 Handy programming device device while holding it. Dedicated keys for frequently-used functions are provided on the handy programming device to cut down the operation time. The needle cooler blows air to the needle, thereby preventing thread breakage 142-25056 Needle cooler...
  • Page 149 Max. 89 patterns Machine head drive system Compact AC servomotor (direct-drive system) Power consumption 400VA Lubrication Automatic Lubricating oil JUKI New Defrix oil No.1 (equivalent to ISO VG7) Weight Machine head (include motor) 63kg, Control box 13.5kg LBH-1700 (June, 2001) 1/2...
  • Page 150 WHEN YOU PLACE ORDERS Machine head Control box LBH-1700S MC-600 Application Code Work clamp lifter Code Power supply Code Standard Standard (2-pedal unit) Single-phase 240V Auto-lifter (magnet-driven type) 240V 3-phase Auto-lifter (air-driven type) 415V The auto-lifter cannot be retrofitted to the machine. For CE Single-/3-phase 220V 415V (Not provided with a power switch)
  • Page 151 Belt-shifting method Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) 300W general-purpose motor Motor (A 250W general-purpose motor can be used when the machine is used at a sewing speed of 3,100rpm or less.) Weight of the machine head...
  • Page 152 WHEN YOU PLACE ORDERS LBH-780 Series LBH-78 Model Code Subclass machines Code 19.1mm Standard Knife 25.4mm For knits width 31.8mm 12.7 38.1mm NV Type NB Type LBH-78 LBH-78 Model Code Stitch formation Code Model Code Stitch formation Code 25.4mm Square-type bartacking 11.5 25.4mm Square-type bartacking...

  • Page 153: Exchanging Parts

    EXCHANGING PARTS Table of changing gears Small gear Large gear Stitch No. Part No. Stitch No. Stitch No. B2936-761-000 B2937-761-000 B2938-761-000 B2939-761-000 B2940-761-000 B2941-761-000 B2942-761-000 B2943-761-000 B2944-761-000 B2945-761-000 B2946-761-000 B2947-761-000 B2928-761-000 B2929-761-000 B2948-761-000 B2949-761-000 B2950-761-000 B2951-761-000 B2930-761-000 B2931-761-000 B2952-761-000 B2953-761-000 B2932-761-000 B2933-761-000 B2954-761-000...
  • Page 154 DP 5 (#11J) #9 #14 Hook DP type, Automatic-lubricating full-rotary hook Lubrication Automatic Lubricating oil JUKI New Defrix oil No.1 (equivalent to ISO VG7) Motor to be used 300W general-purpose motor 400W electronic-stop motor Sewing speed control function Not provided...
  • Page 155 WHEN YOU PLACE ORDERS Model Code Subclass machines Code Model Code 6.4 19.1mm Standard With a stop-motion mechanism (general-purpose motor) 6.4 25.4mm For knits Knife width 6.4 31.8mm Without a stop motion mechanism (electronic-stop motor) 12.7 38.1mm LBH-79 Automatic one-pedal unit Knife drive mechanism For general-purpose motor Code For electronic-stop motor...
  • Page 156 Optional parts (work clamp check for light-weight materials, knits and knitted fabric) Model Application Distance A Distance B Width of knife blade Buttonhole length Part No. Shape For light-weight 791RS 30mm 6.6mm 19.1mm (3/4") 25mm B1552-781-00A materials For light-weight 792RS 40mm 6.6mm 25.4mm (1")
  • Page 157 TABLE OF EXCHANGING GAUGE Table of changing gears Small gear Larger gear Stitch No. Part No. Stitch No. Part No. 137-56200 137-56309 137-56408 137-56507 137-56606 137-56705 137-56804 137-56903 137-57000 137-57109 137-57208 137-57307 137-57406 137-57505 137-57604 137-57703 137-57802 137-57901 137-58008 137-58107 137-58206 137-58305 137-58404...
  • Page 158 16 231 (Nm90) Nm75 Nm90 16 231 (Nm90) Nm75 Nm100 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Dimensions 470mm (W) 212mm (L) 260mm (H) The sewing size can be set to 38.1mm (1-1/2") at the maximum by changing the presser foot.
  • Page 159 EXCHANGING PARTS COMPONENTS Knife Size Part No. For knit 6.4mm (1/4") B2701-180-F00 B2701-180-F0A 9.5mm (3/8") B2701-180-K00 B2701-180-K0A 12.7mm (1/2") B2701-180-L00 B2701-180-L0A 14.4mm (9/16") B2701-180-V00 B2701-180-V0A 15.9mm (5/8") B2701-180-M00 B2701-180-M0A 19.1mm (3/4") B2701-180-N00 B2701-180-N0A 22.2mm (7/8") B2701-180-P00 B2701-180-P0A 25.4mm (1") B2701-180-Q00 B2701-180-Q0A 28.6mm (1-1/8") B2701-180-R00...
  • Page 160 With this mechanism, the work clamps reliably clamp materials of different thicknesses to prevent the materials from flopping. JUKI has newly developed a machine head with a shallow recess. For the efficient sewing of longitudinal buttonholing. The computer controlled design eliminates most of the complicated MEB-3200SS mechanisms.
  • Page 161 WHEN YOU PLACE ORDERS (COMPLETE) MEB-3200 Application Code Table stand Code Power supply Code Option Code For men's and ladies' wear Standard Single-phase 220 240V Not provided For combined use for lateral and Lateral-installation 220 240V Needle thread 3-phase longitudinal buttonholing: machine head clamp device 220 415V...
  • Page 162 LIST OF THE REPLACEMENT GAUGES Provided as standard No symbol Optional Accessory Installation is invalid. Throat plate Cloth cutting knife Application For eyelet buttonhole Part name Part No. Needle size Shape (mm) Application Max. cutting Part No. length (mm) Throat plate A (standard) 320-42707 Nm90 Nm110 Throat plate B (for semi-wide stitch bite)

  • Page 163: Needle Thread Clamp Device

    NEEDLE THREAD CLAMP DEVICE The machine with the needle thread clamp device is available as optional model. It tucks the needle thread in the seam, thereby eliminating thread end securing work. It clamps the needle thread to from a beautiful seam without fail from the first stitch.
  • Page 164 Feed dog 3-row feed dog Looper Blind looper Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 300mm Size of bed 476mm 178mm Weight of the machine 29kg APPLICATIONS The basting of the front edges, edge and stand of collars, flaps of men's and ladies' suits and coats.
  • Page 165 Penetration width 3 mm (fixed) Penetration depth Max. 0.8 mm Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Weight of the machine head 25kg 27kg CB-638, 640, 641, 643, 671 (June, 2001) 1/2...
  • Page 166 OPTIONS Application Model Part No. Description Feature CB-638 CB-640 CB-641 CB-643 CB-671 Cuts sharply even tough thread like polyester and nylon thread by a single-touch operation, preventing any thread trimming failure and T003 B4325-640-0A0 Manual thread cutter ensuring clear finish of seams. Using this Manual thread cutter together with electronic-stop motor controlling needle position you can highly promote working efficiency.
  • Page 167 Columbia 100, the MP-200 achieves a minmun needle gauge of 1.2mm for wider applicability. The machine head of the MP-200 is modeled after JUKI's lockstitch machine head to provide a wider area under the arm and optimize operability.
  • Page 168 (dia. of bobbin: 37mm, amount of bobbin tread is over 5 times more than previous models) Operation system Automatic stop system by pedal action Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Bed size 440mm 178mm Weight of the machine head 53kg KINDS OF HIGH WOODEN BUCK TABLE...
  • Page 169 Power consumption Single-phase, 3-phase 1KVA Lubrication Centralized oil wick lubrication Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Total weight 120kg 125kg Dimensions 675mm (L) 1,200mm (W) 1,130mm (H) 705mm (L) 1,200mm (W) 1,130mm (H)

  • Page 170: Service Patterns

    WHEN YOU PLACE ORDERS SERVICE PATTERNS Both the AMS-205C and AMS-206C come equipped with the P-ROM Application Code Work clamp type Code which stores 12 types of bartackings as standard. Standard Standard Number Stitch Sewing area (mm) For medium-weight materials Description diagram (W) (L)
  • Page 171 Wider-area Perfect Stitching AMS-210D P TYPE Sewing area: 60mm(L) 130mm(W) As a result of JUKI's thorough study of sewing performance, the area in which hitch stitches appears is reduced to one-third or less of the area produced with conventional cycle machines.

  • Page 172: Programming Functions

    Provided as standard Sewing machine motor 400W compact AC servomotor (direct-drive system) Power consumption Single-phase, 3-phase 600VA Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Total weight 120kg Dimensions 710mm (L) 1,200mm (W) 1,200mm (H) PROGRAMMING FUNCTIONS With its large memory, the machine responds to many different sewing patterns.
  • Page 173 OPTIONS Model Part No. Description Feature The PGM-20 is provided with many different input functions Programming software for computer controlled PGM-20 to permit interactive data creation, free from difficulties, sewing machine using a general-purpose personal computer or digitizer. Inverted clamp device for the magnet-driven FU01S The pneumatically driven inverted clamp device is best feeding frame...
  • Page 174 Sewing machine motor 400W compact AC servomotor (direct-drive system) Power consumption Single-phase, 3-phase 600VA Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Compressed air and 0.5 0.55MPa (5 5.5kgf/cm ), 1.8N /min air consumption Total weight 120kg...

  • Page 175: Machine Head

    WHEN YOU PLACE ORDERS Machine head Table stand AMS-210DHL6100SZ J-AM2000L Power supply Code Pedal switch Code 100 120V 2-pedal unit Single-phase 200 240V PK 2-pedal unit 220 415V Control panel Code 200 240V English and pictograph 220 415V 3-phase 220 415V (For CE) PROGRAMMING FUNCTIONS With its large memory, the machine responds to many different sewing patterns.
  • Page 176 Sewing machine motor 400W compact AC servomotor (direct-drive type) Power consumption Single-phase, 3-phase 600VA Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Compressed air and 0.5 0.55MPa (5 5.5kgf/cm ), 1.8N /min air consumption Total weight 120kg...
  • Page 177 WHEN YOU PLACE ORDERS Machine head Table stand AMS-210DHL6300SZ J-AM2000L Power supply Code Pedal switch Code 100 120V 3-pedal unit Single-phase 200 240V PK-47(3-pedal unit) 220 415V 200 240V Control panel Code 3-phase 220 415V English and pictograph PROGRAMMING FUNCTIONS With its large memory, the machine responds to many different sewing patterns.
  • Page 178 Sewing area: 110mm(L) 220mm(W) AMS-221D P TYPE Sewing area: 160mm(L) 250mm(W) As a result of JUKI's thorough study of sewing performance, the area in which hitch stitches appears is reduced to one-third or less of the area produced with conventional cycle machines.
  • Page 179 0.5 0.55MPa (5 5.5kgf/cm ), 1.8N /min air consumption Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Total weight 175kg Dimensions 960mm (L) 1,200mm (W) 1,200mm (H) 1,005mm (L) 1,200mm (W) 1,200mm (H) PROGRAMMING FUNCTIONS With its large memory, the machine responds to many different sewing patterns.
  • Page 180 OPTIONS Model Part No. Description Feature The PGM-20 is provided with many different input functions Programming software for computer controlled PGM-20 to permit interactive data creation, free from difficulties, sewing machine using a general-purpose personal computer or digitizer. The device is designed for installation on the machine FU03 Pneumatic inverted clamp device provided with a double-stepped stroke feeding frame...
  • Page 181 Sewing area: 200mm(L) 300mm(W) AMS-224P Sewing area: 250mm(L) 400mm(W) As a result of JUKI's thorough study of sewing performance, the area in which hitch stitches appears is reduced to one-third or less of the area produced with conventional cycle machines.
  • Page 182 Sewing machine motor electronic-stop motor electronic-stop motor electronic-stop motor Power consumption Single-phase, 3-phase 1KVA Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Weight 290kg Dimensions 1,190mm (L) 1,230mm (W) 1,285mm (H) Model name AMS-224CS AMS-224CH AMS-224CG...
  • Page 183 OPTIONS Model Part No. Description Feature Handy type of programming device provided with many PGM-5A Handy programming device different functions enable the operator to input data by operating the device near needle entries. B5019-222-0B0 PV-150209000 142-04754 The tension controller unit is used to partially change the Thread tension controller No.3 needle thread tension during the sewing of a pattern.

  • Page 184: Control Panel

    CONTROL PANEL The operator can easily create a sewing pattern on the spot by inputting sewing pattern data through the control panel according to a sewing sample or the feeding frame. The control panel is very helpful to the operator to input pattern data, to operate the sewing machine and to use the milling unit.
  • Page 185 High-speed, Computer-controlled, Dry-head, Single-thread Chainstitch, Button Sewing Indexer ACF-164-1800 The machine is equipped with a computer-controlled single- thread chainstitch button sewing machine. Adoption of a no lubricated machine head eliminates oil stains on sewing products. No oiling is required. Thanks to its computer-controlled feed, the machine now offers 39 different sewing patterns as standard.
  • Page 186 APPLICATIONS SIZE OF CLOTH Feeding intervals 650mm (0.1mm steps) Standard: 650mm Total feeding amount (optional size: Max. 1,200mm) Standard: 40 140mm Distance from the top end of the garment body to the first button (optional size: Min. 20mm) Distance from the side end of the garment body to the button 25mm Width: 220 420mm...
  • Page 187 1 20pcs. Number of patterns that can be stored in memory 20 patterns Lubrication Centralized oil wick lubrication (machine head) Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Power consumption 600VA Compressed air 0.5MPa (5kgf/cm Air consumption...
  • Page 188 APPLICATIONS SIZE OF CLOTH Feeding intervals 650mm (0.1mm steps) Standard: 650mm Total feeding amount (optional size: Max. 1,200mm) Standard: 40 140mm Distance from the top end of the garment body to the first button (optional size: Min. 20mm) Distance from the side end of the garment body to the button 25mm Width: 220 420mm...
  • Page 189 Pair stacking Possible Impossible (only when sewing garment bodies) Lubrication Automatic (machine head) Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Power requirement Single-phase, 3-phase/1,000VA Power consumption Compressed air and 0.5MPa (5kgf/cm ), 240N /min 0.5MPa (5kgf/cm...
  • Page 190 WHEN YOU PLACE ORDERS ACF-172-791 Application Code Power supply Code Option Code For sewing garment bodies 220V Auxiliary garment clamp device Single- (standard) phase 240V Adjusting range shifter For General Export For sewing finished products 200V, 220V, 240V Not provided with a garment body stacker 3-phase 380V, 415V, 440V...
  • Page 191 1 999mm sleeve buttonhole Speed of cloth feed 100mm/sec Lubrication By an oiler (machine head) Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Power consumption 270W Compressed air 0.5MPa (5kgf/cm Air consumption 10N /min WHEN YOU PLACE ORDERS...
  • Page 192 Computer-controlled, Single-thread Chainstitch, Button Neck Wrapping Machine AMB-187N (for flat button) The AMB series uses the proven MB-373 (single-thread chainstitch button sewing machine with a thread trimmer) as its base and combines it with the X-Y control mechanism. With its micro-computer control, the machine allows any operator to finish beautifully-sewn buttons with consistency.
  • Page 193 0 3mm (to be set in increments of 0.2mm) Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Single-phase 100V, 110V, 120V, 200V, 220V, 240V Power requirement 3-phase 200V, 220V, 240V, 380V, 415V, 440V...
  • Page 194 APPLICABLE BUTTON REQUIREMENTS AMB-187N/AMB-187NR, AMB-189N/AMB-189NR Specifications for 4-holed and 2-holed buttons Needle: For #12 - #16 needles, 1.5mm or more Buttonhole diameter Needle: For #12 - #18 needles, 2mm or more Distance between the button holes 2 5mm( 0.15mm) All holes must be located equidistantly from the Buttonholes center of each button Min.

  • Page 195: Production Capacity

    PRODUCTION CAPACITY Model name AMB-187N, AMB-189N AMB-189N Production capacity 1,843 pcs/8 hours 2,327 pcs/8 hours 4-holed buttons Shank buttons The number of tie stitches: 8 2 Number of tie stitches: 8 Conditions The number of neck wraps: 10 Number of neck wraps: 6 Without cross-over stitches/Stay stitch: 1 Allowance rate: 25% Allowance rate: 25%...
  • Page 196 Max. 1,000mm Max. 800mm Lift of the presser foot Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) 700W Power consumption Short and long stitch 1,200mm (W) 800mm (D) 870mm (H) Dimensions Total weight...
  • Page 197 (option) mechanism Stacker Option Lubrication Automatic (machine head) Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Power requirement Single-phase 190 250V, 3-phase 220 240V, 380 440V, 220V, 380V Power consumption 700W 50HZ: 835W, 60H: 905W 0.5MPa (5kgf/cm ), 220N /min 0.5MPa (5kgf/cm...
  • Page 198 WHEN YOU PLACE ORDERS Specification Code Overedging Code Cloth control Cloth receiving Code Power supply Code Code width device board Air pressure type 50HZ 60HZ 4.0 mm Not provided Not provided Airless type Single-phase 190 250V 4.8 mm Provided Provided 220 240V 5.6 mm 380 440V...
  • Page 199 AC servomotor, X-Y clamp device pattern 000. line square shape 001 to 998 Lubrication Automatic (machine head) Bilge-shape for the Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) respective shapes. Square Power requirement Single-phase 200V, 240V Power consumption 800VA Double- Round...
  • Page 200 2DD/2HD 3.5" micro-floppy disk Feeding method AC servomotor, X-Y clamp drive Lubrication Automatic (machine head) Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Power requirement Single-phase 200 240V, 3-phase 200V, 200 240V, 380 440V Power consumption 600VA Compressed air 0.5MPa (5.0kgf/cm...
  • Page 201 WHEN YOU PLACE ORDERS AVP-875 Type Code Pocket style jig Option Standard Label-inserting Garment put Configuration Code Kind Code Marking light Code device base With AW-2 Not used Not provided Not provided Not provided Round-bottom type Provided Not provided Power supply Code Blade-shape bottom type Not provided...
  • Page 202 Compact AC servomotor (direct-drive system) Machine head motor Thread take-up Slide type Lubrication By an oiler (machine head and hook) JUKI New Defrix oil No. 2 (equivalent to ISO VG32) Lubricating oil Needle-feed system Stepping motor control Cloth feeding system By a servomotor drive...
  • Page 203 WHEN YOU PLACE ORDERS Automatic welting patch feeder Code Stacker Code Single-welt Power supply Code Code change-over function Standard: Automatic welting patch Not provided Single-phase 220V feeder (right) Not provided SP44 220V 3-phase SA102 Welting patch cutting device Clamp bar stacker SA111 Right 380V SP45...
  • Page 204 OPTIONS The same optional parts are offered for the APW-297 and APW-298. They can be retrofitted to either machine. Model Part No. Description Feature SA73N GSA-730000A0B Auxiliary receiving plate (right) This is the receiving plate for accessories for welting patches, etc. The dart stretcher holds the end of the material when making a welt on a darted part of the SA106 GSA-106000A0...
  • Page 205 Thread take-up Slide type Lubrication By an oiler (machine head and hook) Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Cloth feed system By a servomotor drive Bobbin thread remaining amount Provided as standard detecting device...
  • Page 206 WHEN YOU PLACE ORDERS Pocket lip width Option Main unit Code Power supply Code Code (needle gauge: mm) See the under of Standard main unit with a side cover 220V this sheet. Single- Shim-type main unit with a side cover 230V phase Main unit with a side cover for vacuum device...

  • Page 207: Sewing Machine Components

    OPTIONS Model Part No. Description Feature The dart stretcher holds the end of the material when making a welt on a SA84 GSA-840000A0A Dart stretcher darted part of the material to make it easier to set the darted part and improve the reliability of the welting.
  • Page 208 WELT PATCH BASE PLATE COMPONENTS Welt pach ruler Clamp foot spacer Clamp foot collar setscrew Foot collar Single-welt Welt pach ruler Clamp foot spacer Clamp foot collar setscrew Foot collar Needle gauge Size (mm) Part No. Part No. Part No. Part No.
  • Page 209 Bobbin winder Electric type (provided as standard) Lubrication Centralized oil wick lubrication (machine head) Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32) Power requirement and power consumption Single- /3-phase, 350VA Compressed air and air consumption 0.5MPa (5kgf/cm...
  • Page 210 WHEN YOU PLACE ORDERS MOL-254 Power supply Code Option Code 200 240V No options Single-/3-phase 220 400V Belt-loop tension releasing device (fullness) 220 400V (For CE) Belt-loop feeding device Air gun Needle cooler Needle thread breakage detector Enter codes of required options in alphabetical order. FINISHED BELT-LOOP STITCH SIZE The applicable loop width for the cross-cutting device is increased.
  • Page 211 1-needle, Lockstitch Machine for Leather and Heavy-weight Materials DDL-8700L This is a newly designed JUKI's unique lockstitch machine. The machine is able to sew at a pitch as long as 7mm for both normal and reverse feed directions. With the adoption of a feed mechanism and thread take-up lever, the machine achieves increased efficiency of feed and well-tensed stitches.
  • Page 212 DB 1 (DP 17) (#21) #14 #23, For JE: 1738 (Nm130) Thread #40 #8, B33 B92, Nm=90/3 30/3 Lubrication By an oiler (hook: automatic) Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to 265mm 270mm machine arm Bed size...
  • Page 213 EXCHANGEABLE GAUGE PARTS For DU-140, DU-141NH, DU-141H-7, DU-580 Description Throat plate Feed dog Notes Standard D1109-560-E00 (D=2.6) D1613-560-E00 Stitch length: max. 8mm D1109-560-E0A (D=4.2) D1109-560-E0B (D=3.0) B1109-201-H0B (D=3.5) B1609-201-000A Stitch length: max. 8mm B1109-555-H0B (D=2.6) 12.4 B1609-201-000B Stitch length: max. 10mm B1105-141-000 (D=2.0) B1613-141-H00A Stitch length: max.
  • Page 214 #40 #8, B33 B92, Nm=90/3 30/3 Safety mechanism Provided as standard Lubrication By an oiler (hook: automatic) Lubricating oil JUKI New Defrix Oil No. 1 (equivalent to ISO VG7) Distance from needle to 264mm machine arm Bed size 477mm 178mm...
  • Page 215 WHEN YOU PLACE ORDERS Without an automatic thread trimmer With an automatic thread trimmer DNU-241H DNU-241H-7- 0B/ Safety device for hook Code Automatic reverse Pneumatic auto-lifter (optional) Code Code feed function Not provided Knee switch type (AK110C) Provided Provided Pedal switch type (AK110B) Not provided Note that the auto-lifter cannot be installed on the machine after the set-up.
  • Page 216 EXCHANGEABLE GAUGE PARTS For DNU-241H(S), DNU-241H-7 Description Throat plate Feed dog Notes Standard B1105-241-H00A D1613-241-E00 Needle hole: 4 2.5mm (without groove) For thin needles D1613-241-E0A Needle hole: 2.6 2.2mm With groove D1613-241-E0B Needle hole: 4 2.5mm For DNU-241H(S), DNU-241H-7, DNU-261H Description Presser foot Walking foot...
  • Page 217 For DNU-241H(S), DNU-241H-S, DNU-261H Description Presser foot Walking foot Notes Left-hand type B1529-245-0AF B1476-245-00F Stitch length: max. 6mm (special order) (special order) With teeth 2.1 6 For binding MAQ-092080A0 MAQ-09207000 Stitch length: max. 10mm (with teeth) MAQ-093080A0 MAQ-09307000 DSC-246V(-7) standard (with teeth) Stitch length: max.
  • Page 218 LU-1510-7 material. As a result, the walking foot retains the material • The machine comes with JUKI's proven thread trimming with a consistent pressure to prevent irregular stitches. mechanism. With its robust knife and cam configuration, LU-1508H the thread trimmer reliably cuts threads as thick as #5.
  • Page 219 Built on the machine head Safety mechanism Provided as standard Lubrication By an oiler (hook: automatic) Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to 255mm/517mm 178mm machine arm/Bed size Weight of the machine head 42.5kg 44.5kg...
  • Page 220 EXCHANGEABLE GAUGE PARTS Description Throat plate Feed dog Notes 213-49303 Equipped on LU-1508, LU-1508H, (needle hole: 2.5 7.2) LU-1510 (groove in front and back) Stitch length up to 9mm (10mm in case of LU-1508H) B1109-563-000 (area: 33.2 6.6) Lower fittings standard (equipped on machine) 213-49204 Equipped on LU-1510-7...
  • Page 221 Description Presser foot Walking foot Notes B1529-245-0AD B1476-245-00D Stitch length up to 8mm (width 6.7mm) (width 4.1, needle hole: 2.6) (with teeth) (with teeth) Upper fittings left handed B1525-563-SAD 103-38309 Stitch length up to 10mm (width 9.4mm) (width 4.5, needle hole: 2.2) (with teeth) (with teeth at the toe)
  • Page 222 Well tensed seams are consistently LU-1560-7 produced without pitch errors. • The machine comes with JUKI's proven thread trimming The machine has adopted a new mechanism that does not mechanism. With its robust knife and cam configuration, change the ratio of alternate vertical movement of the walking the thread trimmer reliably cuts threads as thick as #5.
  • Page 223 Built on the machine head Safety mechanism Provided as standard Lubrication Automatic By an oiler (hook: automatic) Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to 255mm/517mm 178mm machine arm/Bed size Weight of the machine head 45kg 51kg...
  • Page 224 EXCHANGEABLE GAUGE PARTS LU-1560 Walking foot asm. Feed dog Code Needle gauge size Throat plate Needle clamp asm. Presser foot asm. Needle hole 2.5 Needle hole Slide plate, left Slide plate, right with groove 2.5 3.5 2.5 3.5 3.2mm (1/8") 213-68709 213-71554 213-70853...
  • Page 225 LU-1565 Walking foot asm. Feed dog Needle clamp Needle clamp Code Needle gauge size Throat plate Presser foot asm. Needle hole 2.6 7 Needle hole asm., left asm., right with groove & teeth 2.6 7 2.6 7 4.8mm (3/16") B1109-521-D00 B1402-526-DALA B1402-526-DARA 213-67651...
  • Page 226 #20 #5, B64 B138, Nm=40/3 20/3 Safety mechanism Provided as standard Automatic Lubrication Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 264mm Bed size 517mm 178mm Weight of the machine head...
  • Page 227 WHEN YOU PLACE ORDERS Feed dog Code DL function Code Standard (with groove) Provided with DL function/push button type Without groove Provided with DL function/knee switch type For thin thread (2.5mm 1.6mm) Not provided with DL function LU-2210 -7-0B Hook Code Walking foot Code...
  • Page 228 INTERCHANGEABLE GAUGE PARTS LU-2210N-7, LU-2210W-7 Sewing conditions Walking foot Presser foot Standard Standard Standard 107-12552 107-11653 Standard (pressing face is reduced) For material with overlapped section 107-58456 Allows the smooth feed of For material with multi-layered portions of overlapped section the material 107-12651 For light-weight sponge...
  • Page 229 LU-2260N-7, LU-2260W-7 Slide plate Typical Needle Presser Walking Needle Needle gauge Feed dog part No. clamp foot foot plate Left Right 4mm (special order) 107-84551 107-77555 107-81557 107-83058 107-84502 107-80005 107-84650 107-77654 107-81656 107-83157 107-84601 107-80104 107-86309 107-01803 107-84759 107-77753 107-81755 107-83256 107-84700...
  • Page 230 Thread #50 #8, B33 B92, Nm=120/3 30/3 Lubrication By an oiler (hook: automatic) Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 295mm Bed size 477mm 178mm Weight of the machine head...
  • Page 231 WHEN YOU PLACE ORDERS Without an automatic thread trimmer Motor for SC LZH-1290 With an automatic thread trimmer Motor Code LZH-1290-7-0B/ Single-phase For General Export 220 240V 3-phase Single-phase 110 120V Pneumatic auto-lifter Code For JUS (LA) 3-phase 220 240V Not provided For CE Single-phase...
  • Page 232 #20 #5, B69 B138, Nm=40/3 20/3 Safety mechanism Provided as standard Lubrication Automatic Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 650mm Bed size 917mm 178mm Weight of the machine head...

  • Page 233: Gauge Parts

    WHEN YOU PLACE ORDERS LU-2216NAASB-7-0B LU-2266NSDSB-7-0B Walking foot Code Presser foot Code Feed dog Code Needle gauge Code Walking foot Presser foot Code Standard Standard Standard 10mm (standard) Feed dog Any gauge other than the standard is available on a part order. (See the table of replaceable gauges.) Standard PSC box/control panel for SC SC-380-...
  • Page 234 Thread #40 #8, B33 B92, Nm=90/3 30/3 Lubrication By an oiler (hook: automatic) Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 500mm Bed size 715mm 178mm Weight of the machine head...
  • Page 235 Thread #40 #8, B33 B92, Nm=90/3 30/3 Lubrication By an oiler (hook: automatic) Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 635mm Bed size 850mm 178mm Weight of the machine head...
  • Page 236 Thread #50 #8, B33 B92, Nm=120/3 30/3 Lubrication By an oiler (hook: automatic) Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Cylinder-bed diameter 50mm Distance from needle to machine arm 270mm Weight of the machine head 36kg...
  • Page 237 EXCHANGEABLE GAUGE PARTS For DSU-145 (-7) Description Walking foot Presser foot Notes Standard B1526-141-H0A B1525-141-HA0 For piping B1527-141-H0 B1527-141-HA0 Piping size B : 3.2mm (1/8") F : 6.4mm (1/4") C : 4.0mm (5/32") H: 7.9mm (5/16") D: 4.8mm (3/16") K : 9.5mm (3/8") E : 5.6mm (7/32") Cut-out tail for piping B1528-141-H0...
  • Page 238 #50 #8, B33 B92, Nm=120/3 30/3 Lubrication By an oiler By an oiler (hook: automatic) By an oiler Lubricating oil JUKI New Defrix Oil No. 1 (equivalent to ISO VG7) Cylinder-bed diameter 46mm 50mm Distance from needle to machine arm 264mm...
  • Page 239 WHEN YOU PLACE ORDERS Without an automatic thread trimmer DSC-244/245/246 Feed system Code Automatic reverse feed function Code Elliptical feed Not provided Horizontal feed Provided With an automatic thread trimmer DSC-244/245/246 -7- 0B / Feed system Code Pneumatic auto-lifter (optional) Code Elliptical feed Knee switch type (AK110C)
  • Page 240 EXCHANGEABLE GAUGE PARTS For DSC-244 (-7), 245 (-7), 246 (-7) Description Presser foot Walking foot Notes Standard B1525-241-HA0 B1470-241-HA0 For DNU Stitch length: max. 10mm B1525-053-0A0 B1470-053-000 (D=2.8) For LU & LS B1470-053-C00 (D=2.3) Stitch length: max. 10mm B1525-562-BA0 B1470-562-B00 Stitch length: max.
  • Page 241 For DSC-244(-7), 245(-7), 246(-7) Description Presser foot Walking foot Notes Right-hand type B1529-245-00A B1476-245-00A Stitch length: max. 8mm With teeth Wide type 103-25157 103-25306 Stitch length: max. 10mm Exclusive parts (for LU-1114) Throat plate: 103-25009 Feed dog: 103-25207 For leather 103-26304 103-26205 Stitch length: max.
  • Page 242 For DSC-245, 245-7, 246, 246-7 Description Throat plate Feed dog Notes Standard DSC-245: B1105-245-000 DSC-245: B1613-245-000 (with groove) DSC-245-7: D1105-245-E00 DSC-245-7: D1613-245-E00 DSC-246: 211-31206 DSC-246: 211-35009 DSC-246-7: 211-32006 DSC-246-7: 211-34002 Without groove DSC-245: B1613-245-00A DSC-245-7: B1613-245-E0A DSC-246: 211-35108 DSC-246-7: 211-34101 For thin needle DSC-245: B1613-245-00B DSC-245-7: B1613-245-E0B...
  • Page 243 Nm=90/3 20/3 Nm=60/3 15/3 Safety mechanism Provided as standard Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 250mm Cylinder-bed diameter 72mm Weight of the machine head 36kg...
  • Page 244 WHEN YOU PLACE ORDERS Without an automatic thread trimmer LS-321 LS-341N With an automatic thread trimmer LS-341N -7-0B Gauge Code Pneumatic auto-lifter (optional) Code Standard Not provided Gauge for small articles Knee switch type (AK117A) Pedal switch type (AK117B) Throat plate Feed dog 231-00803 231-01702...
  • Page 245 EXCHANGEABLE GAUGE PARTS Description Presser foot Walking foot Notes Standard B1525-241-HA0 B1470-241-HA0 For DNU Stitch length: max. 10mm B1525-053-0A0 B1470-053-000 (D=2.8) For LU & LS B1470-053-C00 (D=2.3) Stitch length: max. 10mm B1525-562-BA0 B1470-562-B00 Stitch length: max. 10mm With teeth B1525-563-E00 B1470-563-E00 Stitch length: max.
  • Page 246 Description Presser foot Walking foot Notes For binding MAQ-093080A0 MAQ-09307000 DSC-246V(-7) standard (with teeth) Stitch length: max. 10mm MAN-10452000 DSC-245V(-7) standard Stitch length: max. 10mm Right-hand type B1529-245-00A B1476-245-00A Stitch length: max. 8mm With teeth Wide type 103-25157 103-25306 Stitch length: max. 10mm Exclusive parts (for LU-1114) Throat plate: 103-25009 Feed dog: 103-25207...
  • Page 247 134 35 (Nm140) Nm110 Nm160 (equivalent to #22, #18 #23 ) Thread #30 #5, B46 B138, Nm=60/3 15/3 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Compressed air and air consumption 0.5MPa (5kgf/cm ), 0.3N /min Safety mechanism Provided as standard...
  • Page 248 WHEN YOU PLACE ORDERS PLC-1610SSSA Specifications Code Throat plate Code Presser foot Code Feed dog Code Pneumatic auto-lifter Code Standard Standard Standard Round hole ( 2.4) Knee switch type (AK116A) Pedal switch type (AK116B) If pedal-switch type B is specified use a servomotor or electronic-stop motor (DC 24 V is required.) PLC-1610SSA-7-0B...
  • Page 249 2-needle, Post-bed, Unison-feed, Lockstitch Machine PLC-1660 The post-shaped bed minimizes bed's diameter, thereby providing easy operation for three-dimensional sewing. Equipped with a unison-feed system that perfectly synchronizes the presser foot, feed dog and needle, the machine feeds large-sized materials smoothly and forcefully. This results in consistent sewing performance at high speeds without irregular feed.
  • Page 250 #30 #5, B46 B138, Nm=60/3 15/3 #8 #1, B92 B207, Nm=30/3 8/3 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Compressed air and air consumption 0.5MPa (5kgf/cm ), 0.3N /min Safety mechanism Provided as standard...
  • Page 251 WHEN YOU PLACE ORDERS Specification Code Presser foot Code Feed dog Code Standard Standard Round hole( 2.4) Thick-thread long-pitch Provide with a center guide Slot (2.4mm 3.8mm) for S type (standard) (needle gauge: 8mm) For thick-thread long-pitch type Slot (3.5mm 4.5mm) for L type (standard) L, the needle gauge code is "D"...
  • Page 252 134 35 (Nm120) Nm100 Nm140 Thread #30 #8, B46 B92, Nm=60/3 30/3 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No. 1 (equivalent to ISO VG7) Safety mechanism Provided as standard Bobbin wider Built on the machine arm Post height 420mm 424.5mm...
  • Page 253 PLH-981 (1-needle) PLH-982 (2-needle) With JUKI's unique slide thread take-up lever, feed mechanism, and vertical-axis hook, the machine provides well-tensed, neatly finished seams every time. The stitch length can easily be adjusted with the stitch dial. Reverse-feed stitching is actuated by a simple press of the lever.
  • Page 254 WHEN YOU PLACE ORDERS 1-needle, Bottom-feed 1-needle, Needle-feed PLH-981 PLN-985 2-needle, Bottom-feed 2-needle, Needle-feed PLH-982B PLN-986B Needle gauge Code Needle gauge Code 1.2mm 1.6mm 1.6mm 2.4mm (standard) 2.0mm 2.4mm (standard) GAUGE TABLE (2-NEEDLE TYPE) Model Needle gauge Gauge set Needle clamp Needle guide Throat plate Feed dog...
  • Page 255 794 (Nm230) Nm130 Nm280 or DY 3 #21 #28 Thread #8 #0, B92 B277, Nm=30/3 8/3 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Bobbin wider Built on the machine arm Distance from needle to machine arm 420mm Bed size...
  • Page 256 Built on the machine arm 50.8 (2") Lubrication By an oiler 63.5 (2-1/2") Lubricating oil JUKI New Oil No.1 (equivalent to ISO VG7) Distance from needle to machine arm 750mm Bed size 1,088mm 230mm Weight of the machine head 108kg...
  • Page 257 794 (Nm230) Nm130 Nm280 Thread #8 #0, B92 B277, Nm=30/3 8/3 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Bobbin winder Built on the machine arm Distance from needle to machine arm 420mm Cylinder-bed diameter...
  • Page 258 Thread #8 #0, B92 B277, Nm=30/3 8/3 Lubrication By an oiler Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Bobbin wider Built on the machine arm Top-feed method Interlocked with the bottom-feed mechanism Distance from needle to machine arm...

  • Page 259: Control Panel Specifications

    AC SERVOMOTOR/ ELECTRONIC-STOP MOTOR SERIES AC SERVOMOTOR/CONTROLLER SC-800 CONTROL PANEL SPECIFICATIONS The servomotor starts up and stops with high speed and Function Pictgraph CP-60 CP-160 CP-360 extreme accuracy. With its proven reliability and quality, Power indicator lamp (LED) the machine offers further upgraded efficiency and comfort in operation.
  • Page 260 PSC BOX/CONTROL PANEL/MOTOR FOR SC 1-needle, lockstitch machine SC800- Control box Code Pulley belt Code Control panel Code Standard Lockstitch for general fabric CP-60 Pulley: 75, Belt: 38 inches Optional unit A CP-160 (for the ED-2 and the AE-4) CP-360 LH-3100 series SC800- Control box...
  • Page 261 AC SERVOMOTOR/CONTROLLER SC-380 The SC-380 is provided with many different standard functions, including speed-control, soft-start, automatic reverse stitching with the specified number of stitches, constant- dimension stitching, and overlapped (multi-layered) stitching. These functions ensure sewing performance optimally suited to the material and process. With its higher torque under low-speed sewing, the SC-380 enables the machine to smoothly start sewing operation.
  • Page 262 ELECTRONIC-STOP MOTOR/ CONTROL PANEL SPECIFICATIONS CONTROL BOX EC-10B EC10B/CP-160 Function EC-10B (optional) The EC-10B enables the sewing machine to perform thread trimming, stop with its needle up/down, Automatic thread trimmer perform automatic reverse feed stitching at sewing start and sewing end, and perform one-touch reverse feed Automatic back tack function stitching with a switch.
  • Page 263 PSC BOX/CONTROL PANEL/MOTOR FOR EC-10B EC10B- Power supply Code Control panel Code For General Export 220V Not provided 110V 1-needle, lockstitch machine For North America Provided 220V LH-3100, LZ-2280N series For CE 230V Motor for EC-10B 1-needle, lockstitch machine Power supply Code Frequency Code...

  • Page 264: Applicable Model

    AC SERVOMOTOR/CONTROLLER SC-350 APPLICABLE MODEL (FOR DDL-5550N-7, DDL-8700-7) PSC box Applicable model SC-800 EC-10B SC-350 The machine is driven by an AC servomotor that introduces a neodymium-system rare-earth magnet that generates higher DDL-5550N-7 magnetic energy without the use of a mechanical brake or brush. DDL-8700-7 The SC-350 is significantly smaller and lighter than conventional DDL-5600N-7...
  • Page 265 Cloth Puller V050 SERIES The cloth puller effectively prevents sewing trouble, including irregular stitches, puckering and stitch gathering. In addition, it controls the straight stitching capability of the sewing machine. The feed amount can be easily regulated by the simple operation of a dial.
  • Page 266 FOR 1-NEEDLE, LOCKSTITCH MACHINES Type Model Applicable model Feature The roller is spaced only 28mm from the needle. This makes the roller V051A , DLD highly adaptable to the sewing of sharp curves and extermely short Proximity type lengths of material. To avoid interference with the presser foot during V051B processes such as reverse stitching, the roller comes with an automatic double-stepped stroke lifter that lifts the roller to certain height for turn-...
  • Page 267 FOR MS SERIES (2-NEEDLE, FEED-OFF-THE-ARM, DOUBLE-CHAINSTITCH MACHINES) Type Model Applicable model Feature This type of cloth puller is suited for joining the sides of skirts and seaming sleeve and side of shirts or blouses. The device employ an MS-1190 Cloth puller with a large roller V054A intermittent feed method, which is almost same as the continuous feed MS-2260...
  • Page 268 With a side plate and an AK roller type device type V051A V051B V051C V051D V052A V052B V056A DDL-5530N DDL-5550N, -7 DDL-5600N, -7 DLD-5430N, -7 DLU-5490N, -7 DLN-5410N, -7 For LH series For MS series For MH series For MO series...
  • Page 269 Personal computer PGM-20 The PGM-20 programming software for computer-controlled sewing ROM writer machines is especially designed for creating pattern data for JUKI's AMS- series computer-controlled cycle machines, JUKI's AVP-series sewing machines, JUKI's LK-1900 series computer-controlled, high-speed Digitizer bartacking machines, JUKI's MOL-254 automatic belt-loop attaching...
  • Page 270 inch mm CONVERSION TABLE 1” = 25.4mm inch 0” 1” 2” 3” 4” 5” 6” 7” 8” 25.4 50.8 76.2 101.6 152.4 177.8 203.2 1/64 015625 0.3969 25.7969 51.1969 76.5969 101.9969 127.3969 152.7969 178.1969 203.5969 1/32 03125 0.7938 26.1938 51.5938 76.9938 102.3938 127.7938...
  • Page 271 TABLE OF WEIGHT MEASURES 1. LINEAR MEASURE Centi- Kilo- 1 league (l.) =3 miles Inches Meters Feet Meters Yards Miles meters meters 1 mile (m. mi.) =8 furlongs 1 furlong (fur.) =40 rods 2.540 0.394 0.305 3.281 0.914 1.094 1.609 0.621 1 rod (rd.) =5-1/2 yards...
  • Page 272 8-2-1, KOKURYO-CHO, CHOFU-SHI, TOKYO 182-8655, JAPAN Phone : 81-3-3430-4001 4 Fax : 81-3-3430-4909,4914 http://www.juki.co.jp...

This manual is also suitable for:

Ddl-8700-7Ddl-5550nDdl-9000Ddl-5600nDdl-5550n-7Ddl-8700 ... Show all

Table of Contents

Save PDF
