4.11.1 Model 1B PCI Backplane

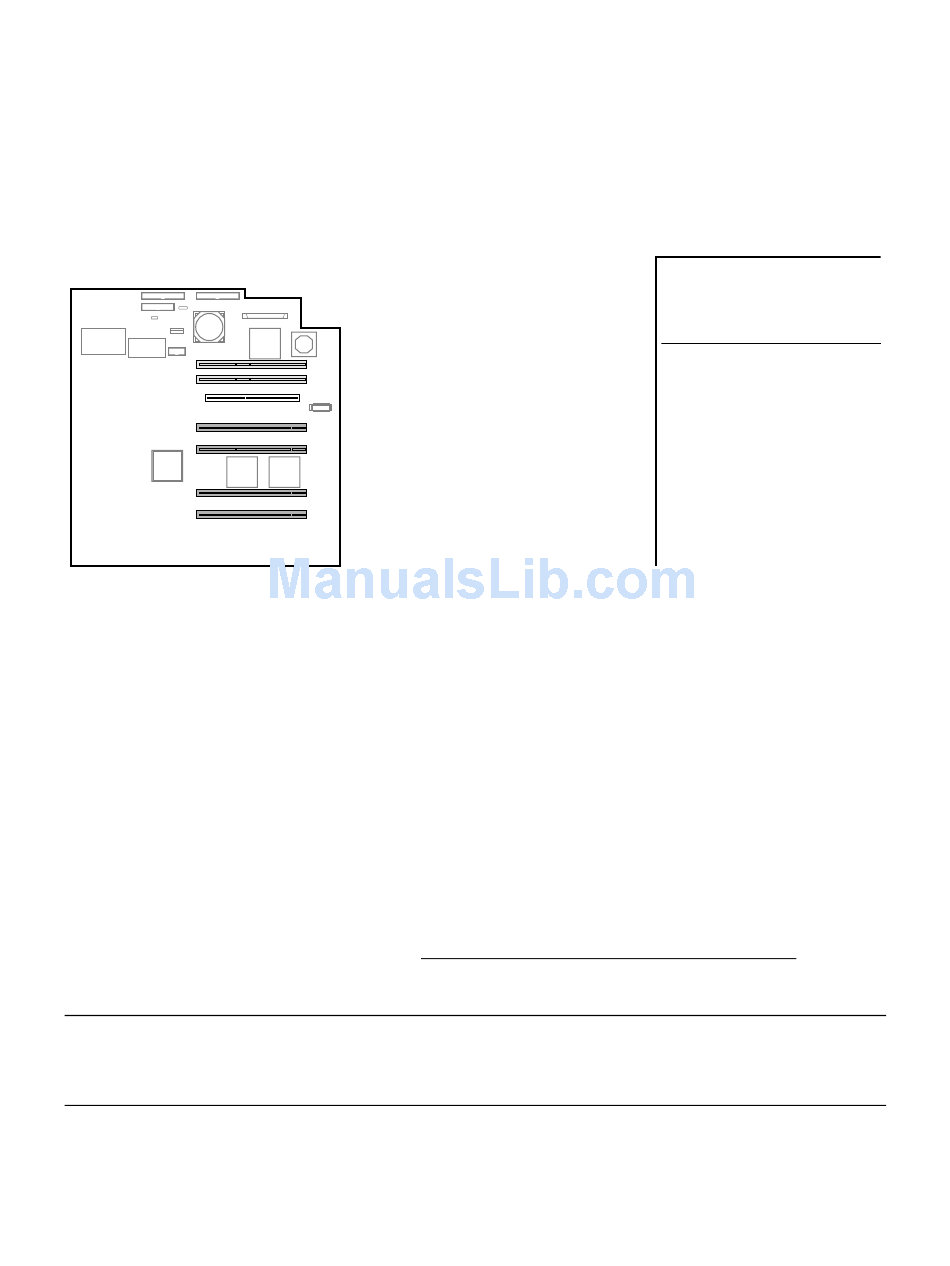

Figure 4–15 Model 1B Backplane (Seven Slots)
6-Slot PCI, 1-Slot AGP, I/O Backplane
1
2
3
4
5
7
8
9
10
The I/O slots are split across four independent 64-bit PCI buses, two buses at 66
MHz, one bus at 33 MHz and one bus for AGP with 4x transfer mode. These
buses correspond to Hose 0 through Hose 3 in the system logical configuration.
Some PCI options require drivers to be installed and configured. These options
come with a floppy or a CD-ROM. Refer to the installation document that came
with the option and follow the manufacturer's instructions.
There is no direct correspondence between the physical numbers of the slots on
the I/O backplane and the logical slot identification reported with the SRM con-
sole show config command (described in Chapter 2). The table in Figure 4–15
maps the physical slot numbers to the SRM logical ID numbers for the back-
plane.
For information on restriction, see http://www.compaq.com/alphaserver/.
NOTE: To take advantage of 66 MHz, all modules in that hose must be 66 MHz
capable.
4-32 ES45 Owner's Guide
Max
Speed Voltage Hot-Plug SRM Console
33 MHz 5.0V No Hose 0 Slot ID 11
33 MHz 5.0V No Hose 0 Slot ID 10
AGP 4X 1.5V No
Hose 2 Slot ID 5
66 MHz 3.3V Yes Hose 3 Slot ID 2
66 MHz 3.3V Yes Hose 3 Slot ID 1
66 MHz 3.3V Yes Hose 1 Slot ID 2
66 MHz 3.3V Yes Hose 1 Slot ID 1
Quick Reference
SRM Console to
Physical Slot Location
SRM Console Physical Slot
1
Hose 0
Slot ID 11
2
Slot ID 10
3
Hose 2 AGP Slot ID 5
7
Slot ID 2
Hose 1
8
Slot ID 1
Hose 3 Slot ID 2
4
Slot ID 1
5
MR0259A
