4.11.2 Model 2B PCI Backplane

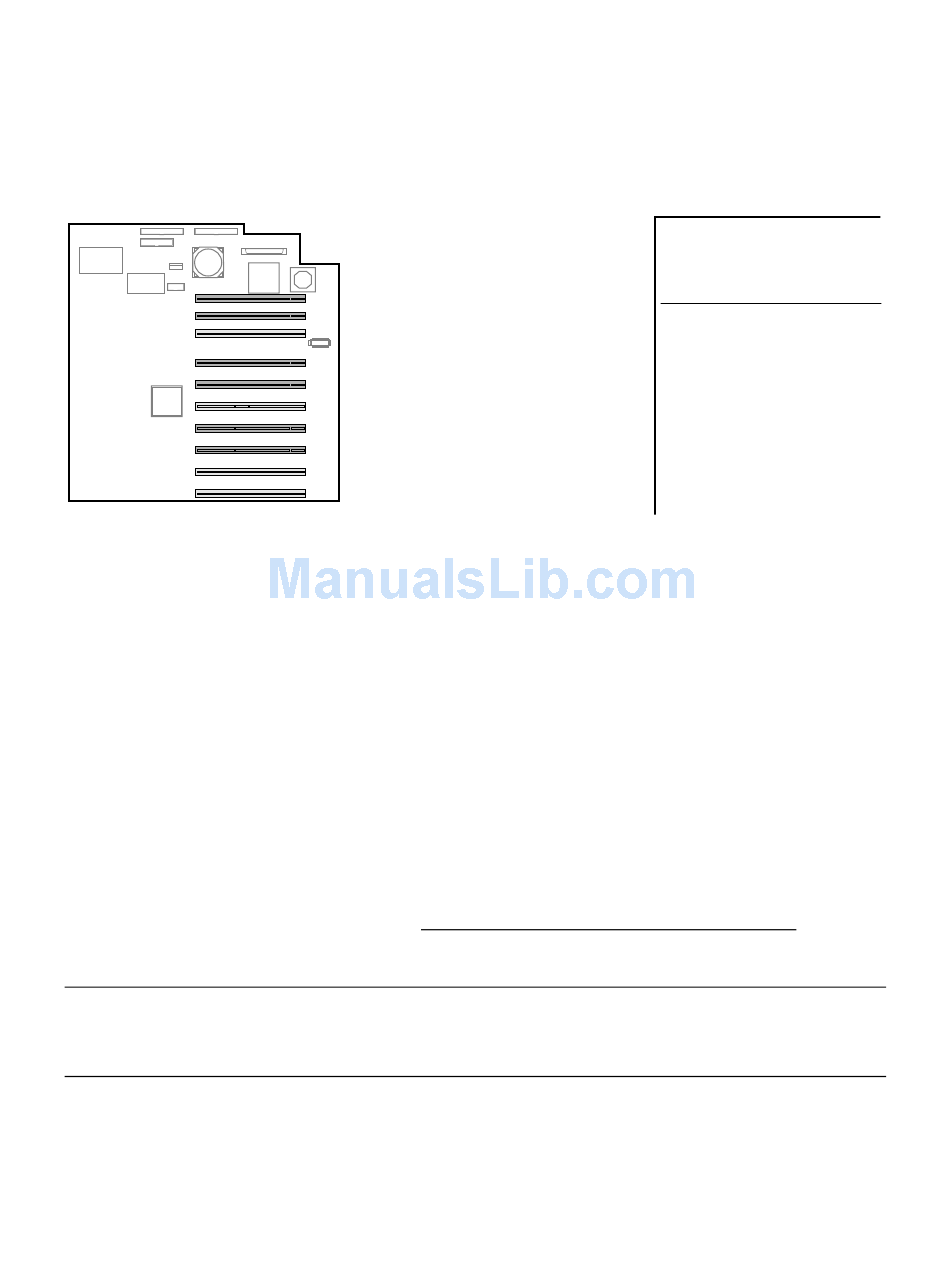

Figure 4–16 Model 2B (Ten Slots)
10-Slot PCI I/O Backplane
1
2
3
4
5
6
7
8
9
10
The PCI slots are split across four independent 64-bit PCI buses, three buses at
66 MHz and one bus at 33 MHz. These buses correspond to Hose 0 through
Hose 3 in the system logical configuration.
Some PCI options require drivers to be installed and configured. These options
come with a floppy or a CD-ROM. Refer to the installation document that came
with the option and follow the manufacturer's instructions.
There is no direct correspondence between the physical numbers of the slots on
the I/O backplane and the logical slot identification reported with the SRM con-
sole show config command (described in Chapter 2). The table in Figure 4–16
maps the physical slot numbers to the SRM logical ID numbers for the back-
plane.
For information on restriction, see http://www.compaq.com/alphaserver/.
NOTE: To take advantage of 66 MHz, all modules in that hose must be 66 MHz
capable.
Max
SRM Console
Speed Voltage Hot-Plug
Hose 2 Slot ID 1
66 MHz 3.3V No
Hose 2 Slot ID 2
66 MHz 3.3V No
Hose 0 Slot ID 11
33 MHz 5.0V No
66 MHz 3.3V Yes Hose 3 Slot ID 2
66 MHz 3.3V Yes Hose 3 Slot ID 1
33 MHz 5.0V Yes Hose 0 Slot ID 10
66 MHz 3.3V Yes Hose 1 Slot ID 2
66 MHz 3.3V Yes Hose 1 Slot ID 1
33 MHz 5.0V Yes Hose 0 Slot ID 9
33 MHz 5.0V Yes Hose 0 Slot ID 8
Configuring and Installing Components
Quick Reference
SRM Console to
Physical Slot Location
SRM Console Physical Slot
10
Hose 0 Slot ID 8
Slot ID 9 9
Slot ID 10
6
3
Slot ID 11
Hose 1 Slot ID 1 8
Slot ID 2 7
1
Hose 2 Slot ID 1
Slot ID 2 2
Hose 3 Slot ID 1 5
Slot ID 2 4
PK0974C
4-33
