QuickSpecs
Overview
Standard Features
Power Specifications
TechSpecs
QuickSpecs
Compaq ProLiant ML350 Generation 2 (G2)
Models
Options
Memory
DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003
Compaq ProLiant ML350 Generation 2
Storage
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ProLiant ML350 (G2) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compaq ProLiant ML350 (G2)

Summary of Contents for Compaq ProLiant ML350 (G2)

  • Page 1 QuickSpecs Compaq ProLiant ML350 Generation 2 Overview Standard Features Models Options Memory Storage Power Specifications TechSpecs QuickSpecs Compaq ProLiant ML350 Generation 2 (G2) DA - 10960 Worldwide QuickSpecs — Version 39 — 2.13.2003 Page 1...

  • Page 2: Standard Features

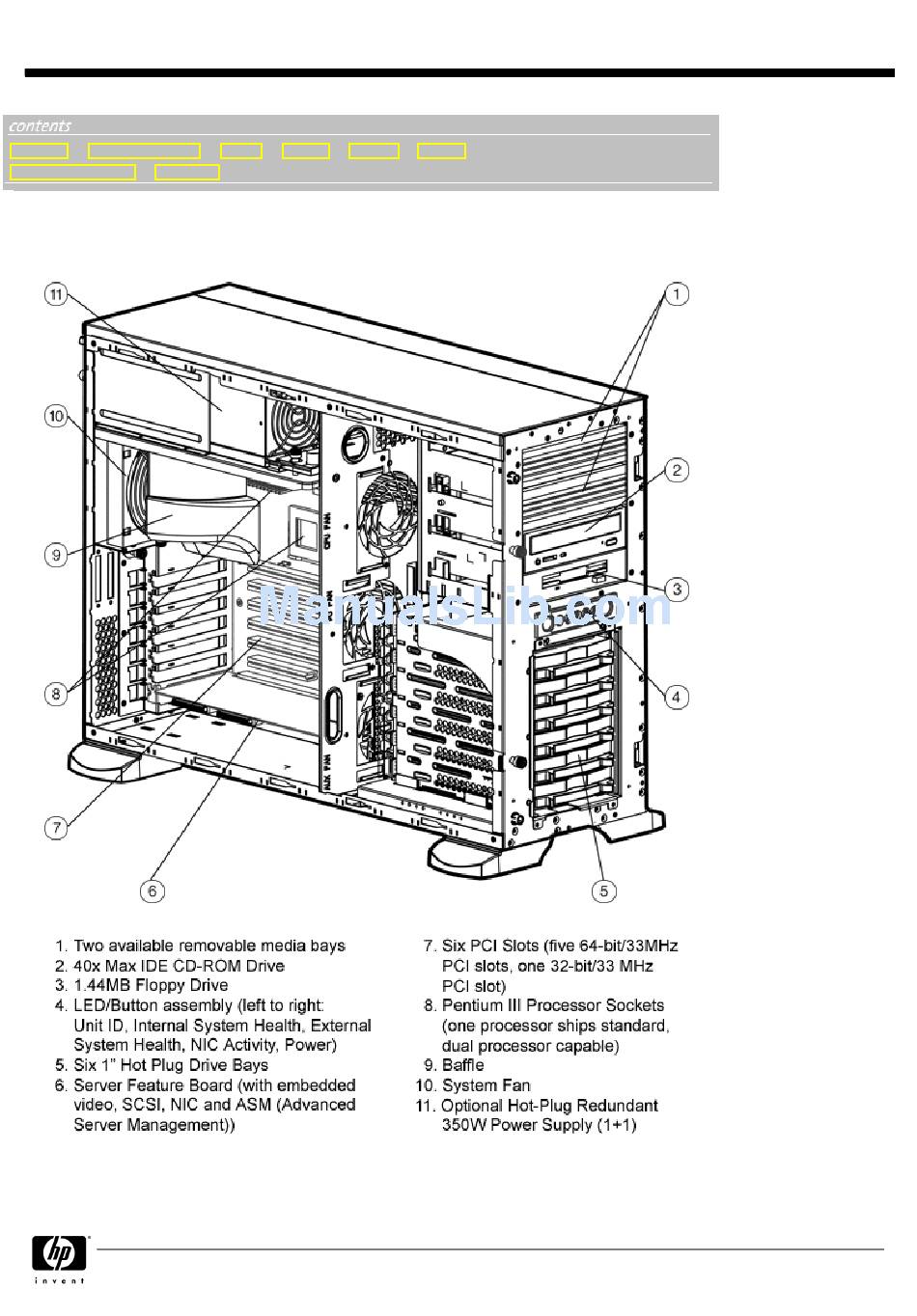

    Compaq ProLiant ML350 Generation 2 At A Glance The Compaq ProLiant™ ML350 Generation 2 (G2) 2-way rack or tower server delivers affordable performance and essential availability to corporate workgroups and growing businesses Intel  Pentium lll 1.40 GHz, or 1.26 GHz FC-PGA2 (Flip Chip-Pin Grid Array) processor (dual...
  • Page 3 QuickSpecs Compaq ProLiant ML350 Generation 2 Expansion Slots I/O (6 Total, 6 PCI Voltage: Available) 64-bit/33MHz, 5 (5 available) (Array model has 4 3.3 Volt available) 32-bit/33MHz, 1 (1 available) 5 Volt Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter...
  • Page 4 QuickSpecs Compaq ProLiant ML350 Generation 2 allows systems administrators to take full graphical control of ProLiant servers in remote locations or lights-out data centers. Finally, Insight Manager 7 in concert with the Version Control Agents and Version Control Repository Manager enables systems administrators to version manage and update system software across groups of ProLiant servers.
  • Page 5 Note: Optional Hot Plug Redundant Power Supply available (PN 237046-xx1). System Fans 1 fan ships standard. 1 total supported internally. Required Cabling For required cabling information, refer to the Compaq Web site at http://www.compaq.com/products/servers/proliantML350. Note: This Web site is available in English only. OS Support Microsoft Windows NT ...
  • Page 6 Note: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf. Note: Optional hardware may be required to support some operating systems. Note: For an up-to-date listing of the latest drivers available for the Compaq ProLiant ML350, please see: http://www.compaq.com/support/files/server/us/index.html. Rack Airflow...
  • Page 7 Compaq ProLiant ML350 Generation 2 web_statements/176738.html. For additional information regarding Worldwide Limited Warranty and Technical Support, please see the following URL: ftp://ftp.compaq.com/pub/supportinformation/ejourney/176738.pdf. Note: Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details. Overview Standard Features Models...
  • Page 8 Integrated 512-KB Level 2 ECC 225861-xx1 Memory 128-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM Network Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 Controller Storage Integrated Dual Channel Wide Ultra3 SCSI Adapter Controller Hard drive None ship standard Internal Storage 1.174 TB maximum hot plug (with optional hard drives &...
  • Page 9 263636-xx1 Memory 256-MB (Standard) to 4-GB (Maximum) PC133-MHz ECC Registered SDRAM DIMM Note: Not available in Network Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 EMEA. Controller Storage Integrated Dual Channel Wide Ultra3 SCSI Adapter and Controller Smart Array 532 Controller...
  • Page 10 Note: This license allows 10 servers to be managed and deployed via the Deployment Server. ProLiant Essentials Workload Management Pack 303284-B21 (Featuring Compaq Resource Partitioning Manager version 2.0) ProLiant Essentials Recovery Server Option Pack 280189-B21 ProLiant Essentials Performance Management Pack v2.0,...
  • Page 11 QuickSpecs Compaq ProLiant ML350 Generation 2 Note: Provides on-site review, installation and configuration services for Insight Manager 7. HP will also re-create, as closely as possible, the views and reports from the customer’s current TopTools configuration. This service assures a smooth transition to the ProLiant Essentials software.
  • Page 12 QuickSpecs Compaq ProLiant ML350 Generation 2 72.8GB 15,000 rpm, U320 Universal Hard Drive, 1  286778-B22 Note: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds and will run at U3 within the ML350 G2. Note: Please see the Hard Drive QuickSpecs for Technical Specifications...
  • Page 13 Compaq WL410 Wireless SMB Access Point (S. Africa) 191811-AR1 Communications Compaq NC3123 Fast Ethernet NIC PCI 10/100 WOL 174830-B21 Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Port 138603-B21 10/100 Compaq NC3135 Fast Ethernet Module Dual 10/100 138604-B21 Upgrade Module for NC3134 and NC3131...
  • Page 14 Remote Insight Lights-Out Edition II (NA, LA) 227251-001 Remote Insight Lights-Out Edition II (EMEA) 227251-021 Remote Insight Lights-Out Edition II (ROW) 227251-371 Compaq Remote Insight Lights-Out Edition (NA, LA) 157866-001 Compaq Remote Insight Lights-Out Edition (EURO) 157866-021 Compaq Remote Insight Lights-Out Edition 157866-371...
  • Page 15 QuickSpecs Compaq ProLiant ML350 Generation 2 -C92 EH model for Mercosur countries Carbon -B29 EH/ALADI model for Latin America Note: All NA/LA models above are NH. EUROPE, MIDDLE EAST AND AFRICA (EMEA) Dash # Description -021 NH/TCO with Eurocord (DCE Hub)
  • Page 16 QuickSpecs Compaq ProLiant ML350 Generation 2 Dash # Description -021 Europe -031 NORTH AMERICA Dash # Description -001 -B24 All NA/LA models Dash # Description -011 Australia/NZ JAPAN (CKK) Dash # Description -291 Japan Tape Drives Note: In order to install certain tape drives internally, you may need to remove the rails that come standard on the drives and then re-insert the screws in the mounting holes.
  • Page 17 QuickSpecs Compaq ProLiant ML350 Generation 2 Internal and External AIT Tape Drives Note: The Internal AIT Hot Plug Drives are supported in the drive bay only. When installing an AIT tape drive into an ML350 ProLiant server you must use the special screw included with the drive kit in order for the drive to seat properly in the ML350 drive bay.
  • Page 18 QuickSpecs Compaq ProLiant ML350 Generation 2 Note: Please see the AIT 100-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following: http://www5.compaq.com/products/quickspecs/11062_div/ 11062_div.HTML...
  • Page 19 (North America) External SuperLoader DLT1 1280 SuperLoader 268664-B21 Note: Please see the StorageWorks  DLT1 1280 SuperLoader by Compaq QuickSpecs for additional options and for an up-to-date listing of the latest O/S Support details, please see the following: http://www5.compaq.com/products/quickspecs/11330_div/ 11330_div.HTML (Division/World Wide) http://www5.compaq.com/products/quickspecs/11330_na/...
  • Page 20 QuickSpecs Compaq ProLiant ML350 Generation 2 Note: Please see the HP StorageWorks Ultrium 460 Tape Drives for ProLiant QuickSpecs for additional options such as data and cleaning cartridges, and for an up-to-date listing of the latest O/S Support details, please see the following: http://www5.compaq.com/products/quickspecs/11530_div/...
  • Page 21 274339-B21 Note: The 5U Rackmount Kit (PN 274339-B21) can support up to (4) full-height tape drives and is compatible with all Compaq DLT/SDLT tape drives including the 20/40-GB DLT, 35/70-GB DLT, 40/80-GB DLT, and the SDLT 110/220-GB tape drives. Note: Please see the Rackmount Tape Drive Kits QuickSpecs for additional information regarding these kits, please see the following: http://www5.compaq.com/products/quickspecs/10854_div/...
  • Page 22 QuickSpecs Compaq ProLiant ML350 Generation 2 Required Adapters/Controllers for SSL2020 AIT Library 64-Bit/66-Mhz Dual Channel Wide Ultra3 SCSI 129803-B21 Adapter SAN Access Module for Smart Array 5302 Controller 216687-B21 SAN Access Module for Smart Array 5302 Controller 216687-291 (Japan) Note: Please see the SSL2020 Automated AIT Tape Library Solution...
  • Page 23 QuickSpecs Compaq ProLiant ML350 Generation 2 MSL5026S2 SDLT Library MSL5026S2, Rackmount, 0 Drive Library 293472-B21 MSL5026S2, Rackmount, 1 Drive, SDLT2 Library 293472-B22 MSL5026S2, Rackmount, 2 Drives, SDLT2 Library 293472-B23 MSL5026S2FC, Rackmount, 1 Drive, SDLT2 Library 293472-B24 MSL5026S2FC, Rackmount, 2 Drives, SDLT2 Library...
  • Page 24 QuickSpecs Compaq ProLiant ML350 Generation 2 MSL5030 LTO Library MSL5030L1, Rackmount, 0 Drive Library 301897-B21 MSL5030L1, Rackmount, 1 Drive, LTO1 Library 301897-B22 MSL5030L1, Rackmount, 2 Drives, LTO1 Library 301897-B23 MSL5030L1FC, Rackmount, 1 Drive, LTO1 Library 301897-B24 MSL5030L1FC, Rackmount, 2 Drives, LTO1 Library...
  • Page 25 (PN 153506-B21) is an upgrade cache module (128 MB Standard) for Smart Array Cluster Storage Controller. Note: Please see the Compaq Smart Array Cluster Storage QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://www5.compaq.com/products/quickspecs/11050_na/...
  • Page 26 11033_na.HTML (North America) http://www5.compaq.com/products/quickspecs/11033_div/ 11033_div.HTML (Division/World Wide) Compaq UPS Power Cord Please see the Compaq UPS Power Cord Reference Guide that lists Reference Guide cable descriptions, requirements, and specifications for Compaq UPS units. ftp://ftp.compaq.com/pub/products/servers/proliantstorage/ power-protection/powercordmatrix.pdf. Uninterruptible Power Compaq Pro UPS 500 (300 Watt) 120V (NA) 136386-001 Systems –...
  • Page 27 QuickSpecs Compaq ProLiant ML350 Generation 2 Compaq UPS R3000 XR (2400VA, 2250 Watt), Low 192186-291 Voltage (Japan) Compaq UPS R3000 XR (3000VA, 2700 Watt), High 192186-292 Voltage (Japan) Compaq UPS R3000 XR (3000VA, 2700 Watt), High 192186-B31 Voltage (Int’l – detachable cord)
  • Page 28 QuickSpecs Compaq ProLiant ML350 Generation 2 Rack-Mountable PDUs – Compaq Power Distribution Unit-16A (200 to 240V) (WW) 207590-B21 1U/0U (up to 12 outlets) Note: The 16A PDU also connects to the high volt models Note: 0U mounting brackets of the UPS R3000 XR (need cable PN 340653-001 (NA)) shipped with the unit and the UPS R6000 models.
  • Page 29 QuickSpecs Compaq ProLiant ML350 Generation 2 PDU Options 1U PDU Mounting Brackets Kit 215852-B21 Note: The 1U PDU Mounting Brackets are required when mounting PDU’s PN 207590-xxx series in 1U configurations. Third Party PDU Mounting Kit 310777-B21 Note: This kit allows you to mount the Modular PDUs in racks other than the 9000/10000 Series racks (any racks using the standard 19"...
  • Page 30 -B23 (crated) used for air shipments of empty racks Note: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all Compaq equipment is qualified to be shipped in the Rack 10000 series.
  • Page 31 QuickSpecs Compaq ProLiant ML350 Generation 2 Note: -B21 (pallet) used to ship empty racks shipped on a truck -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels) -B23 (crated) used for air shipments of empty racks...
  • Page 32 Compaq Rack 9000 42U Side Panel 120670-B21 Series Note: The 42U Side Panel (PN 120670-B21) supports the Compaq Rack 9142 and Compaq Rack 9842. 36U Side Panel 120671-B21 Note: The 36U Side Panel (PN 120671-B21) supports the Compaq Rack 9136.
  • Page 33 QuickSpecs Compaq ProLiant ML350 Generation 2 Compaq Rack Extension Kit for 7142 154392-B21 Note: For additional information regarding Rack Options, please see the following URL:http://www.compaq.com/rackoptions Rack Options for Rack Monitor Utility Shelf 303606-B21 7000, 9000 and 10000 Ballast Option Kit...
  • Page 34 QuickSpecs Compaq ProLiant ML350 Generation 2 IP CAT5 Cable 20  , 4 pack 263474-B24 IP CAT5 Cable 40  , 1 pack 263474-B25 Switch Box Connector Kit (115 V) 144007-001 Switch Box Connector Kit (230 V) 144007-002 Switch Box Connector Kit (High Voltage) (Int’l) 144007-B33 1U Rack Keyboard &...
  • Page 35 Number for EMEA) Pre-installation planning; unpack equipment, install most 240013-002 current Compaq HW options internal to server at same time of server installation; assemble & test; basic user information provided; Install & configure basic functionality of Win NT Operating System plus up to 1 day start-up activity, configure print &...
  • Page 36 QuickSpecs Compaq ProLiant ML350 Generation 2 9 x 5 HW, 4-hr response, Next Available HW engineer; 9 239968-002 x 5 Bronze Software Support 2-hr response for Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.) 9 x 5 HW, 4-hr response, Next Available HW engineer; 9...
  • Page 37 4096 MB 1024 MB 1024 MB 1024 MB 1024 MB Following are memory options available from Compaq: 1024-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit 128280-B21 512-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit 128279-B21 256-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit...
  • Page 38 4096 MB 1024 MB 1024 MB 1024 MB 1024 MB Following are memory options available from Compaq: 1024-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit 128280-B21 512-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit 128279-B21 256-MB PC133-MHz Registered ECC SDRAM DIMM Memory Option Kit...
  • Page 39 QuickSpecs Compaq ProLiant ML350 Generation 2 Ultra320 Hot Pluggable Drives 1-inch Up to 8 Integrated Dual Channel Wide Ultra3 SCSI 146.8-GB 10,000 rpm (With optional Adapter 72.8-GB 10,000 rpm ML3xx Internal Smart Array 532 Controller 36.4-GB 10,000 rpm Two Bay Hot (Note: The Smart Array 532 Controller ships 72.8-GB 15,000 rpm...
  • Page 40 QuickSpecs Compaq ProLiant ML350 Generation 2 http://www5.compaq.com/products/quickspecs/North_America/10809.html (North America) http://www5.compaq.com/products/quickspecs/Division/10809.html (Division/World Wide) Internal AIT 100-GB, Hot Up to 2 0 1, 2 3 Integrated Dual Channel Wide Ultra3 SCSI Plug Up to 3 0 1, 2 3, Adapter Internal AIT 50-GB, Hot Plug...

  • Page 41: Power Specifications

    QuickSpecs Compaq ProLiant ML350 Generation 2 MSL5052SL (SDLT-based) Library MSL5052S2 (SDLT-based) Library MSL5030L1 (LTO-based) Library MSL5060L1 (LTO-based) Library 20/40-GB DAT 8 Cassette Up to 1 External 64-Bit/66-MHz Dual Channel Wide Ultra3 Autoloader External SCSI Adapter 64-Bit/66-MHz Single Channel Wide Ultra3...
  • Page 42 QuickSpecs Compaq ProLiant ML350 Generation 2 Nominal Input Voltage (Vrms) Fully Loaded System Input Wattage (W) Fully Loaded System Input Current (A rms) 1503 1480 1458 1436 1416 1395 Fully Loaded System Thermal (BTU-Hr) Fully Loaded System VA (Volt-Amp) System Leakage with all power supplies 0.63...
  • Page 43 QuickSpecs Compaq ProLiant ML350 Generation 2 Weight 60 lb/27.24 kg (without hard drives) (approximate) Input Requirements Rated Input Voltage 100 to 120 VAC/200 to 240 (per power supply) Rated Input 50 Hz to 60 Hz Frequency Input Power 538W @ 110 VAC...
  • Page 44 QuickSpecs Compaq ProLiant ML350 Generation 2 System Unit – Rack Dimensions 8.61 x19 x 24 in/21.87 x48.26 x 60.96 cm (HxWxD) Weight 60 lb/27.24 kg (without hard drives) (approximate) Input Requirements Rated Input Voltage 100 to 120 VAC/200 to 240...
  • Page 45 QuickSpecs Compaq ProLiant ML350 Generation 2 1.44-MB Diskette Drive LED Indicators (front Green panel) Read/Write Capacity 1.44 MB/720 KB Diskette (high/low density) Drive Supported Drive Height One-third Drive Rotation 300 rpm Transfer Rate 500/250 Kb/s (high/low) Bytes/Sector Sectors/Track 18/9 (high/low)
  • Page 46 QuickSpecs Compaq ProLiant ML350 Generation 2 Stop Time < 4 seconds Laser Type Semiconductor Laser GaA1As Parameters Wave Length 25 nm Operating Temperature 41° to 113°F/5° to 45°C Conditions Humidity 10% to 80% Dimensions (HxWxD, maximum) 1.7 x 5.85 x 8.11 in/ 4.29 x 150 x 208 cm...
  • Page 47 QuickSpecs Compaq ProLiant ML350 Generation 2 Hewlett-Packard shall not be liable for technical or editorial errors or omissions contained herein. The information is provided "as is" without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements accompanying such products.
