9B-10 LIGHTING SYSTEM
Head Lamp Focusing
When using the beam setting device
1. The head lamp focus should be adjusted by using a proper
beam setting device.
2. Adjust the head lamp focus by using Up/Down, Left/Right
adjusting screws.
When using the screen
1. Put the vehicle on the leveling surface.
2. One person is needed to seat on the driver's seat without
other loads(CVW) and check the tire pressure if it is in the
specification.

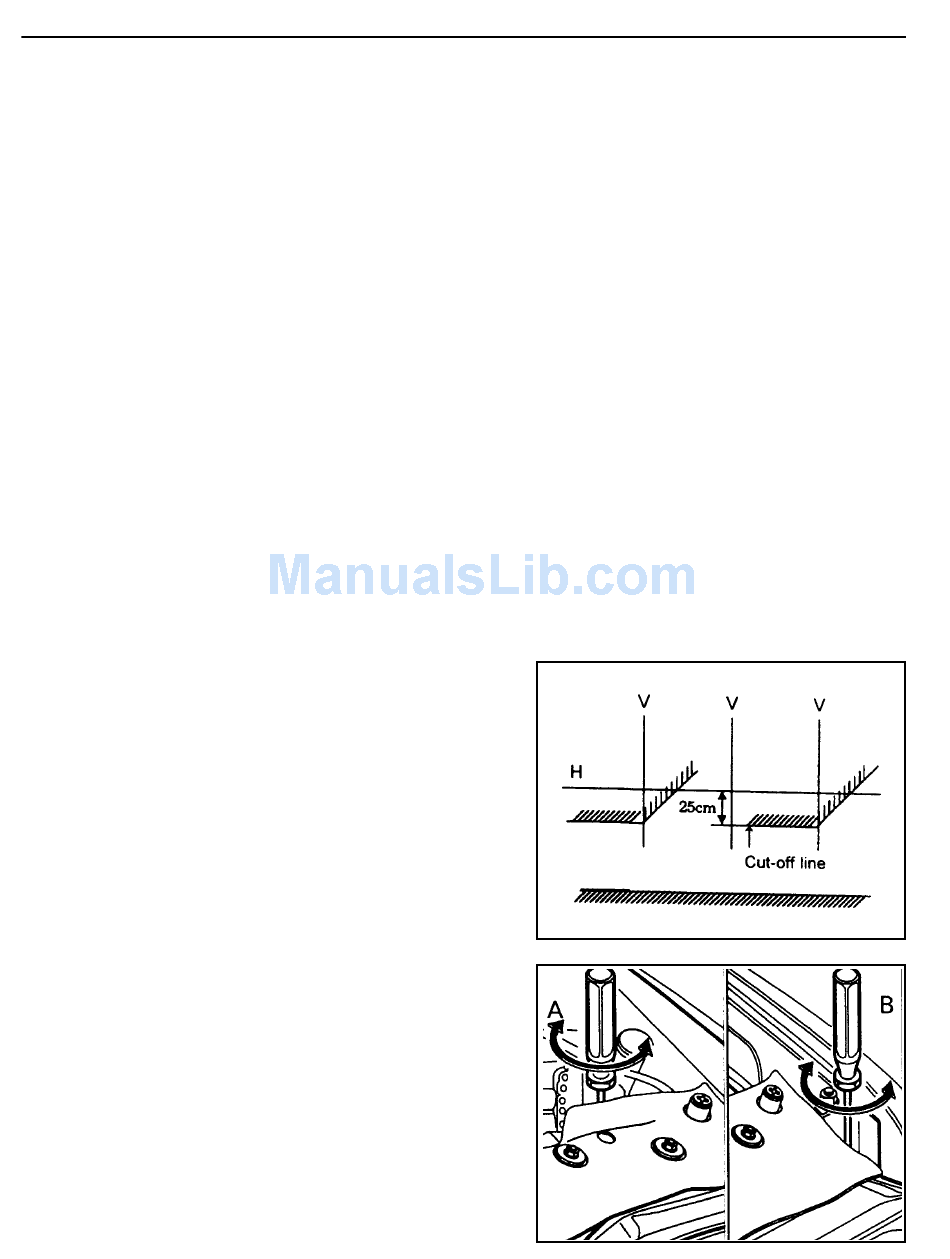

3. The distance between the headlamp and the screen is 25m.
4. Draw the vertical line (crossing the center of each headlamp)
on the screen.
5. Start the engine.
6. Check if the cut-off line of the headlamp on the screen is in
the specification.
1) Left/right direction
- The degree of the cross point at the cut-off line of the
headlamp and the vertical line should be 15.
2) Up/down direction
- The distance between the cut-off line of the headlamp
and the horizontal line should be 25cm.
7. Adjust the focus if the cut-off line of the headlamp is out of
the specification by using up/down, left/right adjusting
screws.
A : Up/down direction adjusting screw
B : Left/right direction adjusting secrw
