Fractal Audio Systems MFC-­‐101 Manual

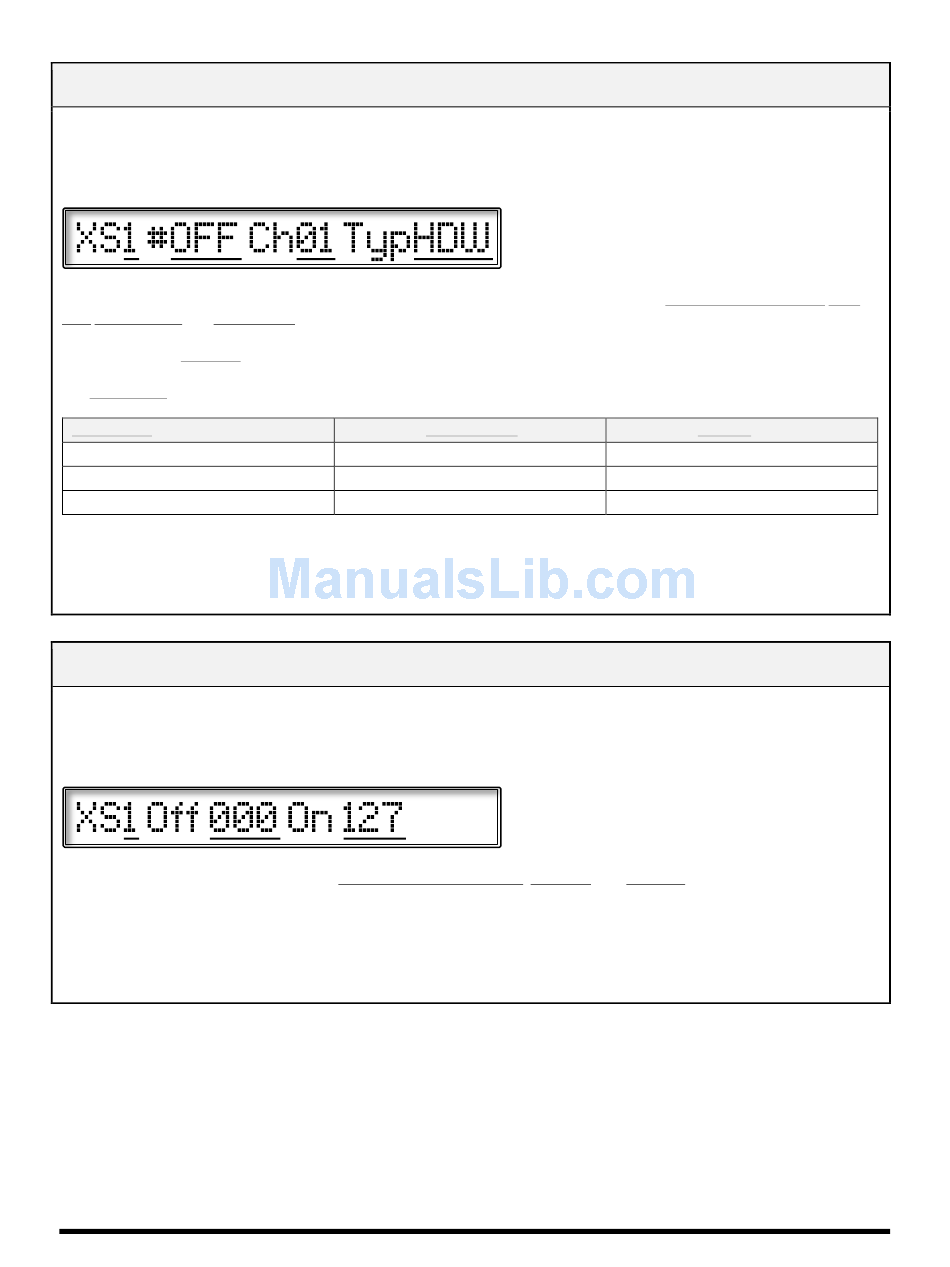

12.4.14 Global External Switch Settings
EDIT : MIDI : PAGE"
(14x)
The Global External Switch Settings page is used to set up each of four optional External Switches with MIDI and switch
behavior settings.
PARAMETER
" footswitches to move between the four parameters of this page: External Switch Number, MIDI
Use the !
CC#, MIDI Channel and Switch Type.
A value of OFF for MIDI CC# disables the selected switch.
The Switch Type parameter determines the "virtual switch" function when the physical switch is "stomped" once:
Switch Type Value
HDW ("Hardware Follow")
TOG ("Toggle")
AUT ("Auto Off")*
* Auto Off Switches send their programmed ON message followed later (~250ms) by the OFF message.
NOTE: The MFC-­‐101 also needs to be configured with the correct External Switch Hardware Type (12.5.17).
NOTE: Global Switch settings may be overridden at the Preset Level. See 12.1.7 on p. 47.
12.4.15 Global External Switch On/Off Values
EDIT : MIDI : PAGE"
(15x)
Global External Switch On/Off Values determines the data value which will be sent when each of four optional external
switches is turned ON or OFF.
PARAMETER
" to select between External Switch (XS) Number, Off Value, and On Value parameters.
Use !
Any setting from 0-­‐127 may be used for either value.
A setting of "OFF" for either state will cause that switch state to send no data.
NOTE: Global Switch ON/OFF values may be overridden at the Preset Level. See 12.1.8 on p. 47.
Doc v3.0
Hardware is MOMENTARY type
Switch behaves as Momentary
Switch behaves as Toggle
Switch behaves as Auto Off
Hardware is TOGGLE type
Switch Behaves as Toggle
Switch behaves as Toggle
Switch behaves as Auto Off
MIDI MENU REFERENCE
PAGE
or ! (4x)
PAGE
or ! (3x)
59
