Fractal Audio Systems MFC-­‐101 Manual
! Global External Switch settings can be overridden by any preset. See 12.1.7 on p. 47.
! Global Expression Pedal settings and range can be different per preset. See section 12.1.9 on p. 48.
! Each preset also has an internal name, shown if AXE-­‐FX MODE is OFF. See section 12.1.1 on p. 43.
4.5 Alternate Presets
Alternate Presets expand the number of sounds at your feet by allowing you to stack 2 presets per footswitch. This
allows you, for instance, to access your choice of clean and dirty sounds from one footswitch, or to have all 5
presets in a standard bank offer go to a "global" lead.
To load the Alternate preset, simply step on the footswitch of the selected preset a second time. Once the
Alternate Preset is loaded, its MIDI data is transmitted, the footswitch LED changes to red, and the preset number
in the display changes to GBL, ALT, or BAK to indicate the type of alternate preset you've landed on.
To set up an Alternate Preset for any given preset:
1. Load the preset you want to add an alternate to in the normal way (press its footswitch).
Note: You can also select any preset manually via the PRESET NUMBER screen shown between
steps 3 and 4, below.
2. Press EDIT footswitch to enter EDIT MODE.
3. Press PRESET footswitch to select the SETUP menu.

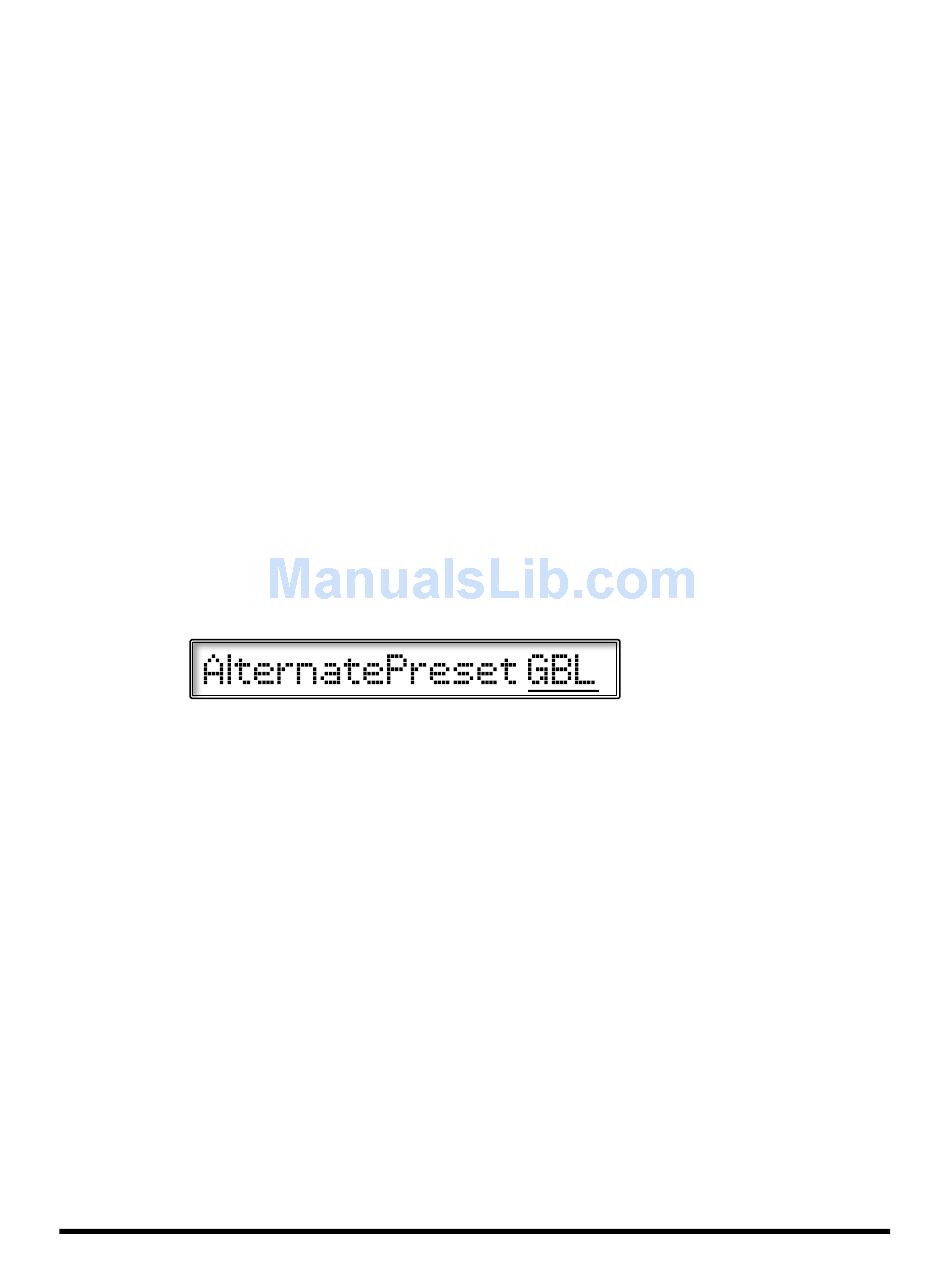

4. Press PAGE" footswitch 3x to get to the Alternate Preset screen:
5. Press the INCR or DECR footswitch to make your selection:
! GBL: The Global alternate preset will load (see below). This is the default.
! 0-­‐383: The specified preset will be loaded as the alternate. (Bank select is automatic).
! OFF: The Alternate preset will be disabled for this preset.
! BAK: Loading the Alternate preset will dynamically "Backtrack" to whichever preset was
6. Press EXIT to return to PERFORMANCE MODE.
Doc v3.0
loaded before the current one.
PRESETS & PRESET MODE
19
