Fractal Audio Systems MFC-‐101 Manual

1.4 Navigating EDIT MODE

The footswitches are used to navigate the menus, pages and parameters of EDIT MODE.

! To enter EDIT MODE, press EDIT.

! Press any of the menu footswitches (1–5) to open a menu.

! Each menu has multiple pages. The !PAGE" footswitches move between these.

! Each page has from 1 to 4 parameters. The !PARAMETER" footswitches move between these.

The currently selected parameter will have an underline cursor beneath the first character of its value.

! The INCR/DECR footswitches scroll through the available values for each parameter.

A few parameters, such as Firmware Version are informational and cannot be edited.

! All navigation, whether through pages, parameters, or values, will cycle to the beginning, or "wrap"

when you reach the end.

! Footswitches may be held down to advance rapidly through a series.

! The ENTER footswitch (#14) is sometimes required to activate special functions.

This is indicated by a blinking LED above the ENTER footswitch.

1.5 Saving Changes

The MFC-‐101 was saves most changes automatically while you use the edit menu. Changes are saved when you:

! Press the EXIT footswitch to return to PERFORMANCE MODE.

! Press either PAGE footswitch.

! Press the footswitch for a menu while in that menu saves to return to the top-‐level menu.

! Press UP or DOWN to select/edit a different Preset, IA Switch, External CC, XP, etc.

There is no UNDO on the MFC-‐101.

Any unsaved changes will be lost if power is disconnected.

Doc v3.0

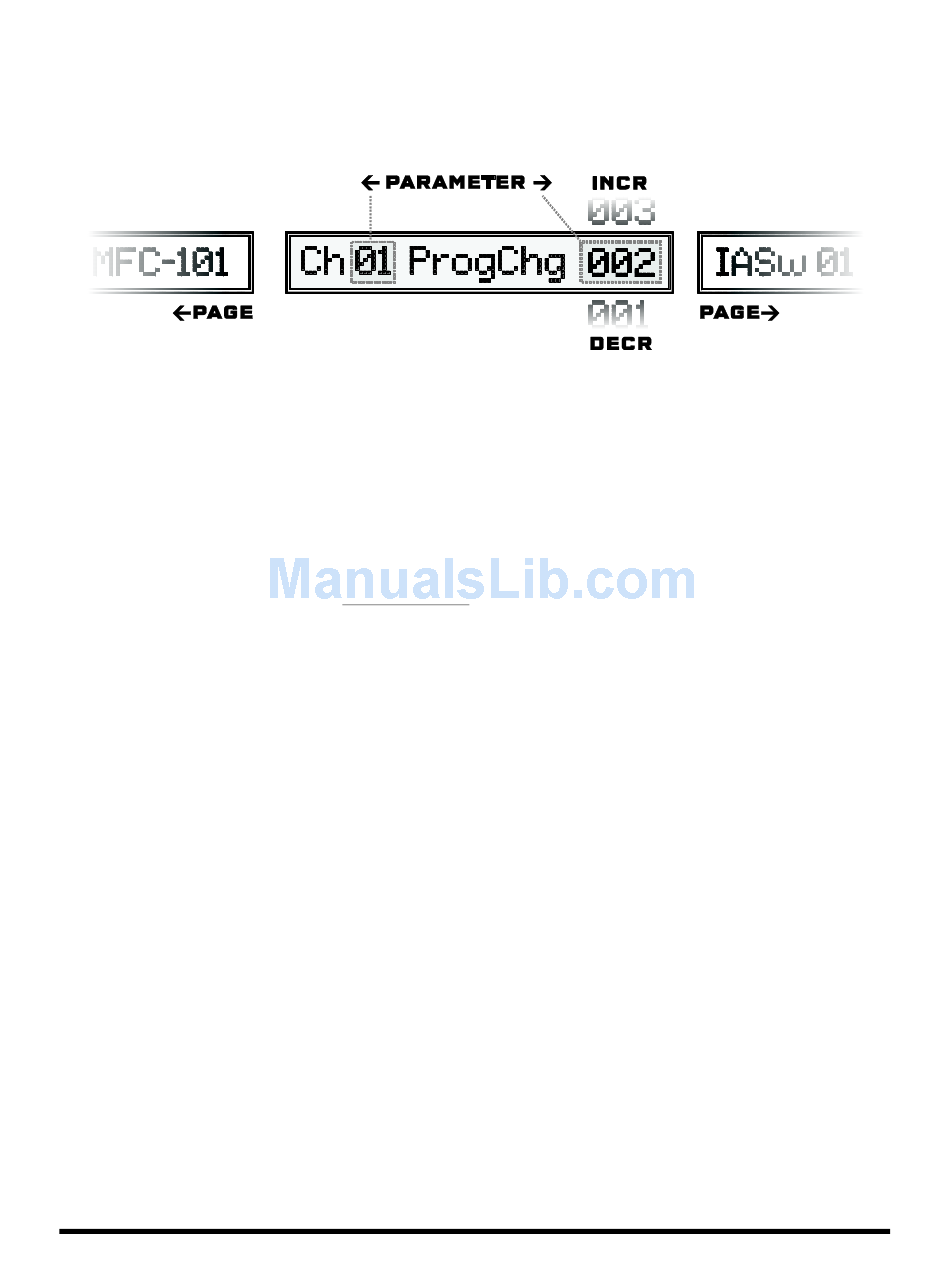

Figure 1-‐6: Navigating Edit mode
