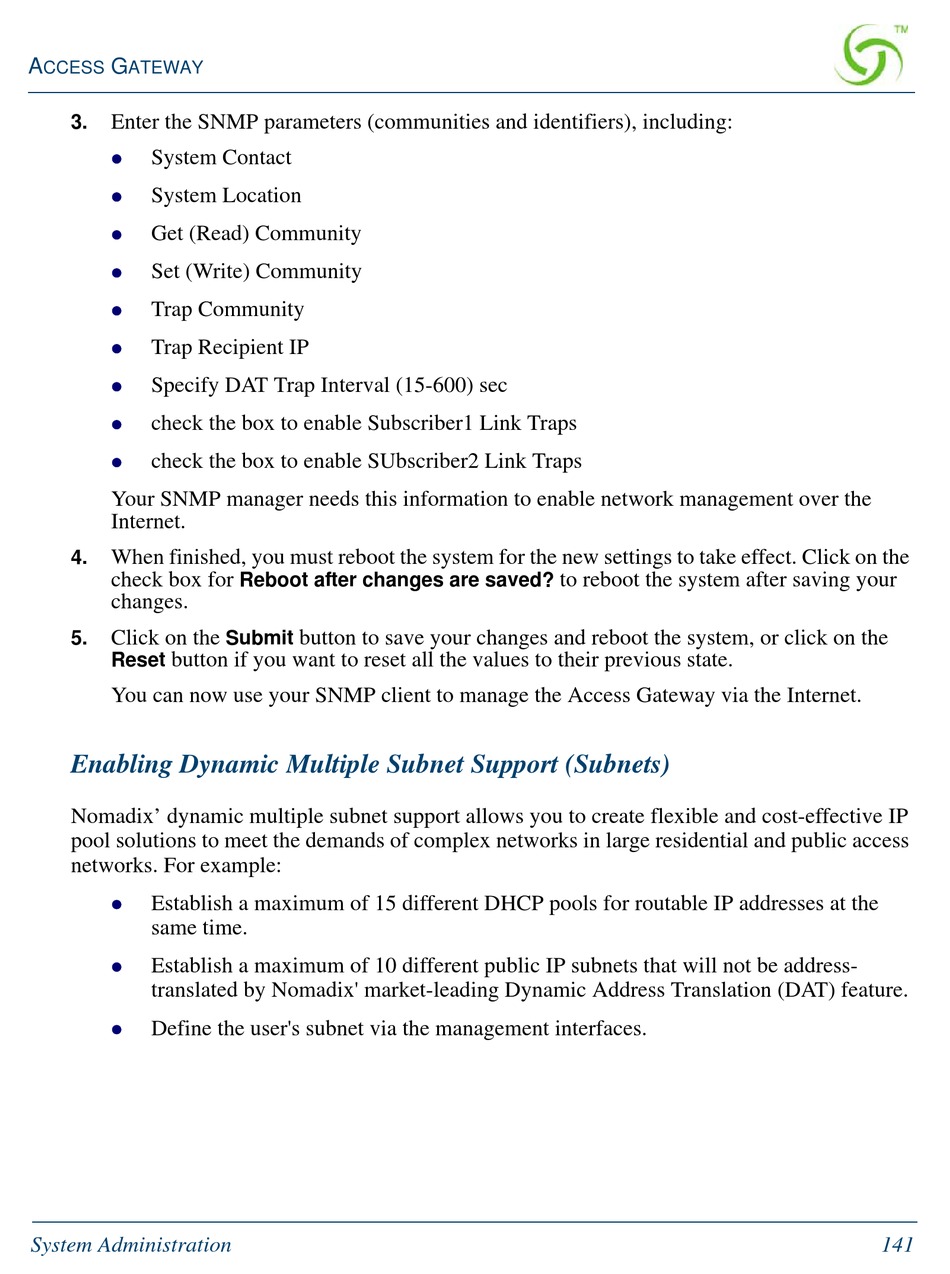

Enabling Dynamic Multiple Subnet Support (Subnets) - Nomadix Access Gateway User Manual

A G
CCESS ATEWAY
3. Enter the SNMP parameters (communities and identifiers), including:
System Contact

System Location

Get (Read) Community

Set (Write) Community

Trap Community

Trap Recipient IP

Specify DAT Trap Interval (15-600) sec

check the box to enable Subscriber1 Link Traps

check the box to enable SUbscriber2 Link Traps

Your SNMP manager needs this information to enable network management over the
Internet.
When finished, you must reboot the system for the new settings to take effect. Click on the
4.
check box for
changes.
Click on the
5.
button if you want to reset all the values to their previous state.
Reset
You can now use your SNMP client to manage the Access Gateway via the Internet.

Enabling Dynamic Multiple Subnet Support (Subnets)

Nomadix' dynamic multiple subnet support allows you to create flexible and cost-effective IP
pool solutions to meet the demands of complex networks in large residential and public access
networks. For example:
Establish a maximum of 15 different DHCP pools for routable IP addresses at the

same time.
Establish a maximum of 10 different public IP subnets that will not be address-

translated by Nomadix' market-leading Dynamic Address Translation (DAT) feature.
Define the user's subnet via the management interfaces.

System Administration
Reboot after changes are saved?
button to save your changes and reboot the system, or click on the
Submit
to reboot the system after saving your
141
