Note – Make sure that the SCSI connector clip is completely and
securely inserted. If it is loose, reinstall the SCSI connector clip. You may have
to install the clip to a lower position in the opening then raise the clip slightly
by lifting it and hooking the tabs to attach it to the unit and secure the clip.
6. Make sure that the SCSI cable is held in place by the two fingers on the
top of the disk drive assembly
See Figure 3-18.

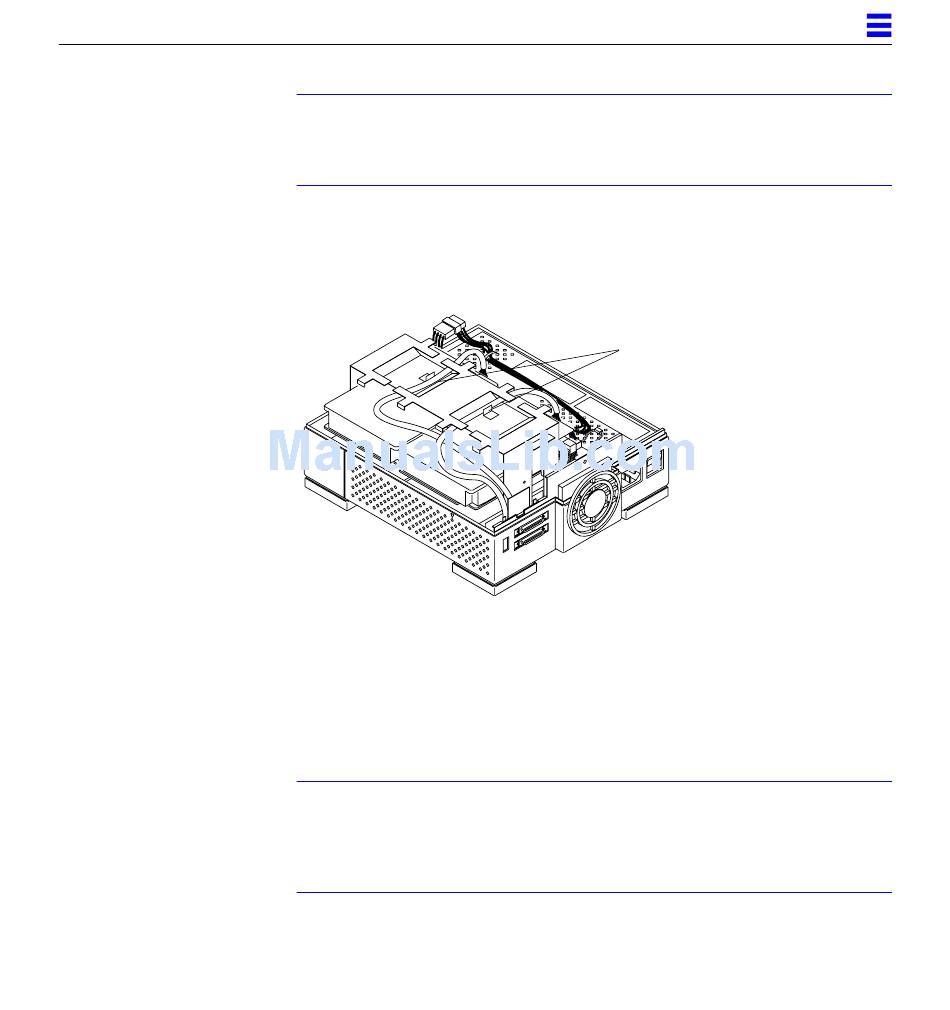

Figure 3-18 SCSI Cable Held in Place by Fingers on Disk Drive Assembly
7. Connect the power cable labeled P0 to the disk drive power connector.
See Figure 3-17.
8. Detach the wrist strap and replace the cover.
See "Replacing the Multi-Disk Pack Cover" on page 3-3.
Note – You must use a regulated SCSI terminator on the Multi-Disk Pack, or on
the last device in the daisy chain if there are multiple external devices. The
2.1 Gbyte disk drive is a fast SCSI device and requires the regulated SCSI
terminator. See Appendix B for descriptions of SCSI ports, types of
connections, SCSI termination, and cable length.
Multi-Disk Pack
Fingers securing
SCSI cable
