5. Attach the mounting plate to the bottom of the disk drive by aligning the
holes in the plate with the screw holes in the drive and installing four
screws.
See Figure 2-10.

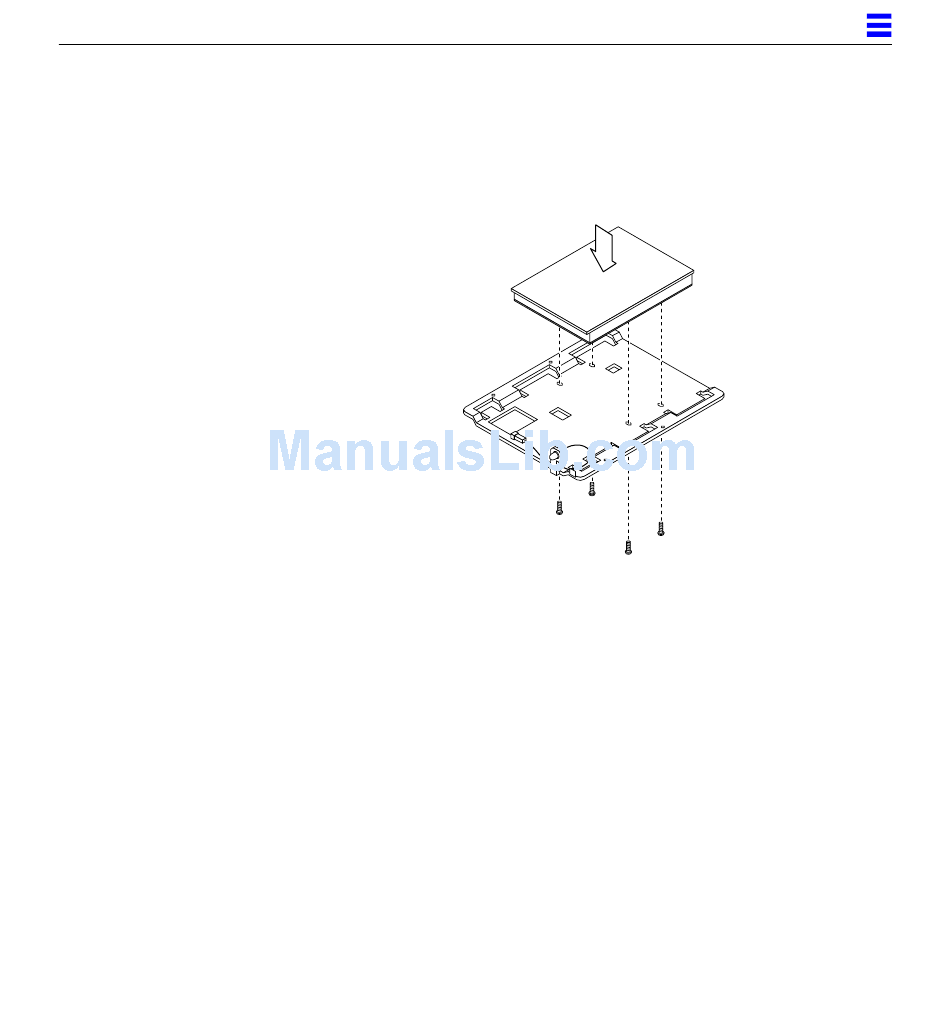

Figure 2-10 Attaching the Drive to the Mounting Plate
6. Slide the disk drive assembly partially into place.
See Figure 2-12.
7. Connect the SCSI cable and the power supply connector to the disk drive.
See Figure 2-12. The connectors are keyed so they will only fit one way.
Desktop Disk Pack
2
2-11
