3
Replacing a Disk Drive in the Disk Drive Assembly
3-12
1. Slide the drive into the assembly.
The PCB side of the disk drive will face down, and the SCSI data and power
connectors face the power supply.
2. Insert and tighten the screws securing the drive to the assembly.
See Figure 3-7 on page 3-6.
3. Connect the SCSI data cables to the SCSI data connectors of each drive.
See Figure 3-15 on the next page. The connectors are keyed. Make sure that
you connect the proper connector, labeled P2 through P4, to the proper SCSI
connector on the disk drive.
P2
P3

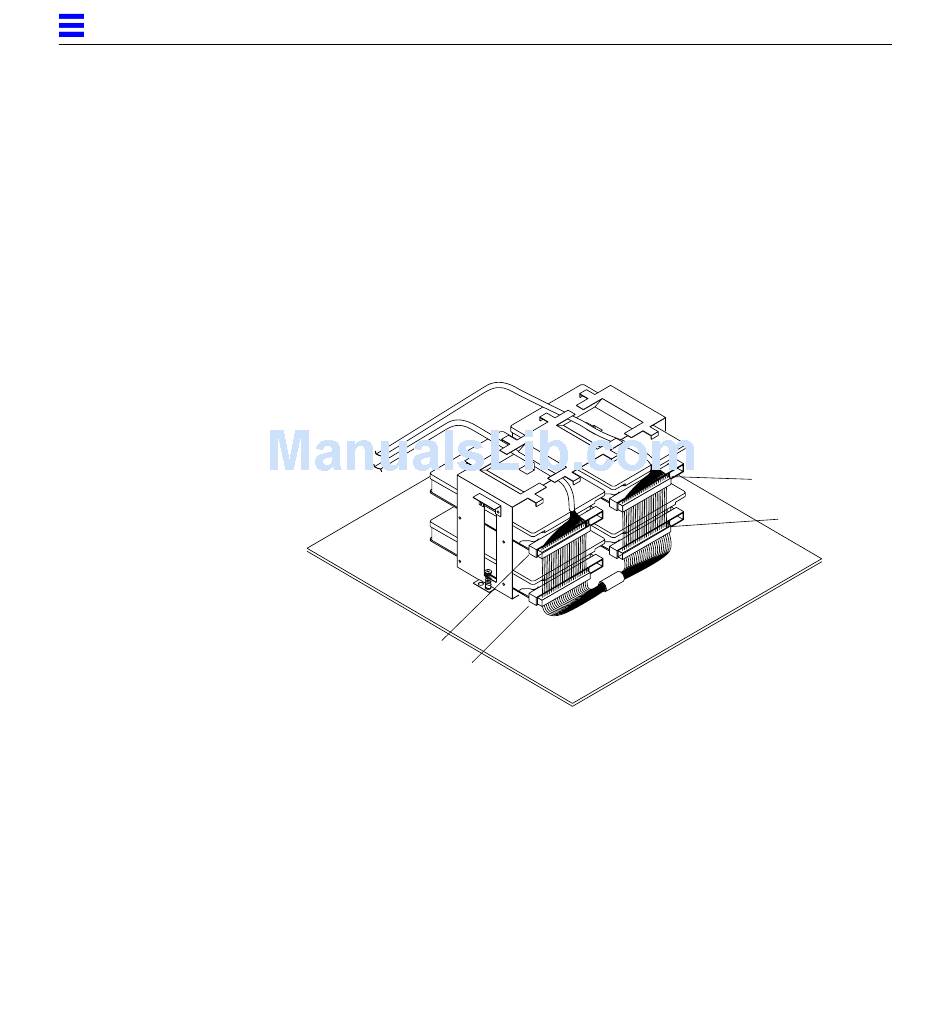

Figure 3-15 Connecting the SCSI Data Cables to the Disk Drives
4. Connect the power cable to the power connector of each disk drive.
See Figure 3-16.
5. Install the disk drive assembly into the Multi-Disk Pack unit.
2 Gbyte Standard Connector Disk Drive Installation Manual—May 1995
P5
P4
