Removing the Disk Drive from the Disk Drive Assembly
1. Disconnect the SCSI cable and power cable from each disk drive you are
replacing.

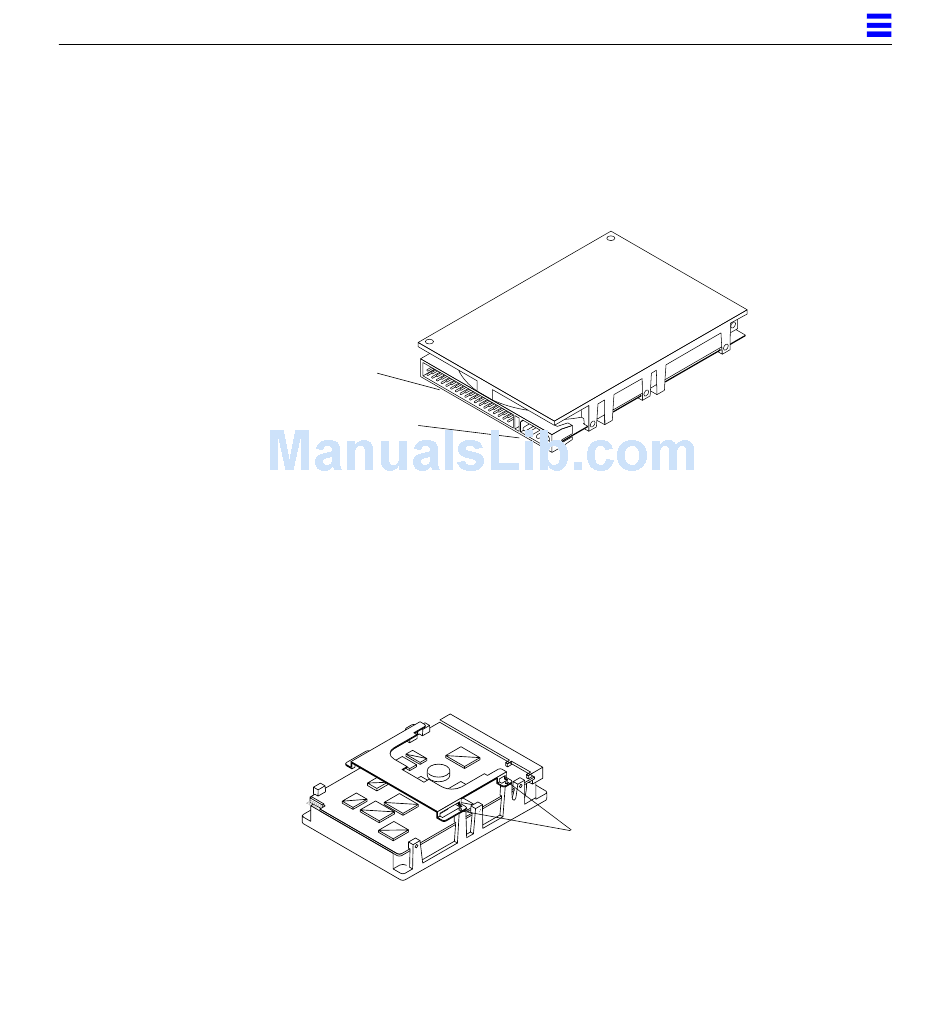

See Figure 3-8 for connector locations on the disk drive.
SCSI data
connector
Power cable
connector
Figure 3-8
Location of SCSI Data Cable and Power Cable Connectors on a Disk Drive
2. Remove the Phillips screws securing the disk drive to the assembly.
See Figure 3-7 on the previous page.
3. Carefully slide the drive out of the assembly.
4. Place the drive on an antistatic mat with the PCB side up.
5. Remove the screws securing the mounting plate to the disk drive.
See Figure 3-9.
Figure 3-9
Drive with Mounting Plate Attached
Multi-Disk Pack
Screws
3
3-7
