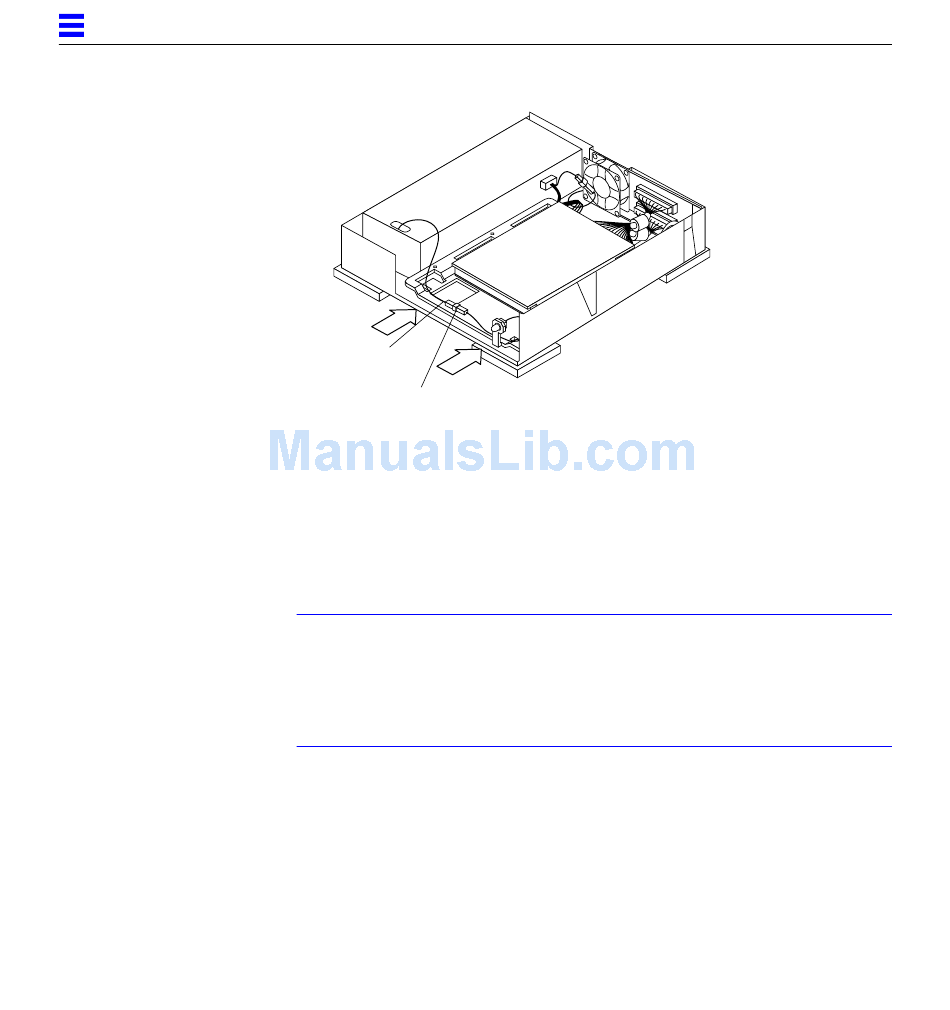

Figure 2-13 Connecting the Power Supply Connector to the LED
11. Connect the power supply connector to the LED cable on the mounting
plate.
See Figure 2-13.
12. Remove the wrist strap and replace the cover.
See "Replacing the DDP Cover" on page 2-4.
Note – You must use a regulated SCSI terminator on the DDP, or on the last
device in the daisy chain if there are multiple external devices. The 2.1 Gbyte
disk drive is a fast SCSI device and requires the regulated SCSI terminator.
See Appendix B for descriptions of SCSI ports, types of connections, SCSI
termination, and cable length.
2 Gbyte Standard Connector Disk Drive Installation Manual—May 1995
