Removing the Disk Drive Assembly

1. Disconnect the power supply power cable connector from its mating disk
drive power connector.
Grasp connector firmly in one hand, and with the other hand pull the power
cable connector from its mating connector. See Figure 3-5.
2. Lift up on the metal handle of the SCSI connector clip and remove it from
the SCSI port area.
See Figure 3-5.
Power cable
connector

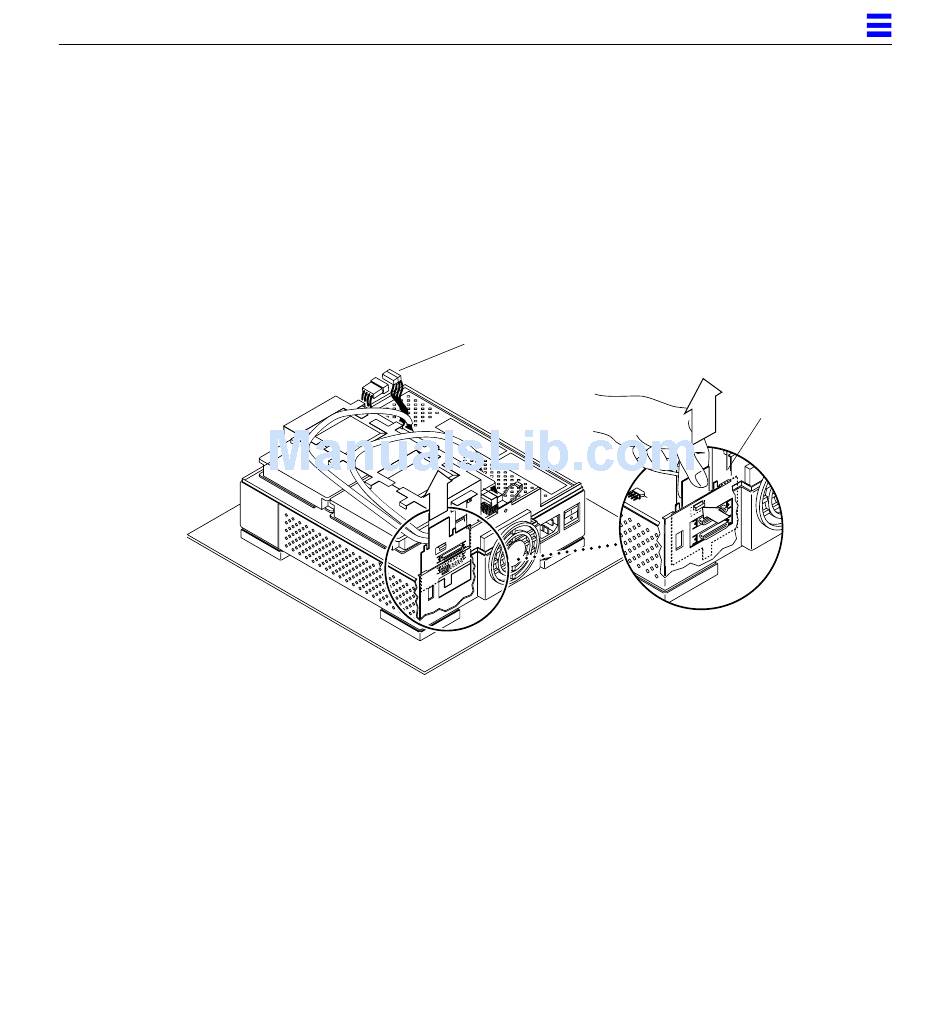

Figure 3-5 Removing the SCSI Connector Clip and Disconnecting the Power
Connector
3. Loosen the two captive Phillips screws on the bottom of the unit.
See Figure 3-6.
4. Lift the drive assembly up. Place the assembly on an antistatic mat.
See Figure 3-6 and Figure 3-7.
Multi-Disk Pack
3
SCSI
connector
clip
3-5
