Setting Jumpers and Preparing the Disk Drive for Installation
SCSI target address:
3-8
You can configure your drive with seven possible SCSI target address jumper
settings:
•
See Figure 3-10 for the available SCSI target address jumper settings on an
IBM drive.
•
See Figure 3-11 for the available SCSI target address jumper settings on a
Seagate drive.
The SCSI target address jumper settings on the replacement drives are factory
set to SCSI address 3.
0
1
2
A0 A1 A2
A0 A1 A2
A0 A1 A2
A0 A1 A2

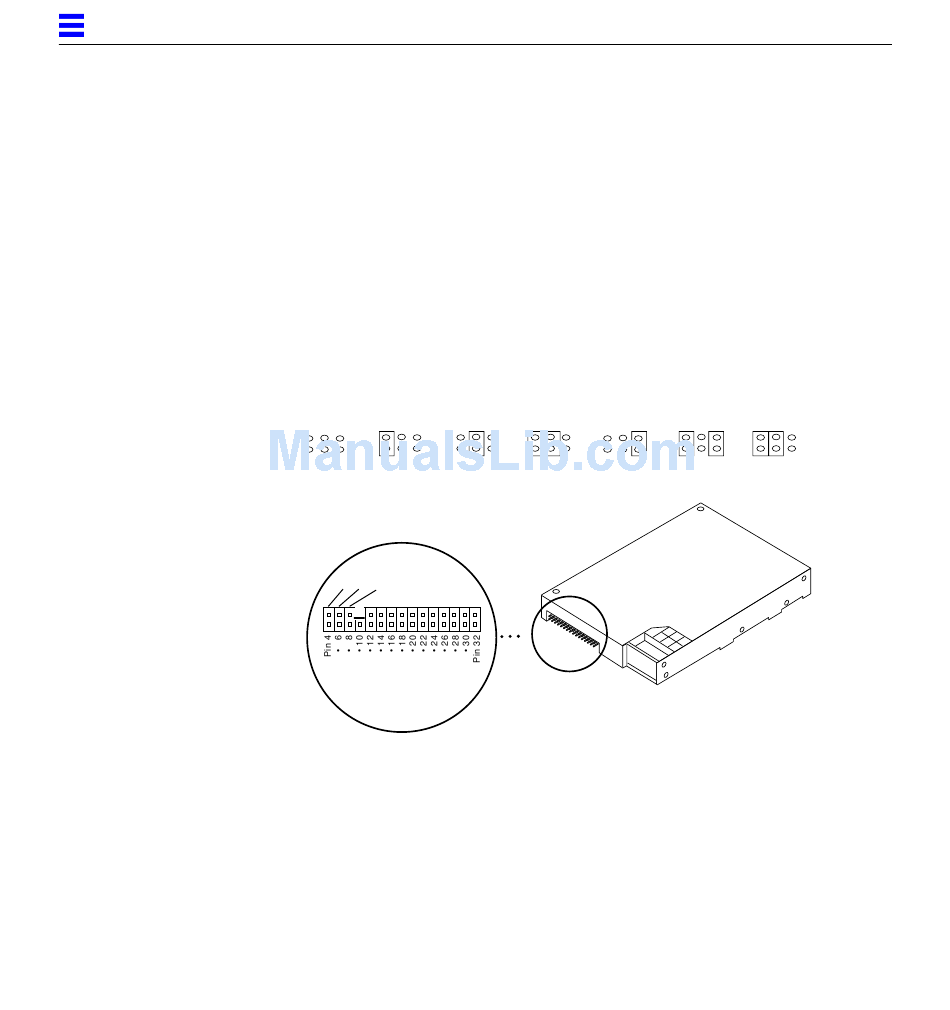

Figure 3-10 Available SCSI Target Address Jumper Settings—IBM Drive
2 Gbyte Standard Connector Disk Drive Installation Manual—May 1995
3
4
5
A0 A1 A2
A0 A1 A2
A0 A1 A2
6
A0 A1 A2
