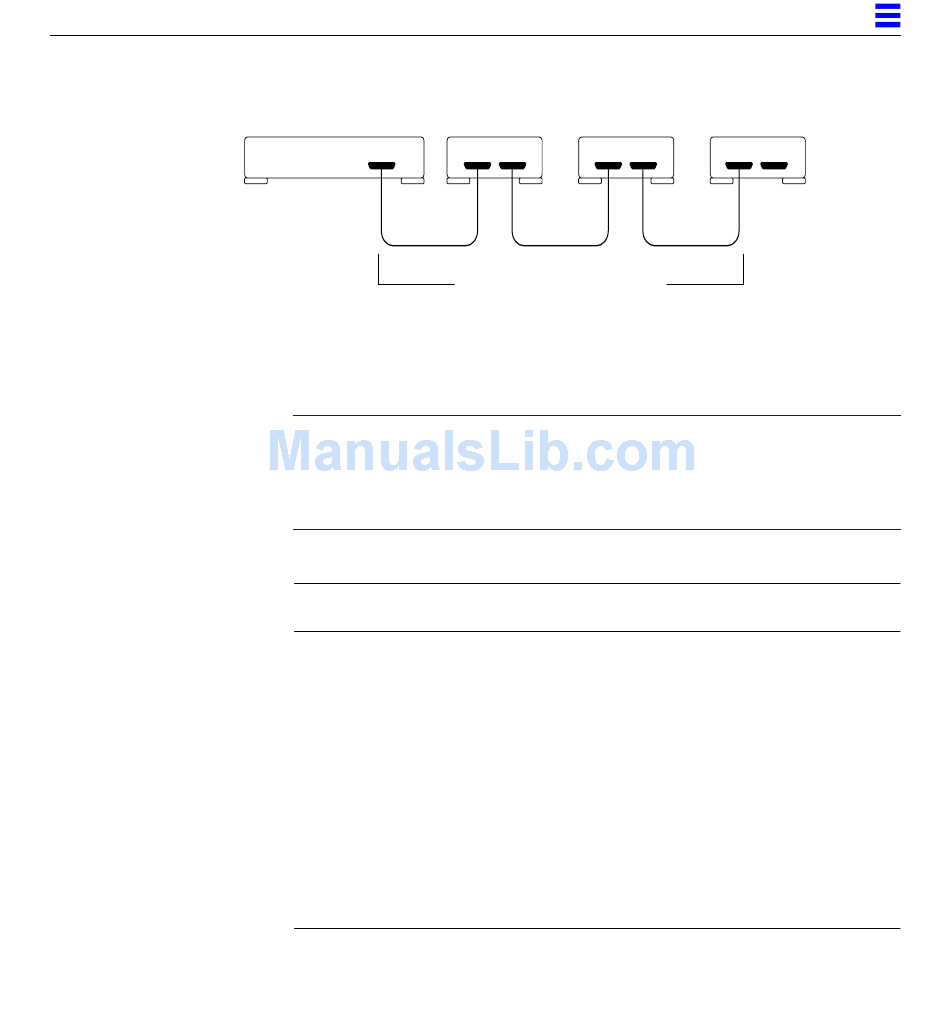

Figure B-1 Maximum SCSI Bus Length
Table B-1 lists the internal and external cable lengths for the DDP and most of
the supported desktop systems and servers.
Note – When connecting the DDP to your system, find the total SCSI bus
length for your configuration. To do this, add the length of the internal bus
lengths of each device of the system to the length of the external SCSI cable,
which can measure either 0.8, 2, or 4 meters in length. The total length must be
less than 20 feet (6 meters).
Table B-1 SCSI Internal Cable (Bus) Lengths
Devices and Cables
Desktop Disk Pack (tape, disk, CD-
ROM)
Desktop Storage Module (disk unit)
Desktop Storage Module (tape unit)
Multi-Disk Pack
SPARCstation 2 and IPX
SPARCstation 10, LX, SPARCclassic
SPARCstation ELC
SBus cards (SBE/S, FSBE/S, SBus SCSI
Host Adaptor)
SBus Expansion Subsystem
Small Computer Systems Interface Information
SCSI peripheral
SCSI peripheral
max. 6 meters
SCSI CABLE LENGTH
Meters
0.3
0.3
0.4
1.0
0.5
0.9
0.2
0.1
0.9
B
SCSI peripheral
SCSI peripheral
Inches
11.8
11.9
15.7
39.3
19.7
35.4
7.8
3.9
35.4
