Replacing the Disk Drive Assembly

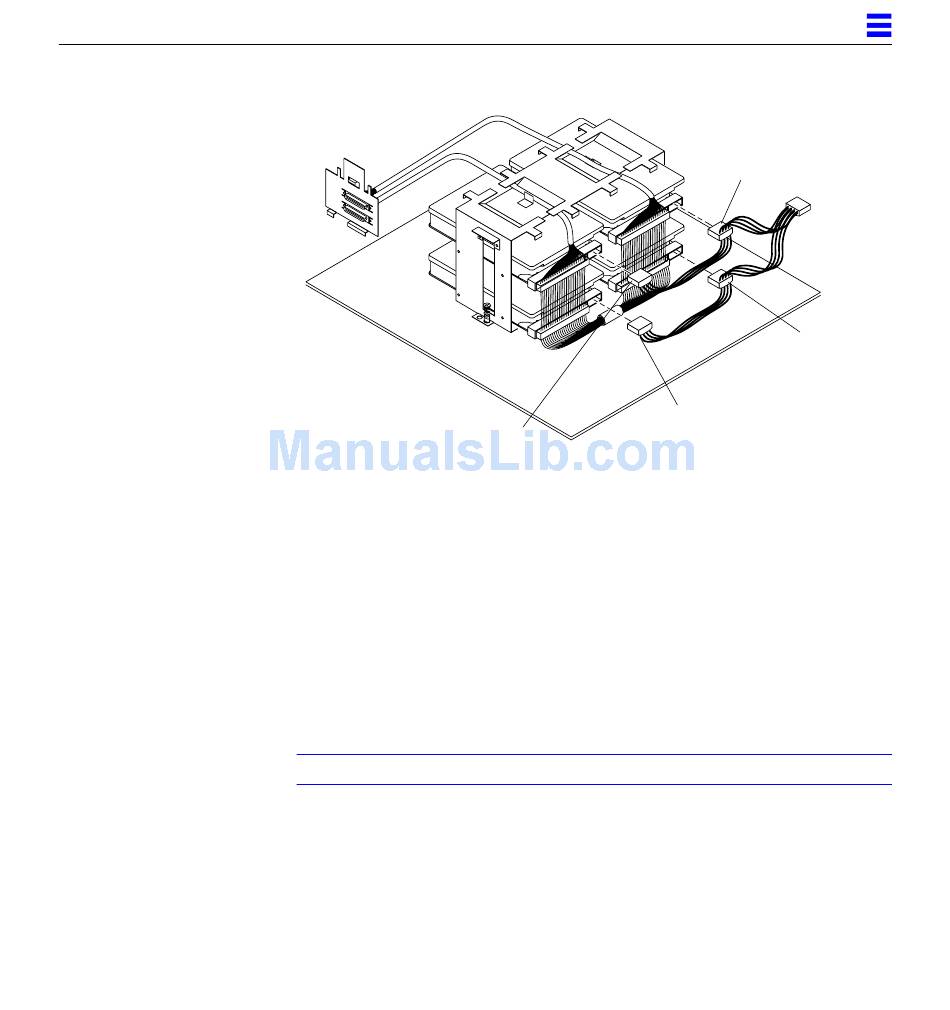

Figure 3-16 Connecting the Power Cables to the Disk Drives
1. Move the power supply cable leading from the I/O bracket/fan out of
the unit.
2. Lower the drive assembly. Rock it back and forth to make sure the drive
assembly sits properly.
3. Tighten the two captive screws on the bottom of the assembly.
You may have to shift the drive assembly back and forth until the holes are
aligned with the captive screws. See Figure 3-17.
Note – Do not use a power screwdriver on a captive screw.
Multi-Disk Pack
P4
P2
3
P1
P3
3-13
