Modem will be listed on DrayTek web site. Please visit www.draytek.com for more detailed
information.

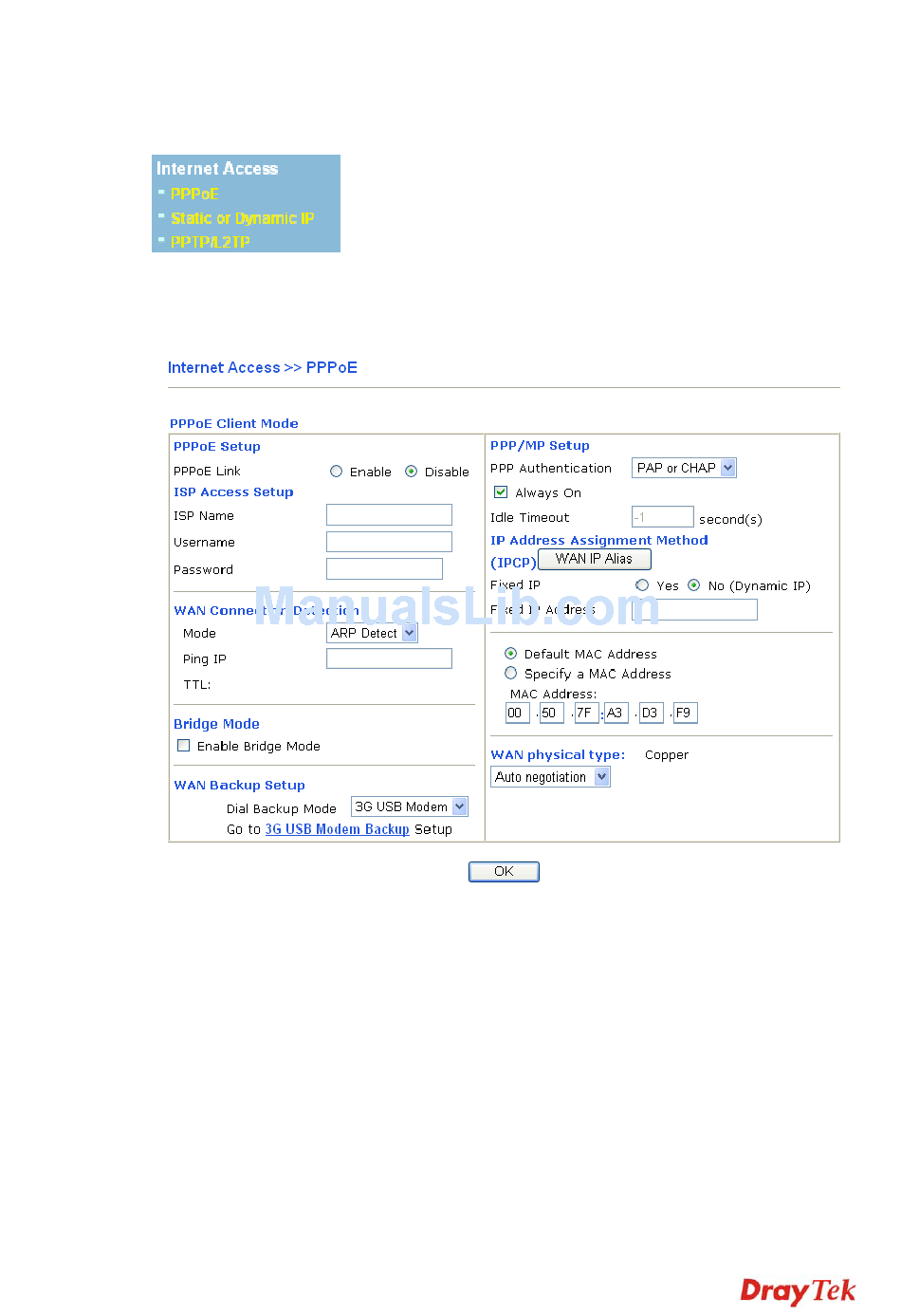

Below shows the menu items for Internet Access.
3 . 1 . 2 P P P o E
3 . 1 . 2 P P P o E
To choose PPPoE as the accessing protocol of the internet, please select PPPoE from the
Internet Access menu. The following web page will be shown.
Enable/Disable
ISP Access Setup
WAN Connection
Detection
Vigor2110 Series User's Guide
Click Enable for activating this function. If you click Disable, this
function will be closed and all the settings that you adjusted in this
page will be invalid.
Enter your allocated username, password and authentication
parameters according to the information provided by your ISP.
Username – Type in the username provided by ISP in this field.
Password – Type in the password provided by ISP in this field.
Index (1-15) in Schedule Setup - You can type in four sets of time
schedule for your request. All the schedules can be set previously in
Application >>Schedule web page and you can use the number that
you have set in that web page.
Such function allows you to verify whether network connection is
alive or not through ARP Detect or Ping Detect.
Mode – Choose ARP Detect or Ping Detect for the system to
execute for WAN detection.
