4 . 9 . 6 L A N t o L A N
4 . 9 . 6 L A N t o L A N
Here you can manage LAN-to-LAN connections by maintaining a table of connection profiles.
You may set parameters including specified connection direction (dial-in or dial-out),
connection peer ID, connection type (VPN connection - including PPTP, IPSec Tunnel, and
L2TP by itself or over IPSec) and corresponding security methods, etc.

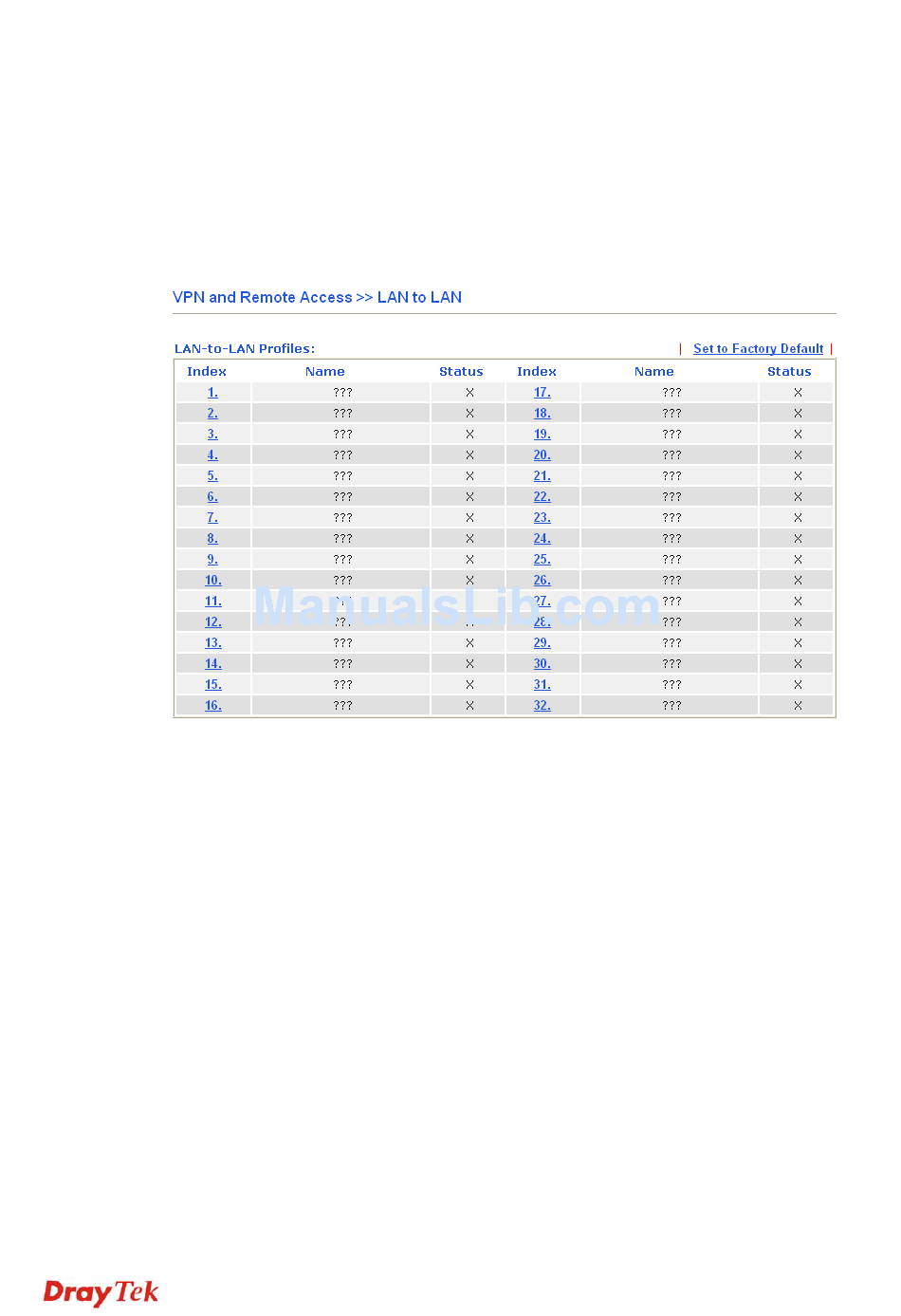

The router supports 2 VPN tunnels simultaneously and provides up to 32 profiles. The
following figure shows the summary table.
Set to Factory Default
Name
Status
Click each index to edit each profile and you will get the following page. Each LAN-to-LAN
profile includes 4 subgroups. If the fields gray out, it means you may leave it untouched. The
following explanations will guide you to fill all the necessary fields.
For the web page is too long, we divide the page into several sections for explanation.
Click to clear all indexes.
Indicate the name of the LAN-to-LAN profile. The
symbol ??? represents that the profile is empty.
Indicate the status of individual profiles. The symbol
V and X represent the profile to be active and
inactive, respectively.
192
Vigor2110 Series User's Guide
