4 . 4 . 3 F i l t e r S e t u p
4 . 4 . 3 F i l t e r S e t u p

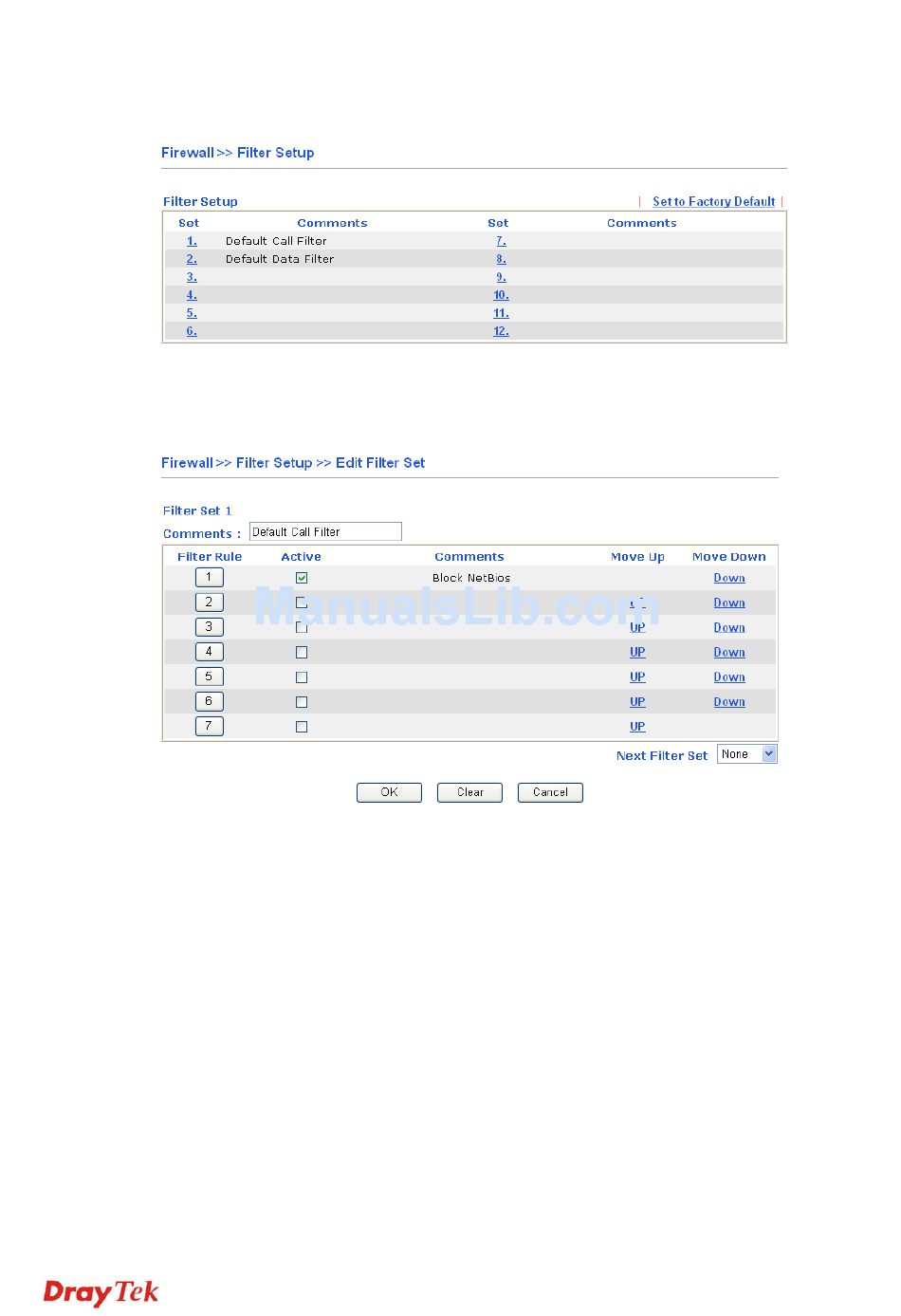

Click Firewall and click Filter Setup to open the setup page.
To edit or add a filter, click on the set number to edit the individual set. The following page
will be shown. Each filter set contains up to 7 rules. Click on the rule number button to edit
each rule. Check Active to enable the rule.
Filter Rule
Active
Comment
Move Up/Down
Next Filter Set
Click a button numbered (1 ~ 7) to edit the filter rule. Click the
button will open Edit Filter Rule web page. For the detailed
information, refer to the following page.
Enable or disable the filter rule.
Enter filter set comments/description. Maximum length is
23–character long.
Use Up or Down link to move the order of the filter rules.
Set the link to the next filter set to be executed after the current
filter run. Do not make a loop with many filter sets.
132
Vigor2110 Series User's Guide
