PPP Setup
IP Address
Assignment
Method(IPCP)

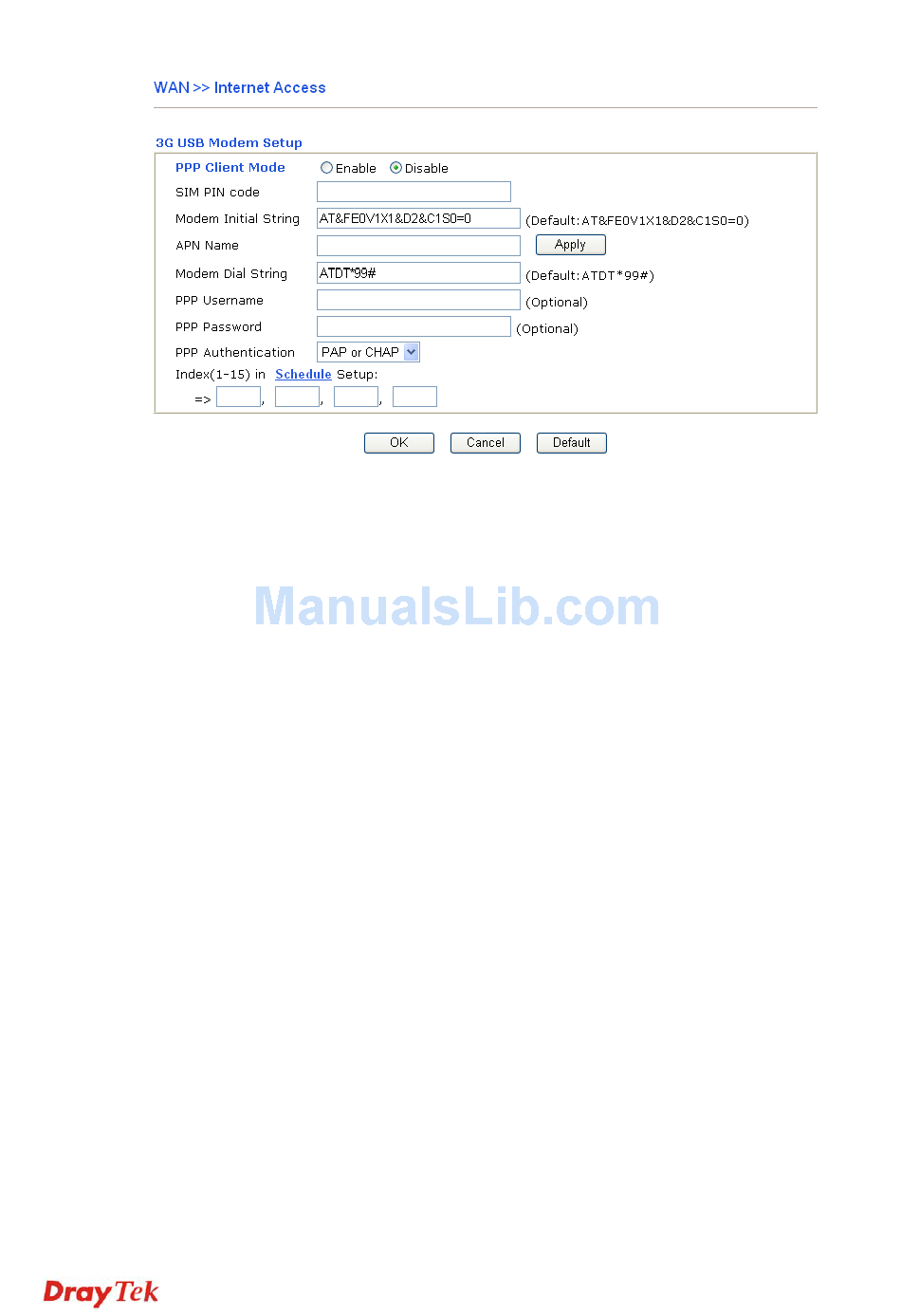

PPP Client Mode - Click Enable to activate this mode for WAN2.
SIM PIN code - Type PIN code of the SIM card that will be used to
access Internet.
Modem Initial String - Such value is used to initialize USB modem.
Please use the default value. If you have any question, please contact
to your ISP.
APN Name - APN(Access Point Name) is provided by your ISP for
identifying different access points. Simply click Apply to apply such
name. Finally, you have to click OK to save the setting.
Apply – Activate the function of identification.
Modem Dial String - Such value is used to dial through USB mode.
Please use the default value. If you have any question, please contact
to your ISP.
PPP Username - Type the PPP username (optional).
PPP Password - Type the PPP password (optional).
PPP Authentication – Select PAP only or PAP or CHAP for PPP.
Index (1-15) in Schedule Setup - You can type in four sets of time
schedule for your request. All the schedules can be set previously in
Application >> Schedule web page and you can use the number
that you have set in that web page.
PPP Authentication - Select PAP only or PAP or CHAP for PPP.
Idle Timeout - Set the timeout for breaking down the Internet after
passing through the time without any action.
Fixed IP - Usually ISP dynamically assigns IP address to you each
time you connect to it and request. In some case, your ISP provides
service to always assign you the same IP address whenever you
request. In this case, you can fill in this IP address in the Fixed IP
field. Please contact your ISP before you want to use this function.
Click Yes to use this function and type in a fixed IP address in the
box.
