WPA
WEP
3 . 6 . 4 A c c e s s
3 . 6 . 4 A c c e s s

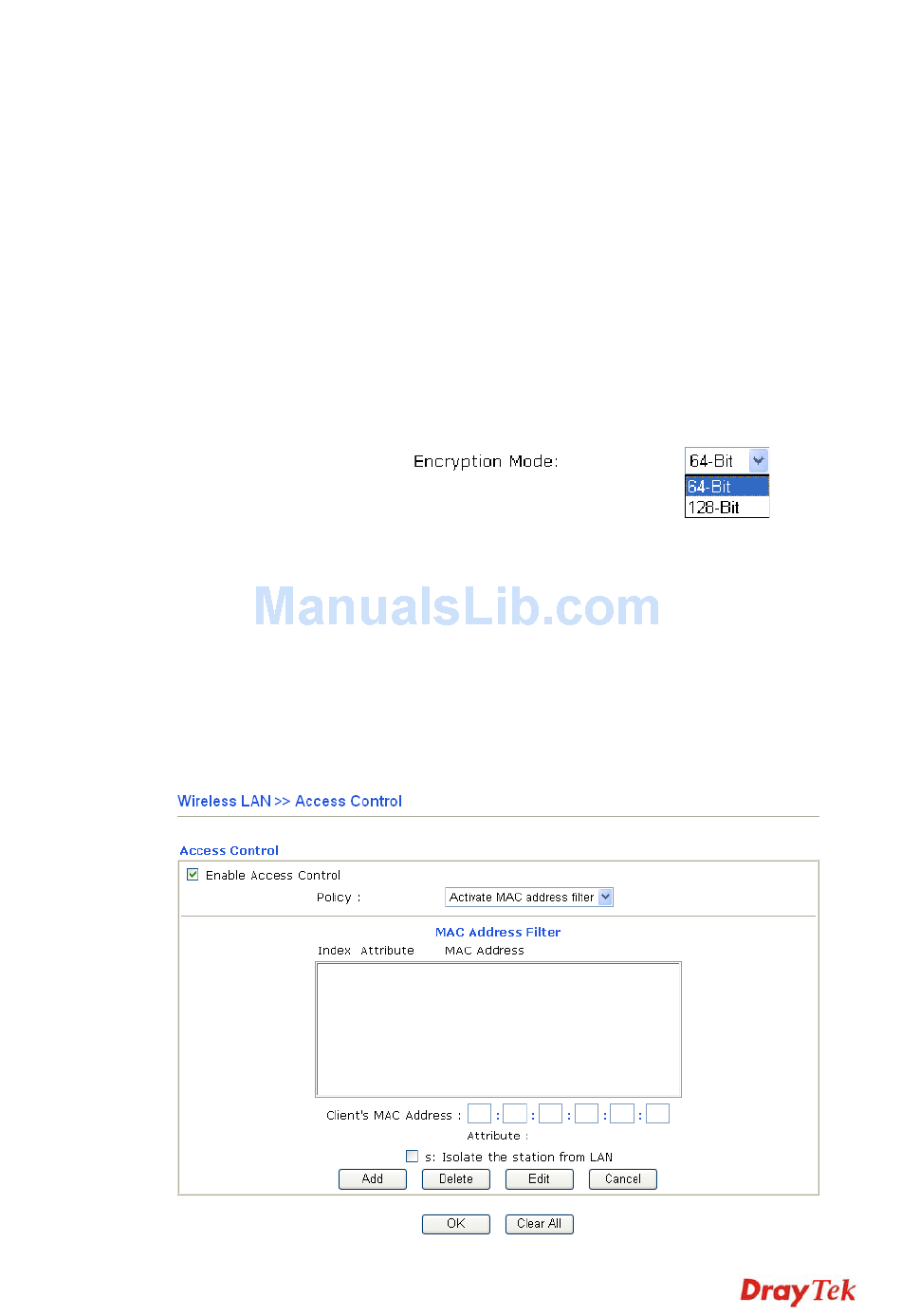

For additional security of wireless access, the Access Control facility allows you to restrict
the network access right by controlling the wireless LAN MAC address of client. Only the
valid MAC address that has been configured can access the wireless LAN interface. By
clicking the Access Control, a new web page will appear, as depicted below, so that you
could edit the clients' MAC addresses to control their access rights.
Vigor2110 Series User's Guide
C o n t r o l
C o n t r o l
The WPA encrypts each frame transmitted from the radio
using the key, which either PSK (Pre-Shared Key) entered
manually in this field below or automatically negotiated
via 802.1x authentication. Either 8~63 ASCII characters,
such as 012345678(or 64 Hexadecimal digits leading by 0x,
such as "0x321253abcde...").
Type - Select from Mixed (WPA+WPA2) or WPA2 only.
Pre-Shared Key (PSK) - Either 8~63 ASCII characters,
such as 012345678..(or 64 Hexadecimal digits leading by
0x, such as "0x321253abcde...").
64-Bit - For 64 bits WEP key, either 5 ASCII characters,
such as 12345 (or 10 hexadecimal digitals leading by 0x,
such as 0x4142434445.)
128-Bit - For 128 bits WEP key, either 13 ASCII
characters, such as ABCDEFGHIJKLM (or 26
hexadecimal digits leading by 0x, such as
0x4142434445464748494A4B4C4D).
All wireless devices must support the same WEP
encryption bit size and have the same key. Four keys can
be entered here, but only one key can be selected at a time.
The keys can be entered in ASCII or Hexadecimal. Check
the key you wish to use.
