Edit
Delete
Administration Message
Index (1-15) in Schedule
Setup
4 . 7 . 2 B a n d w i d
4 . 7 . 2 B a n d w i d
The downstream or upstream from FTP, HTTP or some P2P applications will occupy large of
bandwidth and affect the applications for other programs. Please use Limit Bandwidth to make
the bandwidth usage more efficient.

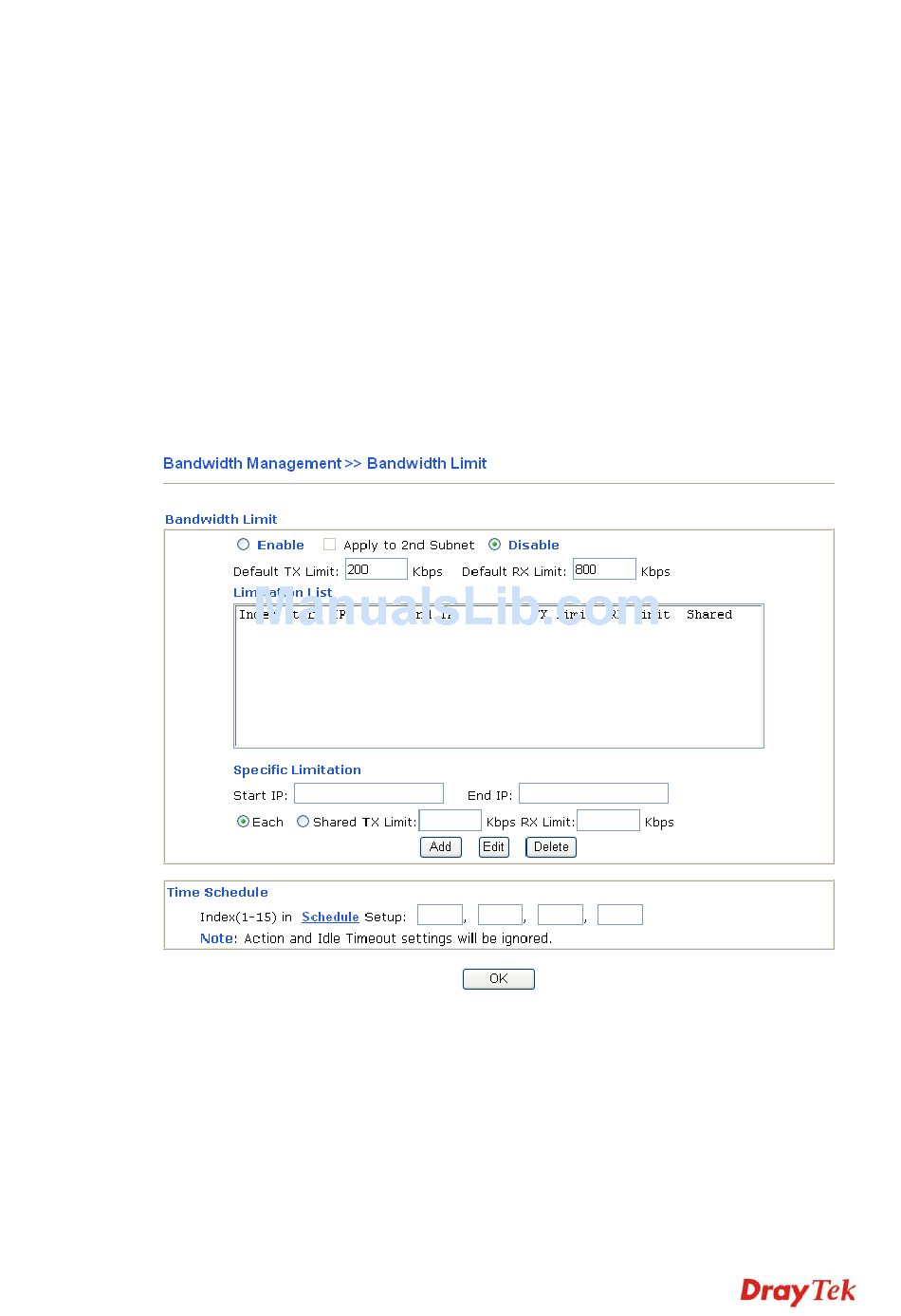

In the Bandwidth Management menu, click Bandwidth Limit to open the web page.
To activate the function of limit bandwidth, simply click Enable and set the default upstream
and downstream limit.
Enable
Disable
Default TX limit
Vigor2110 Series User's Guide
Allows you to edit the settings for the selected limitation.
Remove the selected settings existing on the limitation list.
Type the words which will be displayed when reaches the
maximum number of Internet sessions permitted.
You can type in four sets of time schedule for your request.
All the schedules can be set previously in Application >>
Schedule web page and you can use the number that you
have set in that web page.
t h L i m i t
t h L i m i t
Click this button to activate the function of limit bandwidth.
Apply to 2
bandwidth limit to the second subnet specified in
LAN>>General Setup.
Click this button to close the function of limit bandwidth.
Define the default speed of the upstream for each computer in
LAN.
nd Subnet – Check this box to apply the
165
