4 . 1 5 . 4 D H C P T a b
4 . 1 5 . 4 D H C P T a b
The facility provides information on IP address assignments. This information is helpful in
diagnosing network problems, such as IP address conflicts, etc.

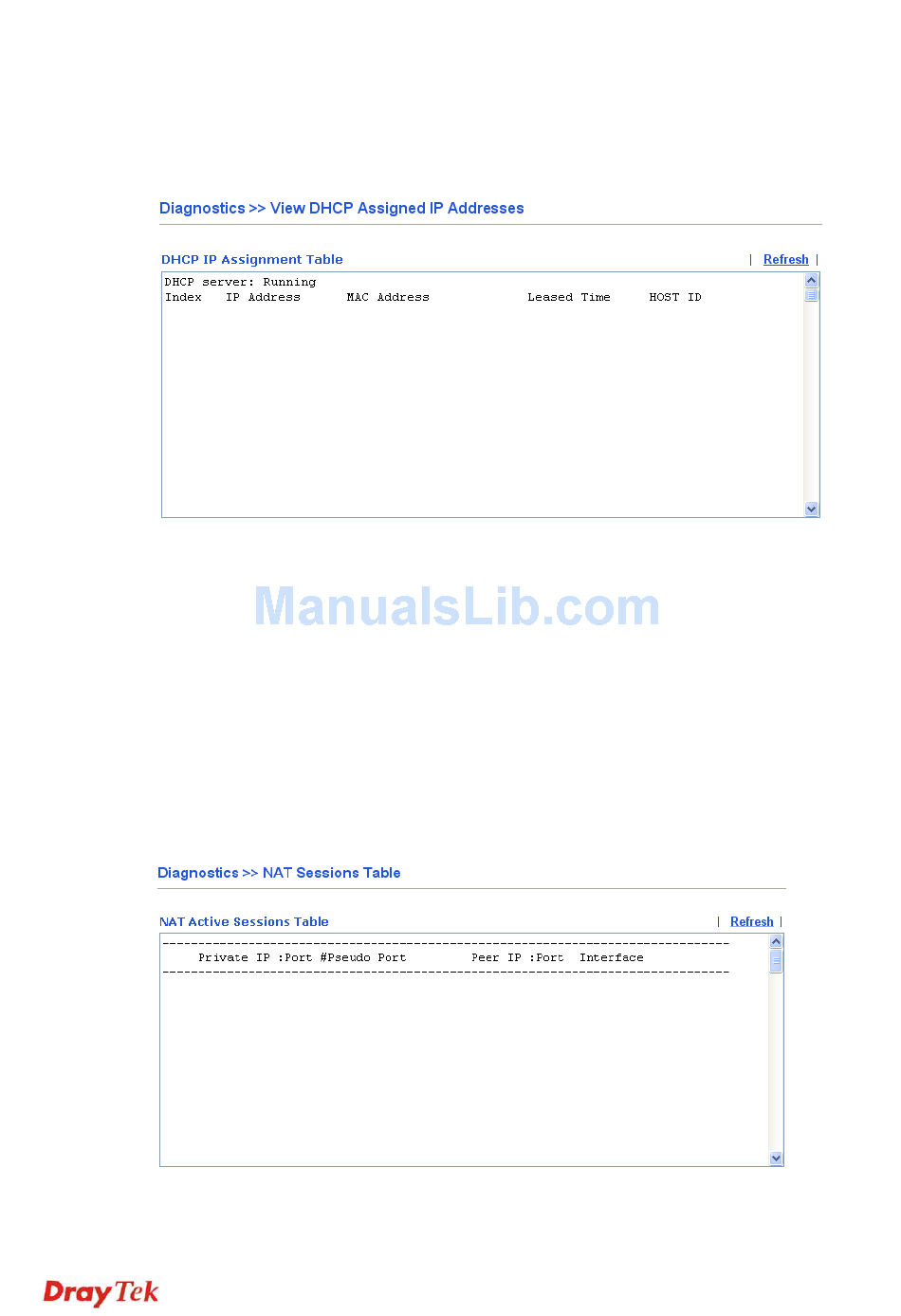

Click Diagnostics and click DHCP Table to open the web page.
Index
IP Address
MAC Address
Leased Time
HOST ID
Refresh
4 . 1 5 . 5 N A T S e s s i
4 . 1 5 . 5 N A T S e s s i
Click Diagnostics and click NAT Sessions Table to open the list page.
Private IP:Port
l e
l e
It displays the connection item number.
It displays the IP address assigned by this router for specified
PC.
It displays the MAC address for the specified PC that DHCP
assigned IP address for it.
It displays the leased time of the specified PC.
It displays the host ID name of the specified PC.
Click it to reload the page.
o n s T a b l e
o n s T a b l e
It indicates the source IP address and port of local PC.
264
Vigor2110 Series User's Guide
