3 . 5 . 2 S I P A c c o u n
3 . 5 . 2 S I P A c c o u n

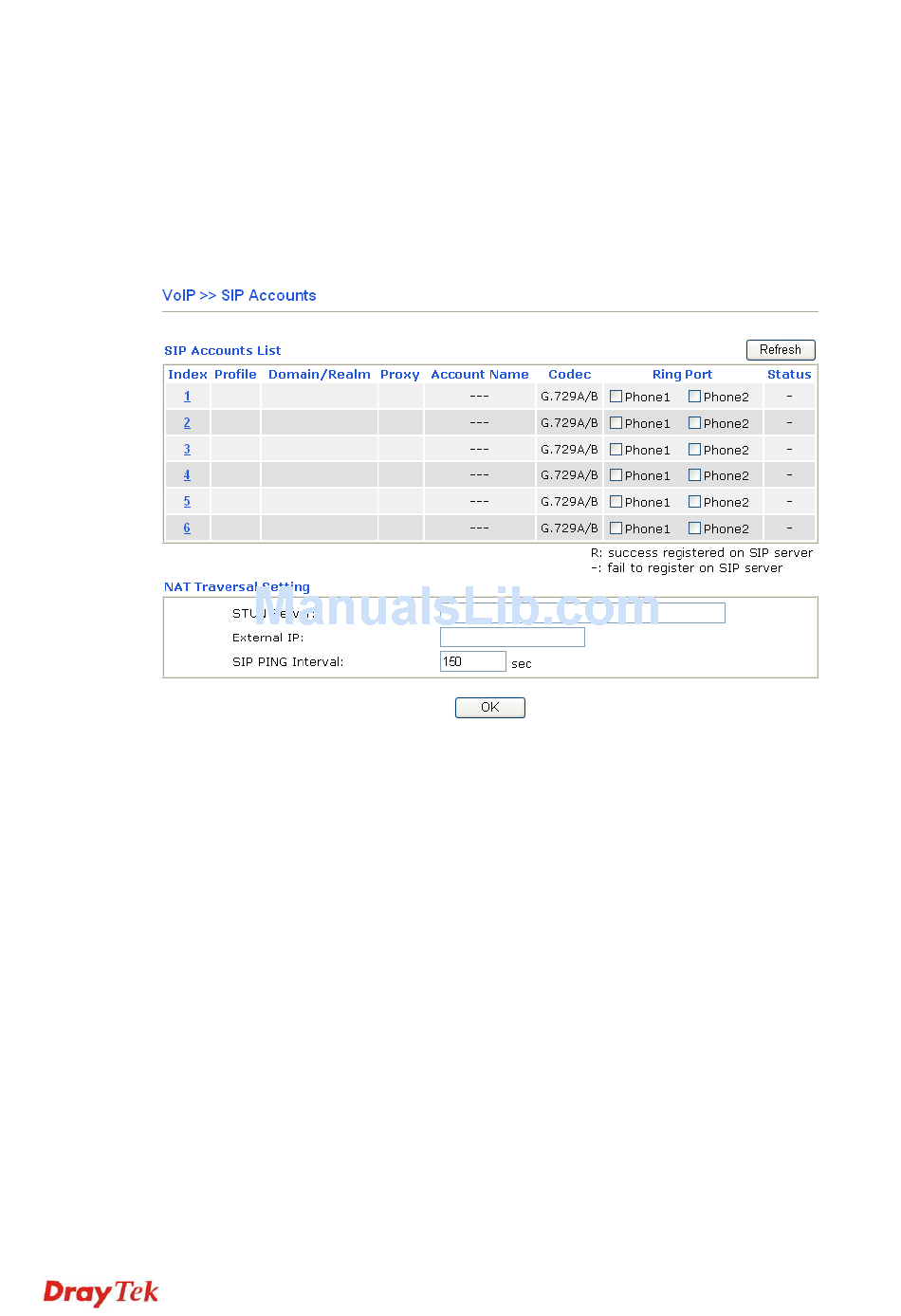

In this section, you set up your own SIP settings. When you apply for an account, your SIP
service provider will give you an Account Name or user name, SIP Registrar, Proxy, and
Domain name. (The last three might be the same in some case). Then you can tell your folks
your SIP Address as in Account Name@ Domain name
As Vigor VoIP Router is turned on, it will first register with Registrar using
AuthorizationUser@Domain/Realm. After that, your call will be bypassed by SIP Proxy to the
destination using AccountName@Domain/Realm as identity.
Index
Profile
Domain/Realm
Proxy
Account Name
Codec
Ring Port
Status
STUN Server
External IP
SIP PING interval
t s
t s
Click this link to access into next page for setting SIP account.
Display the profile name of the account.
Display the domain name or IP address of the SIP registrar
server.
Display the domain name or IP address of the SIP proxy server.
Display the account name of SIP address before @.
Display the codec used by such account.
Specify which port will ring when receiving a phone call.
Show the status for the corresponding SIP account. R means
such account is registered on SIP server successfully. – means
the account is failed to register on SIP server.
Type in the IP address or domain of the STUN server.
Type in the gateway IP address.
The default value is 150 (sec). It is useful for a Nortel server
NAT Traversal Support.
