A. Antenna/ Audio Line-out (option)
B. USB 2.0 x 2
C. Gigabit LAN x 2
D. COM port
2.2 Installation Procedures
2.2.1 Connecting the power cord
The UTC-515 can be powered by a DC electrical outlet. Be sure to always handle the
power cords by holding the plug ends only. Please follow the Figure 2.5 to connect
the male plug of the power cord to the DC inlet of the UTC-515.
2.2.2 Connecting the keyboard or mouse
Before you start the computer, please connect keyboard port on the I/O section of the
UTC-515.
2.2.3 Switching on the power
When you look at the rear side of the UTC-515, you will see the power switch as
shown in Figure 2.2.
B
C
H
Power cord
AC/DC Power adapter

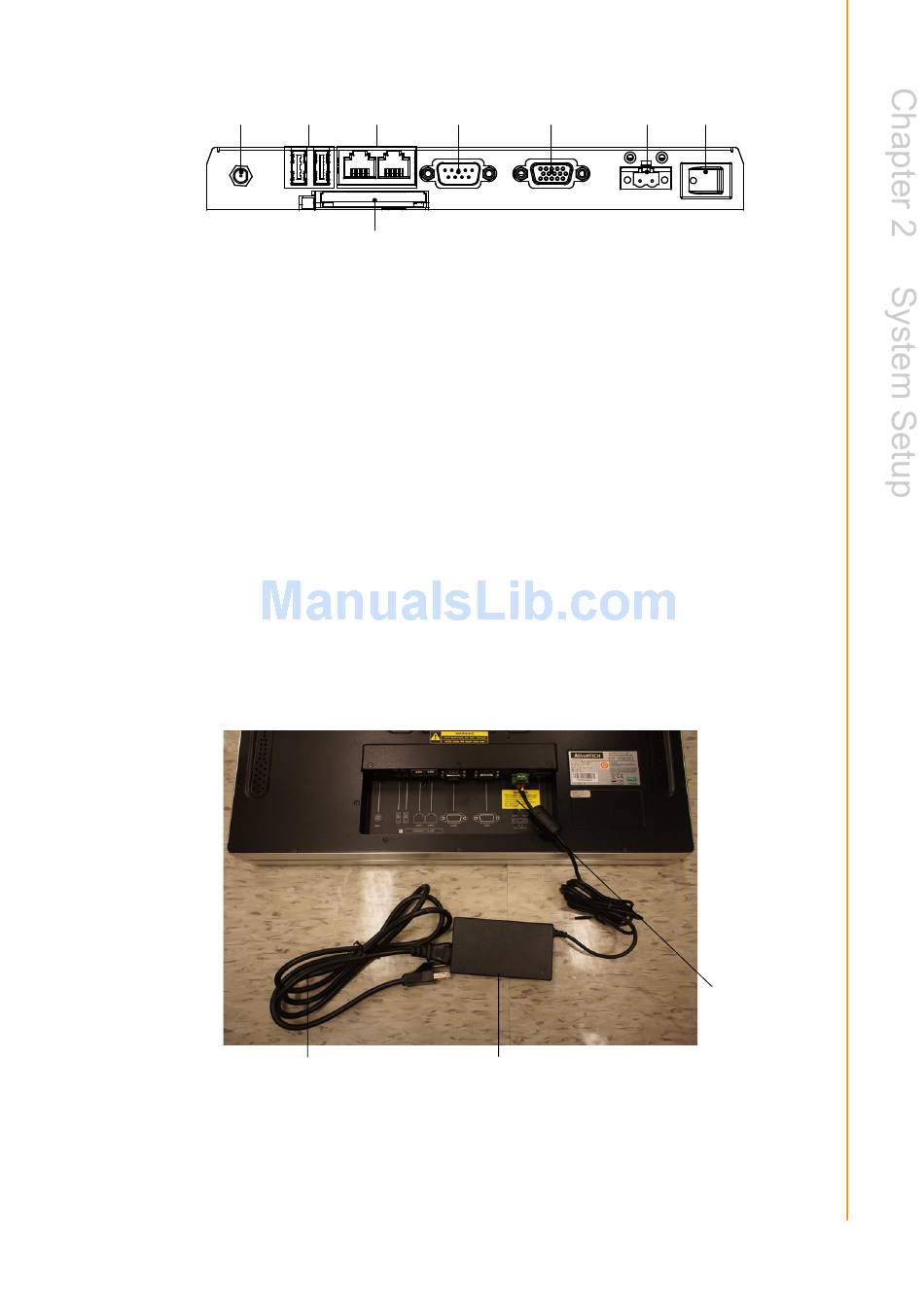

Figure 2.3 Connect the power cord to the DC inlet
D
E
E. VGA
F. DC Inlet
G. Power Switch
H. Compact Flash slot
9
F
G
DC inlet
