Installation Procedures; Connecting The Power Cord (Dc Model) - Advantech POC-624-02 Series User Manual

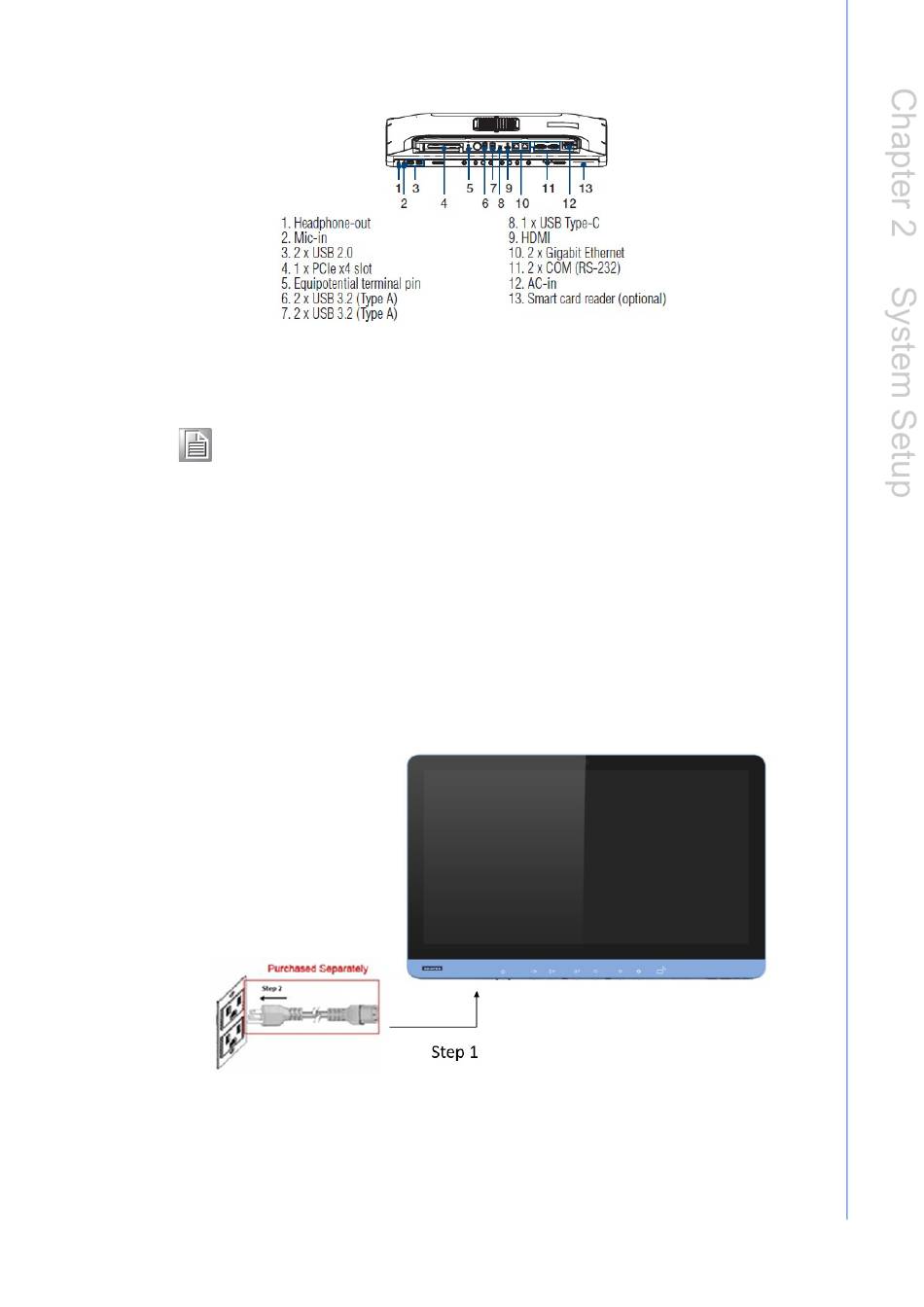

Figure 2.3 Rear View of Multiple I/O ports (AC-In Model)
Note! The equipotential terminal needs to link to the hospital ground/earth sys-
tem before system boot to protect the operator and system.
2.2

Installation Procedures

2.2.1

Connecting the Power Cord (DC Model)

The POC-624-02 series device can only be powered by a DC adapter (SINPRO
Model no.HPU101-107). Be sure to always handle the power cords by holding the
plug ends only.
Follow these procedures in order:
1. Connect the female end of the power cord to the AC adapter.
2. Connect the 3-pin male plug of the power cord to an electrical outlet.
Figure 2.4 Connecting the Power Cord
11 POC-624-02 Series User Manual
