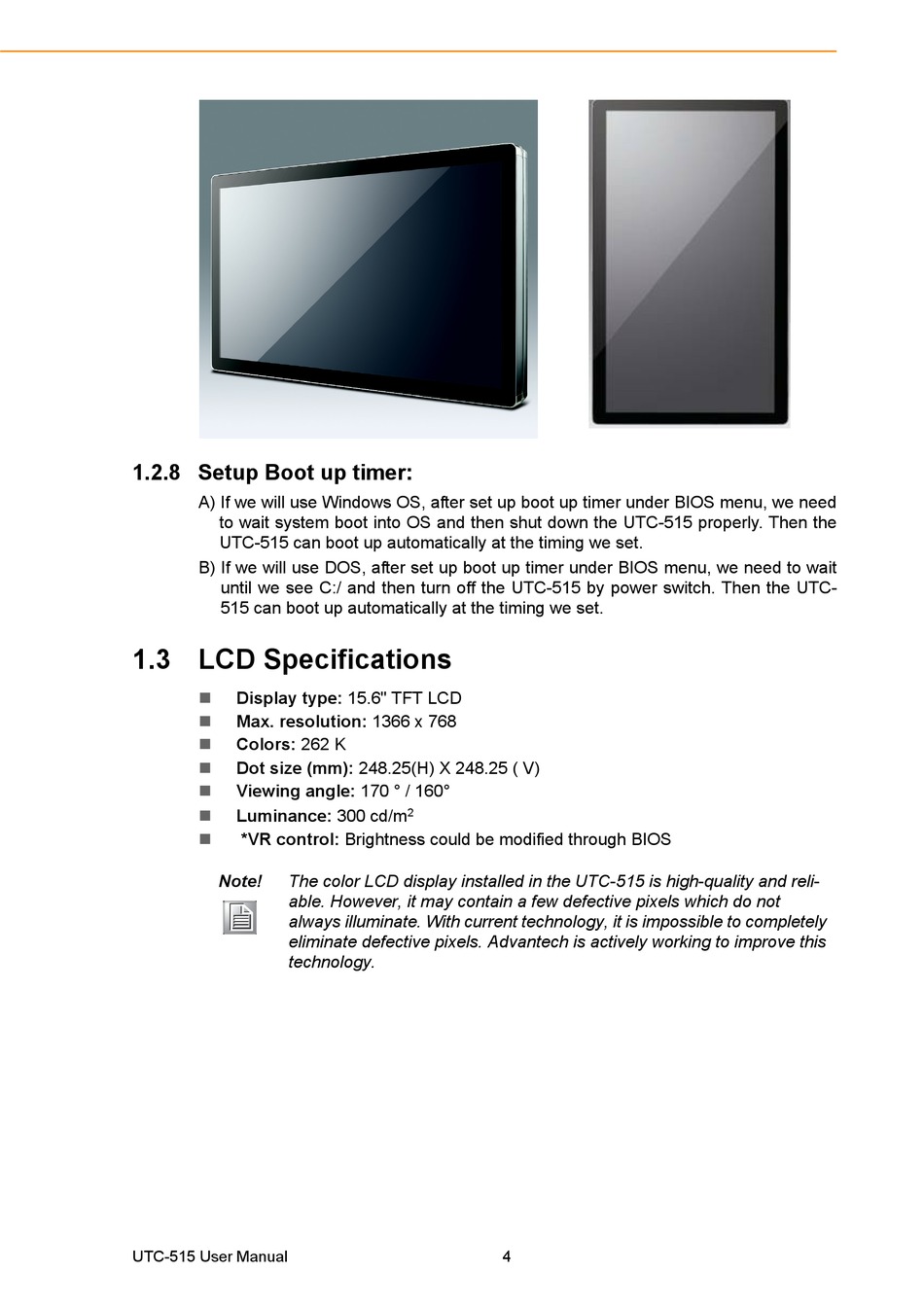

1.2.8 Setup Boot up timer:

A) If we will use Windows OS, after set up boot up timer under BIOS menu, we need
to wait system boot into OS and then shut down the UTC-515 properly. Then the
UTC-515 can boot up automatically at the timing we set.
B) If we will use DOS, after set up boot up timer under BIOS menu, we need to wait
until we see C:/ and then turn off the UTC-515 by power switch. Then the UTC-
515 can boot up automatically at the timing we set.

1.3 LCD Specifications

 Display type: 15.6" TFT LCD
 Max. resolution: 1366 x 768
 Colors: 262 K
 Dot size (mm): 248.25(H) X 248.25 ( V)
 Viewing angle: 170 ° / 160°
 Luminance: 300 cd/m
 *VR control: Brightness could be modified through BIOS
Note! The color LCD display installed in the UTC-515 is high-quality and reli-
able. However, it may contain a few defective pixels which do not
always illuminate. With current technology, it is impossible to completely
eliminate defective pixels. Advantech is actively working to improve this
technology.
