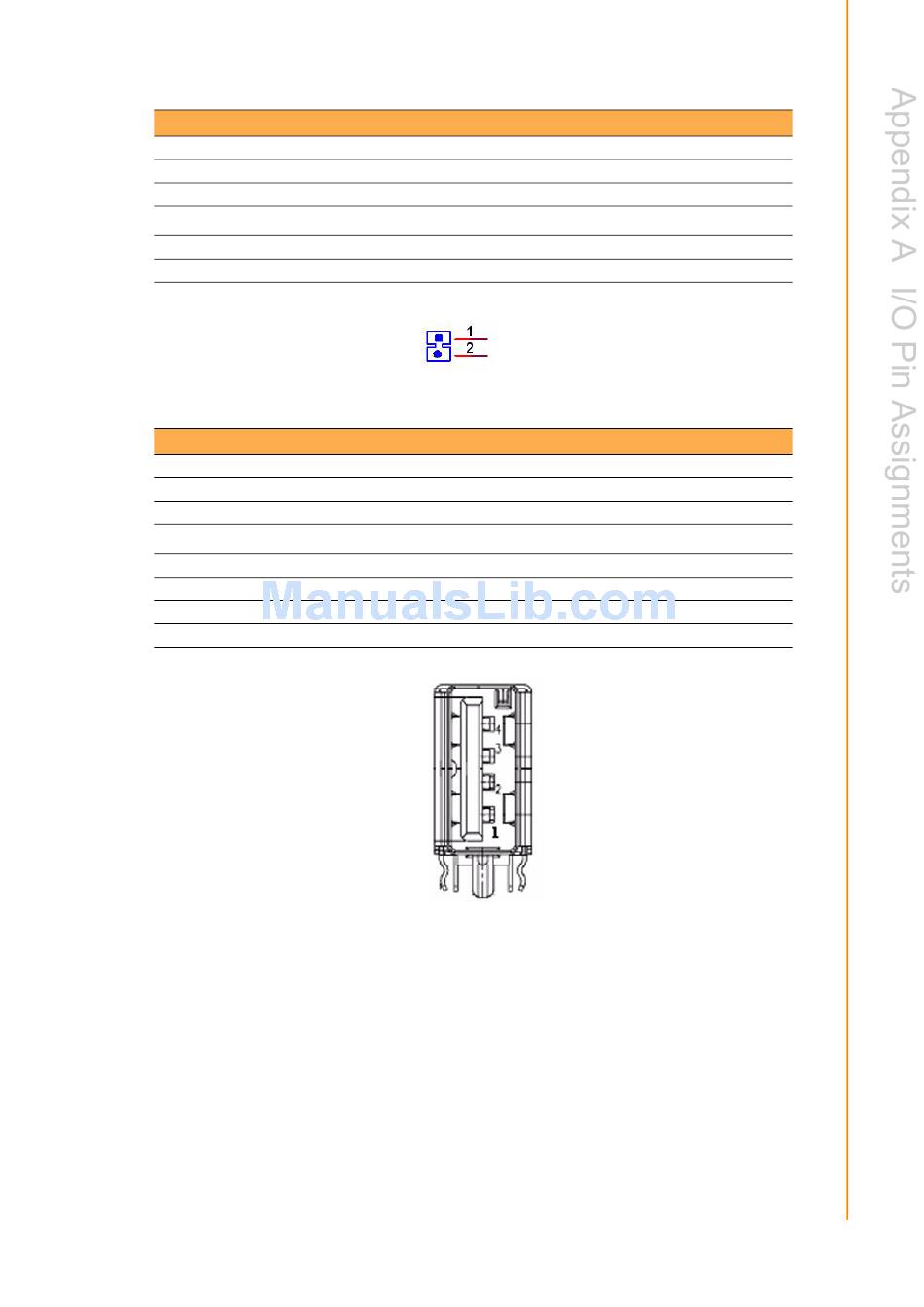

Table A.14: CN23: Reset
Part Number
1655302020
Footprint
WF_2P_79_BOX_R1_D
Description
WAFER BOX 2P 180D(M) 2.0mm W/Lock
Pin
Pin Name
1
RESET#
2
GND
Table A.15: CN24: External USB
Part Number
1654904105
Footprint
USB-V-4A
Description
USB CON. 4P 90D(F) DIP A TYPE RoHS
Pin
Pin Name
1
+5V
2
D-
3
D+
4
GND
37
UTC-515 User Manual
