User Manual UTC-115/120 15.6”/21.5” Ubiquitous Touch Computer...
Page 2
The documentation and the software included with this product are copyrighted 2021 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. also reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
Page 3
Product Warranty (2 years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
Page 4
Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before calling: ...
Page 5
70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Warning! Because of the risk of electric shock, do not remove the equipment cover during operation or when connected to a power outlet.
Page 6
Caution! To avoid short circuits and otherwise damaging the device, do not allow fluids to come in contact with the device. If fluids are accidentally spilled on the equipment, remove the affected unit from service as soon as pos- sible. Then contact qualified service personnel to verify that staff safety has not been compromised.
1.1 Introduction Advantech's UTC-100 series comprises 15.6” and 21.5” fanless, low-power, all-in- one touch panel computers that can be deployed as control room computing devices, production line signage displays, showroom interactive signage, self-service kiosks, and public service terminals to support diverse retail, hospitality, healthcare, educa- tion, entertainment, and information processing applications.

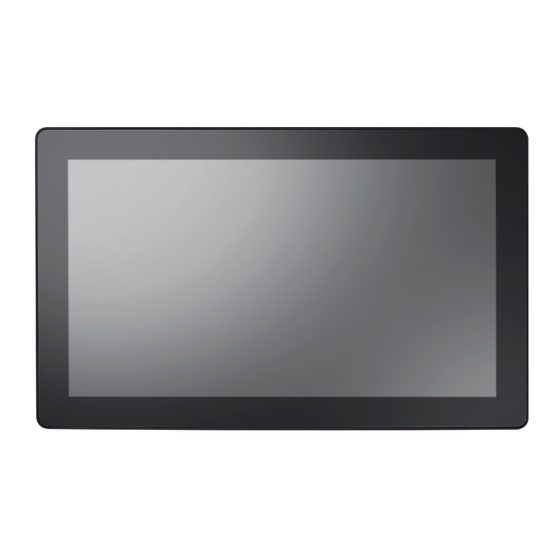

Before setting up the device, take a moment to familiarize yourself with the connector locations and functions, as shown in the images below. 2.1.1 Front View Figure 2.1 UTC-115/120 with Glass Panel and PCAP Touch 2.1.2 Rear View Note! For mounting, use only a VESA-compatible floor, stand.
Note! The relevant drivers and utilities are subject to change without notice. Download the latest drivers for the UTC-100 series products from the Advantech website at http://support.advantech.com or contact our appli- cation engineers for further assistance. UTC-100 User Manual...
3.1 Introduction The UTC-100 series devices are PC-based computers housed in an aluminum enclo- sure. To perform system maintenance or hardware upgrades, such as installing an SSD, DRAM simply remove the rear cover of the device. Warning! Only remove the rear cover after verifying that there is no power flowing within the device.
3.3 Replace the Side Rear Covers Align the tabs of the rear cover with the slots on the enclosure while placing the cover on the computer. Press down on the cover firmly until the tabs snap into place, locking the cover securely in position.
3.4 SATA SSD Installation UTC-100 systems feature a 2.5” SATA SSD bay reserved for customizable storage. To install a 2.5” SATA SSD, follow the steps outlined below. Remove the bottom and side rear cover. Loosen the affixing screws and remove the SSD bracket. Insert the SATA SSD into the SSD bracket and fasten it in place with screws.
3.5 Memory Module Installation Remove the bottom and side rear covers. Loosen the affixing screws and remove the VESA mount plate. Remove the 4 screws from the DRAM memory module heatsink. Turn the memory module over. Install the DRAM module in the SODIMM socket. Replace the DRAM memory module heatsink and tighten the screws to affix it in place.
Windows 10 & Android Dimensions 50.0 x 39.0 x 27.0 mm Operating -10°C to 40°C Temperature A.1.2 Packing List Description Quantity Barcode Reader Unit Barcode bracket A.1.3 Ordering information Description UTC-100P-B10E 2D Barcode Module for UTC-115 UTC-100P-B20E 2D Barcode Module for UTC-120...
96.0 x 17.3 x 26.5 mm Operating Temperature 0 ~ 40° C A.2.2 Packing List Description Quantity Magnetic Stripe Reader Unit Magnetic Stripe Reader bracket A.2.3 Ordering information Description UTC-100P-M10E MSR Module for UTC-115 UTC-100P-M20E MSR Module for UTC-120 UTC-100 User Manual...
Dimensions 101.4 x 22.2 x 11.5 mm Operating 0 ~ 40° C Temperature A.3.2 Packing List Description Quantity Camera Module Unit Camera Module Bracket A.3.3 Ordering information Description UTC-100P-C10E 5M Camera Module for UTC-115 UTC-100P-C20E 5M Camera Module for UTC-120...
101 x 37 x 25 mm Operating 0 ~ 40° C Temperature A.4.2 Packing List Description Quantity RFID Module Unit RFID Module Bracket A.4.3 Ordering information Description UTC-100P-R10E RFID Module for UTC-115 UTC-100P-R20E RFID Module for UTC-120 UTC-100 User Manual...
Page 29
101.0 x 34.9 x 33.8 mm Operating Temperature 0 ~ 40° C A.5.2 Packing List Description Quantity Smart Card reader Unit Smart Card reader Bracket A.5.3 Ordering information Description UTC-100P-S10E Smart Card reader for UTC-115 UTC-100P-S20E Smart Card reader for UTC-120...
Page 30
160.0 x 18.5 x 9.0 mm Operating 0 ~ 40° C Temperature A.6.2 Packing List Description Quantity LED Light Bar Unit LED Light Bar Bracket A.6.3 Ordering information Description UTC-100P-L10E LED Light Bar for UTC-115 UTC-100P-L20E LED Light Bar for UTC-120 UTC-100 User Manual...
